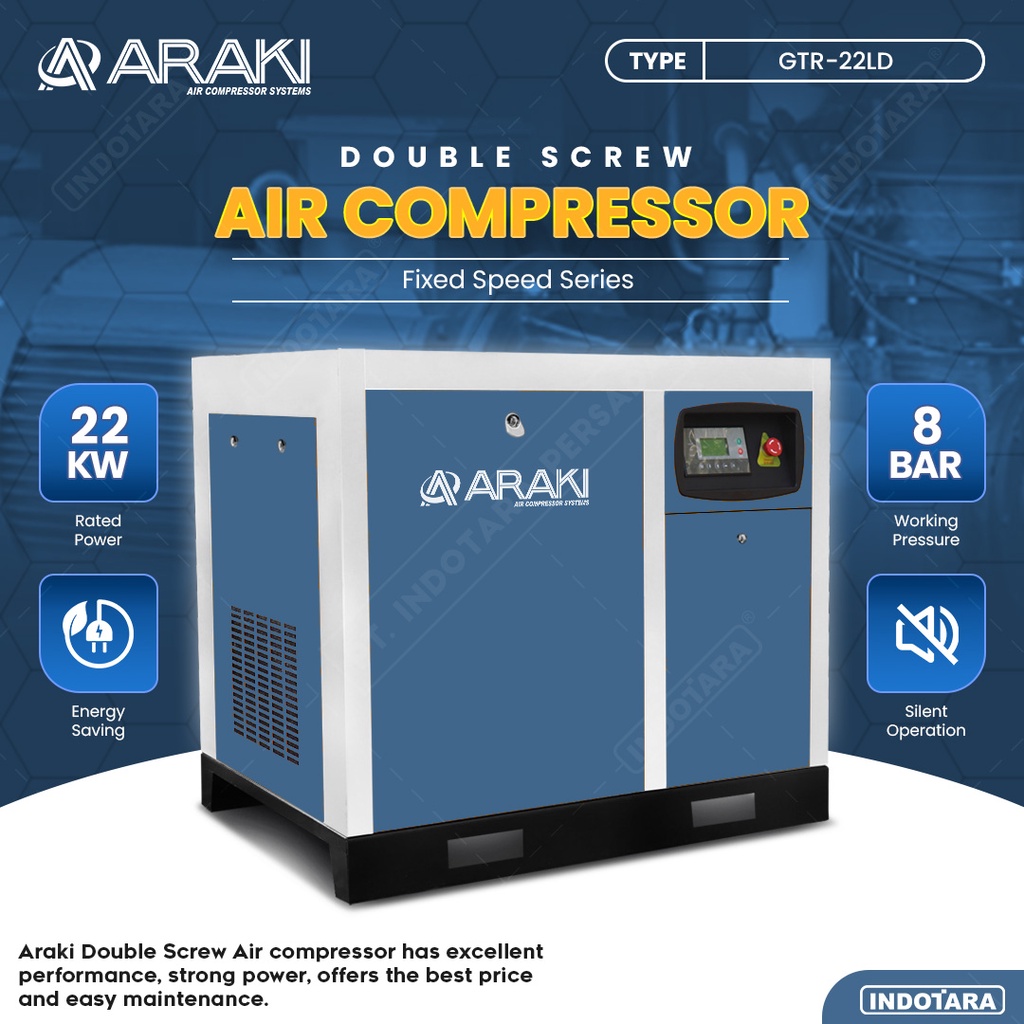

ARAKI Double Screw Compressor GTR22LD 8Bar

Detail ARAKI Double Screw Compressor GTR22LD 8Bar

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

ARAKI Heavy Duty Screw Compressor

Type : GTR22LD
Power : 22KW/30HP
Voltage (V) : 3Ph/380V/50Hz
Pressure : 8 Bar (0.8 Mpa)
Air Delivery : 113 Cfm (3.2 m3/min)
Motor Speed : 2970 Rpm
Air Supply Oil Content : ≤ 3 PPM
Outlet Pipe Size (Ø mm) : 1"
Transmission Model : Direct Driven
Lubrication System : High Pressure Filtered Oil
Oil Cooling Sistem : Radiator + Cooling Fan
Cooling Fan Power : 550W
Controller : Smart Microcontroller + LCD Display
Safety Valve : Ready
Startup Model : Y - Δ startup
Air Supply Temperature : ≤ Ambient Temperature +15℃
Noise : 72 [dB(A)]±3
Dimension (LxWxH)mm : 1300x900x1160 mm
Weight (Kg) : 630 Kg

Feature :
- Heavy Duty Polyurethane Coating by JOTUN, Norway
- Soundproofing by INOAC, Japan
- Electric System built by CE Electric Regulation
- Full side open cabinet structure
- Advanced Monitoring and Smart Control
- 316 Stainless seamless tubing for non corrosion and durability
- Continous working duty cycle
- Easy maintenance & low operating cost
- 3 Years Warranty

Dapatkan produk-produk berkualitas tinggi dengan harga yang ekonomis.
Hati-hati barang tiruan, Produk yang asli hanya ada di PT. Indotara Persada.
