APDS-9930 Non-contact detection of proximity and gesture and posture RGB sensor

Detail APDS-9930 Non-contact detection of proximity and gesture and posture RGB sensor

Hi #RekanEasyWare ...
EasyWare Part#: EP000670

The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and plays detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly. The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone. In addition, an internal state machine provides the ability to put the device into a low power mode in between ALS and proximity measurements providing very low average power consumption. The ALS provides a photopic response to light intensity in very low light conditions or behind a dark faceplate.

Spesifications :
- Working voltage: 2.8-3.8V;
- ALS, IR LED and Proximity Detector in an Optical Module;
- Ambient Light Sensing (ALS);
- Approximates Human Eye Response;
- Programmable Interrupt Function with Upper and Lower Threshold;
- Up to 16-Bit Resolution;
- High Sensitivity Operates Behind Darkened Glass;
- Low Lux Performance at 0.01 lux;
- Proximity Detection;
- Fully Calibrated to 100 mm Detection;
- Integrated IR LED and Synchronous LED Driver;
- Programmable Wait Timer;
- Programmable from 2.7 ms to > 8 sec;
- I2C Interface Compatible;
- Up to 400 kHz (I2C Fast-mode);
- Dedicated Interrupt Pin;
- Sleep Mode Power - 2.2 uA Typical

Package :
- 1x APDS-9930 RGB Infrared Gesture Sensor

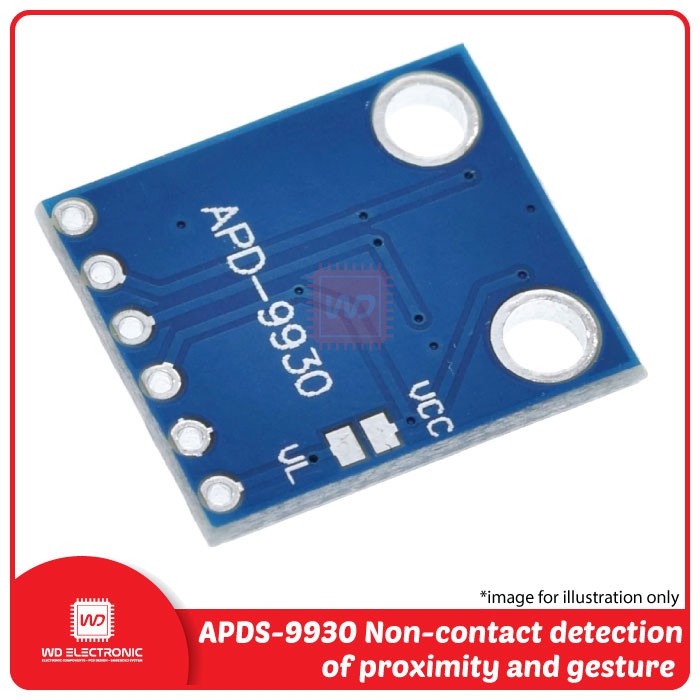

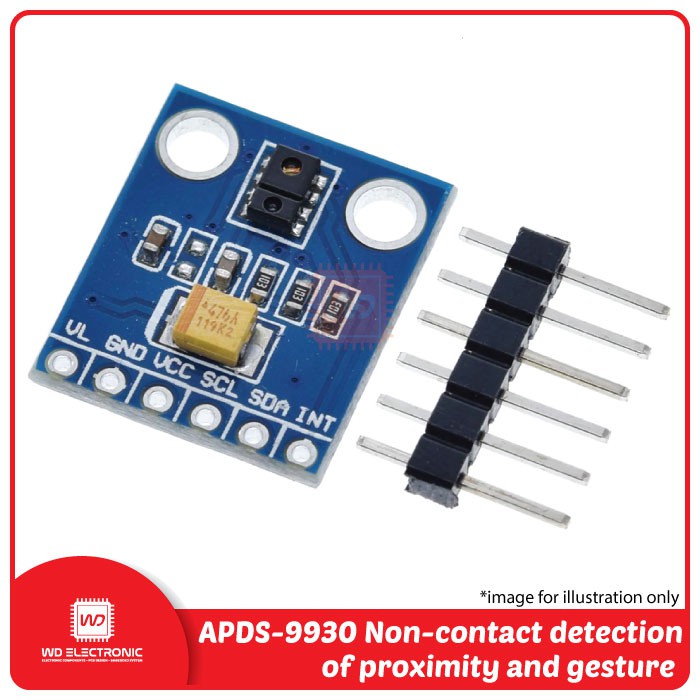

Gambar produk
