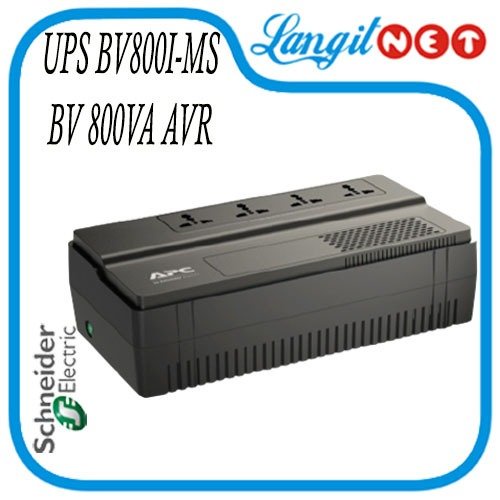

APC EASY UPS BV800I MS BV 800VA AVR Universal Outlet 230V

Detail APC EASY UPS BV800I MS BV 800VA AVR Universal Outlet 230V

VIDEO PRODUK : youtube.com/watch?v=Im725vwnjTw

Technical Specifications
Max Configurable Power (Watts)
450Watts /800VA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Unsynchronised
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum
Input

Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
170 - 280V
Number of Power Cords
1
Batteries & Runtime

Battery type
Lead-acid battery
Typical recharge time
8hour(s)
Nominal Battery Voltage
12 V
Expected Battery Life (years)
3 - 5
Efficiency
View Efficiency Graph
Communications & Management

Control panel
LED Status display with on line : on battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering

Surge energy rating
156Joules
Physical

Maximum Height
93MM, 9.25CM
Maximum Width
161MM, 16.05CM
Maximum Depth
305MM, 30.5CM
Net Weight
5.3KG
Shipping weight
5.6KG
Shipping Height
237MM, 23.7CM
Shipping Width
143MM, 14.3CM
Shipping Depth
373MM, 37.3CM
Color
Black
SCC Codes
10731304338373
Environmental

Operating Temperature
0 - 40 C
Operating Relative Humidity
0 - 90 %
Operating Elevation
0 - 2032.1meters
Storage Temperature
-20 - 50 C
Storage Relative Humidity
0 - 90 %
Storage Elevation
0 - 15240meters
Audible noise at 1 meter from surface of unit
40.0dBA
Protection Class
IP20
Conformance

Approvals
CE

RoHS
Compliant
