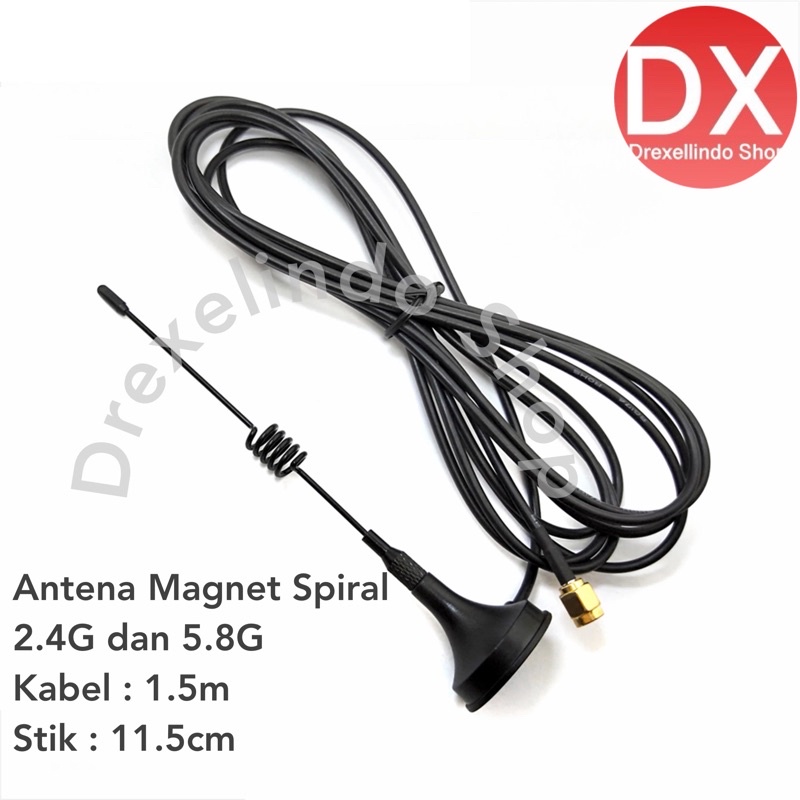

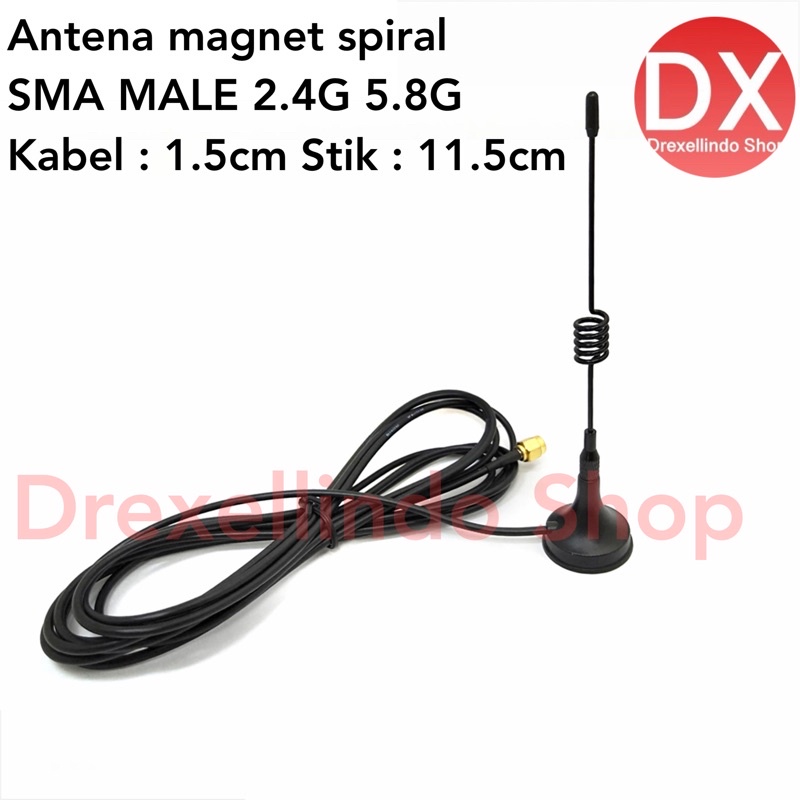

Antena Spiral magnet kabel 1.5 m SMA MALE 2.4G dan 5.8G

Detail Antena Spiral magnet kabel 1.5 m SMA MALE 2.4G dan 5.8G

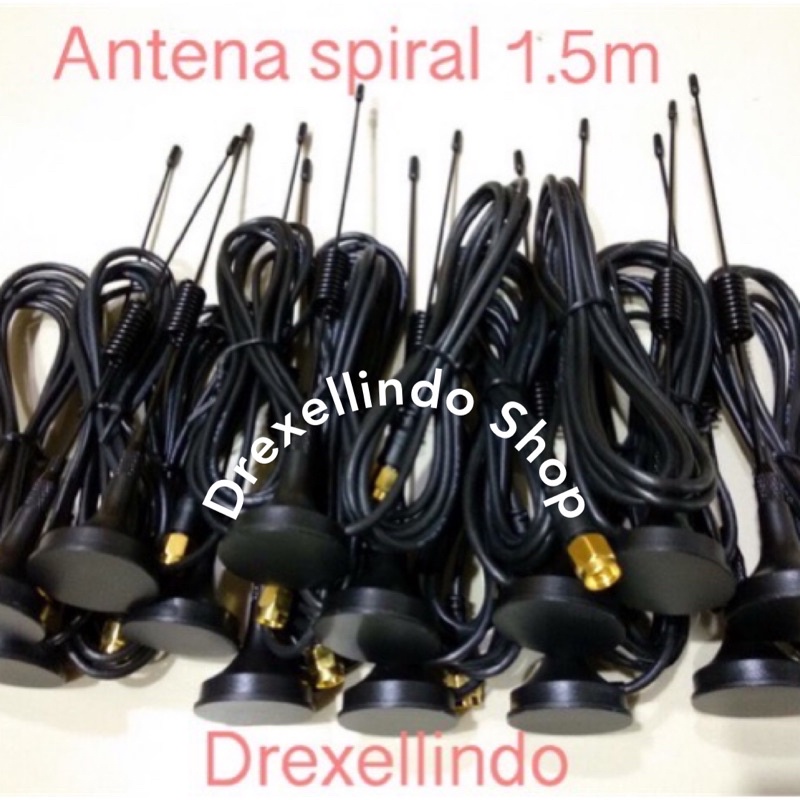

Antena spiral :

Panjang kabel 1.5 m

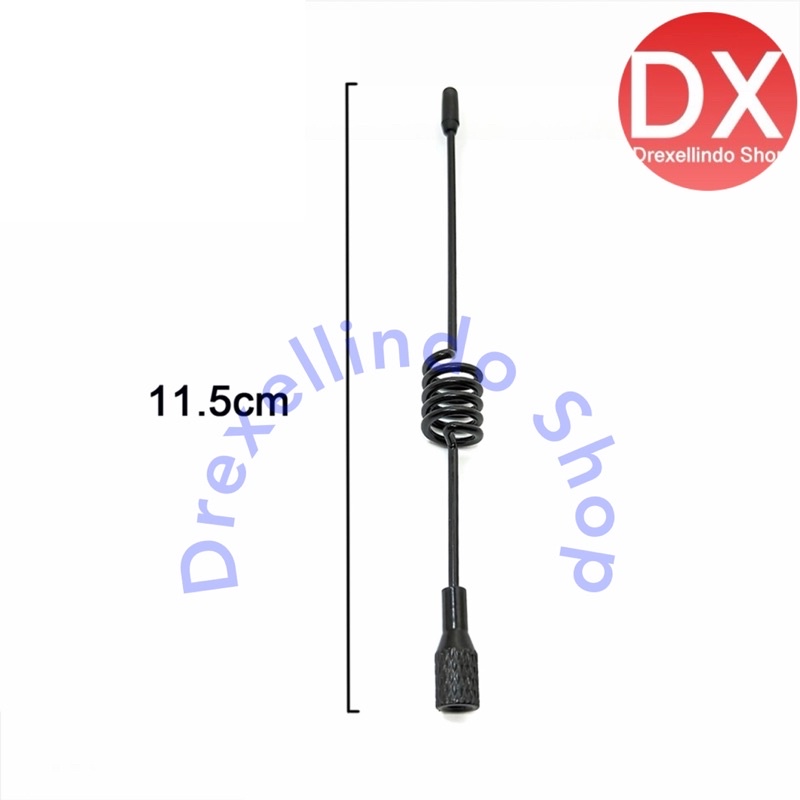

Panjang stik : 11.5cm
Ada magnet di kaki stik

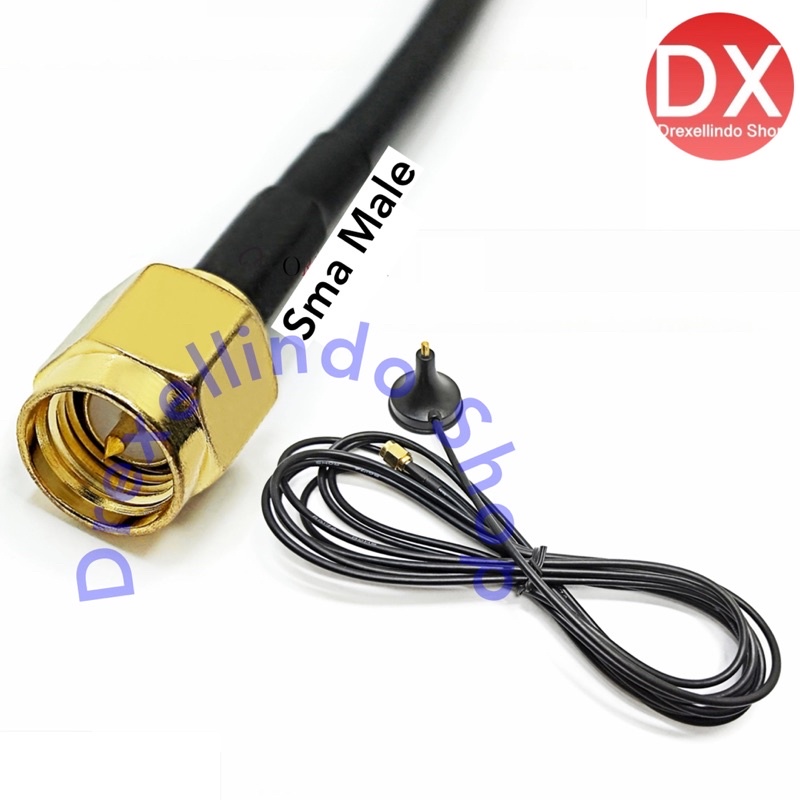

Conector SMA Male

Cocok untuk :
Modem wavecom satuan
Modem pool
Router dll

SMA
Temperature Range
-55~+155°C (PE Cable -40~+85°C)
Vibration
98m/S2 (10~2000Hz), 10g
Impedance
50Ω
Frequency Range
DC-12.4GHz(semi-rigid cable DC-18 GHz)
Insertion Loss
≤ 0.15dB/6GHz
Withstanding Voltage
1000V r.m.s at sea level
Working Voltage
335Vr.m.s at sea level
Insulation Resistance
≥ 5000 MΩ
Durability
≥ 500(cycles)
Contact resistance:
Center Contact ≤ 3mΩ
Outer Contact ≤ 2.5mΩ
Voltage Standing Wave Ratio:
Straight
flex cable ≤ 1.10+0.02f
Semi-rigid cable ≤ 1.07+0.018f
Right angle
flex cable ≤ 1.20+0.03f
Semi-rigid cable ≤ 1.17+0.02f
RG174 Electrical Characteristics
Capacitance (Pf/M)
101.05
Impedance (Ohm)
50
Velocity(%)
66
Shielding Effectiveness (>dB)
10
Max. Oper. Voltage (VMS)
1500
Max. Oper. Frequency (MHz)
1000
Operating Temp. (℃)
-20 to 80
