ANENG Multimeter LCD Digital Pengukur Tegangan / Arus / Resistansi / NCV

Detail ANENG Multimeter LCD Digital Pengukur Tegangan / Arus / Resistansi / NCV

Features:

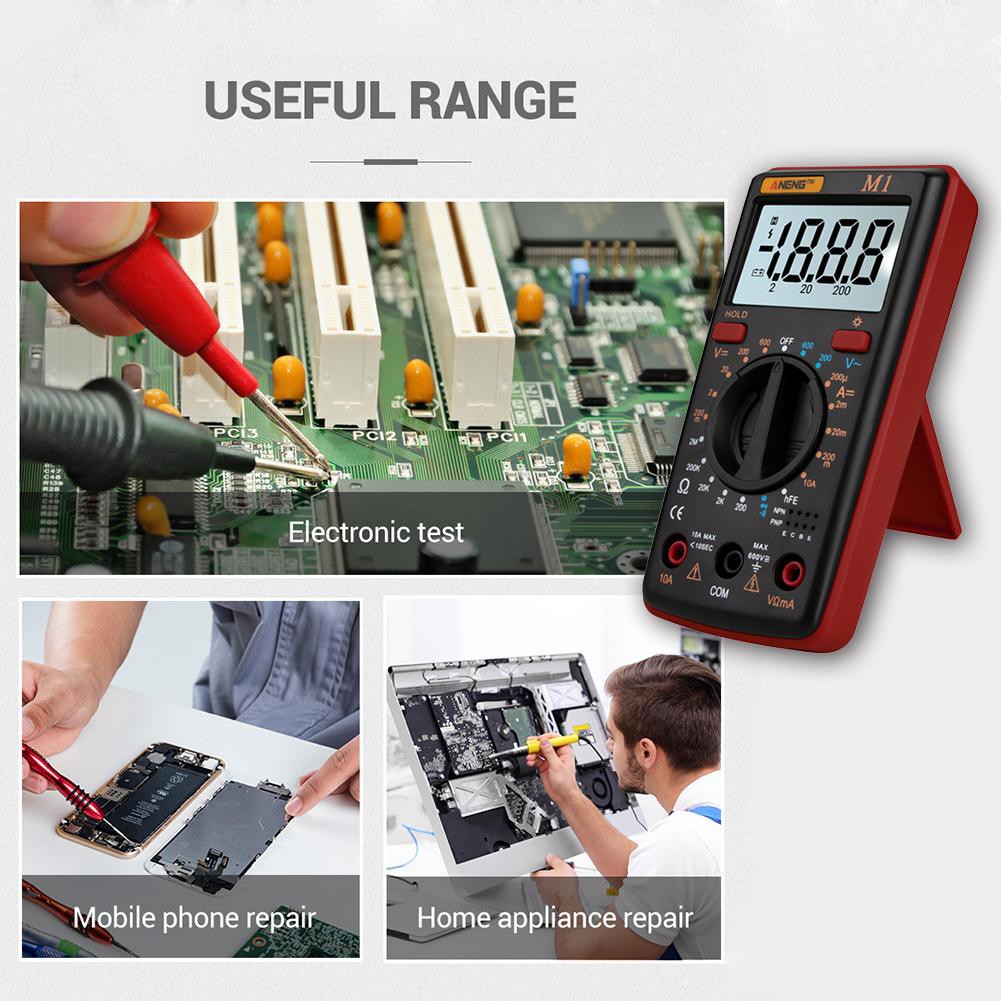

This meter is a portable, LCD - driven digital multimeter. It has the functions of measuring dc current, ac voltage, dc voltage, resistance and diode, and also has the function of reading maintenance and night balight. It is an ideal tool for electricians, technicians, maintenance workers and amateurs.

Product description:
1. Easy to use. This product is battery - driven automatic range digital multimeter with true RMS.

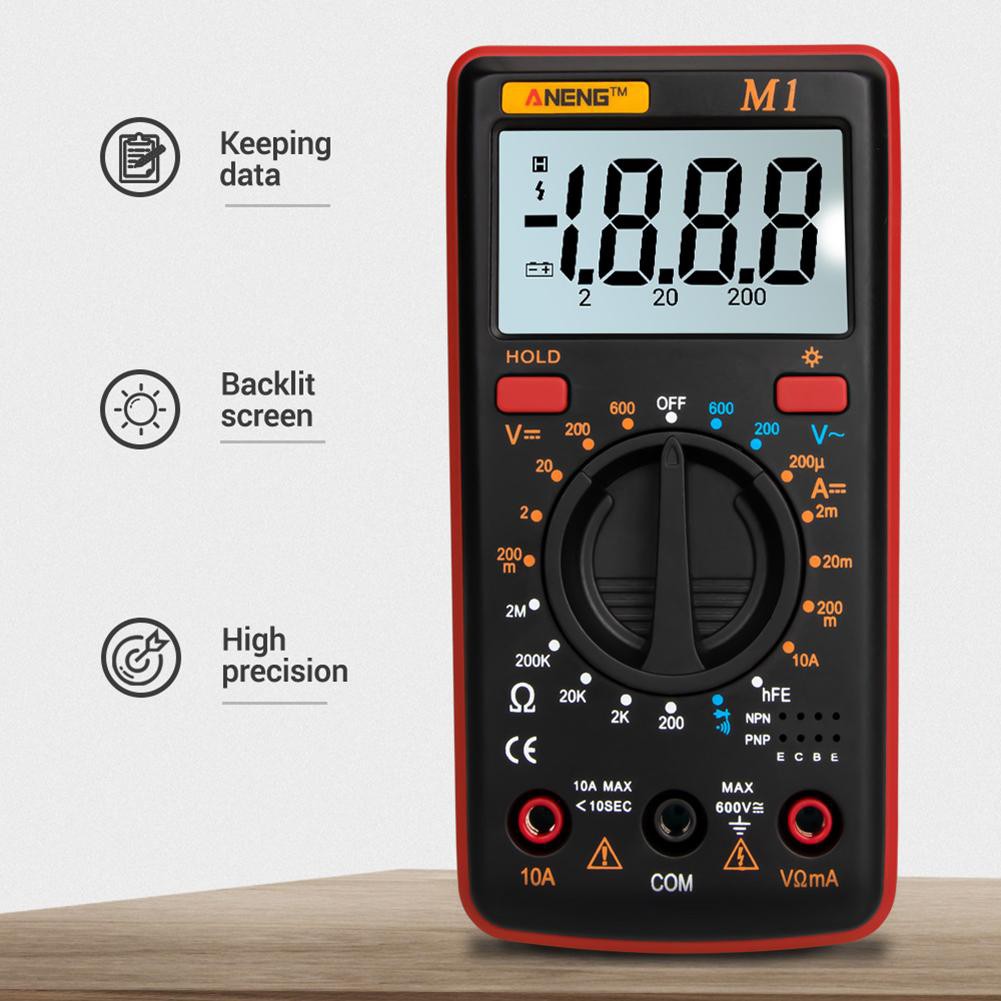

2. Digital display. LCD display, balight display, clear reading.
3. Multimeter. Voltage, dc current, resistance, on - off, diode, non - contact voltage detection can be used.
4.Automatic shutdown. When the multimeter is out of use for 15 minutes, it will shut down automatically.
5. LED lighting. LED beads for night lighting.

Special note: digital multimeter in millivolt gear, nuical runout is correct phenomenon.
The mV file of multimeter shows non-zero phenomenon, mainly including the following situations:
1. Excessive changes in ambient temperature and humidity in the air lead to non-return to zero;
2. Strong electric field or magnetic field interference.
3. Fault of multimeter itself.
When there is not ba to zero phenomenon, multimeter can be as follows: the multimeter to mV, corresponding input hole into the red and bla pens and line, the red and bla pens and short line, the multimeter show "0000" is able to judge multimeter not ba to zero phenomenon is due to environmental factors interference, not ba to zero, the condition does not affect the use of the multimeter, but sested that eliminate environmental interference factors, lest affect accuracy of measurement errors of measurement results.

Specifications:

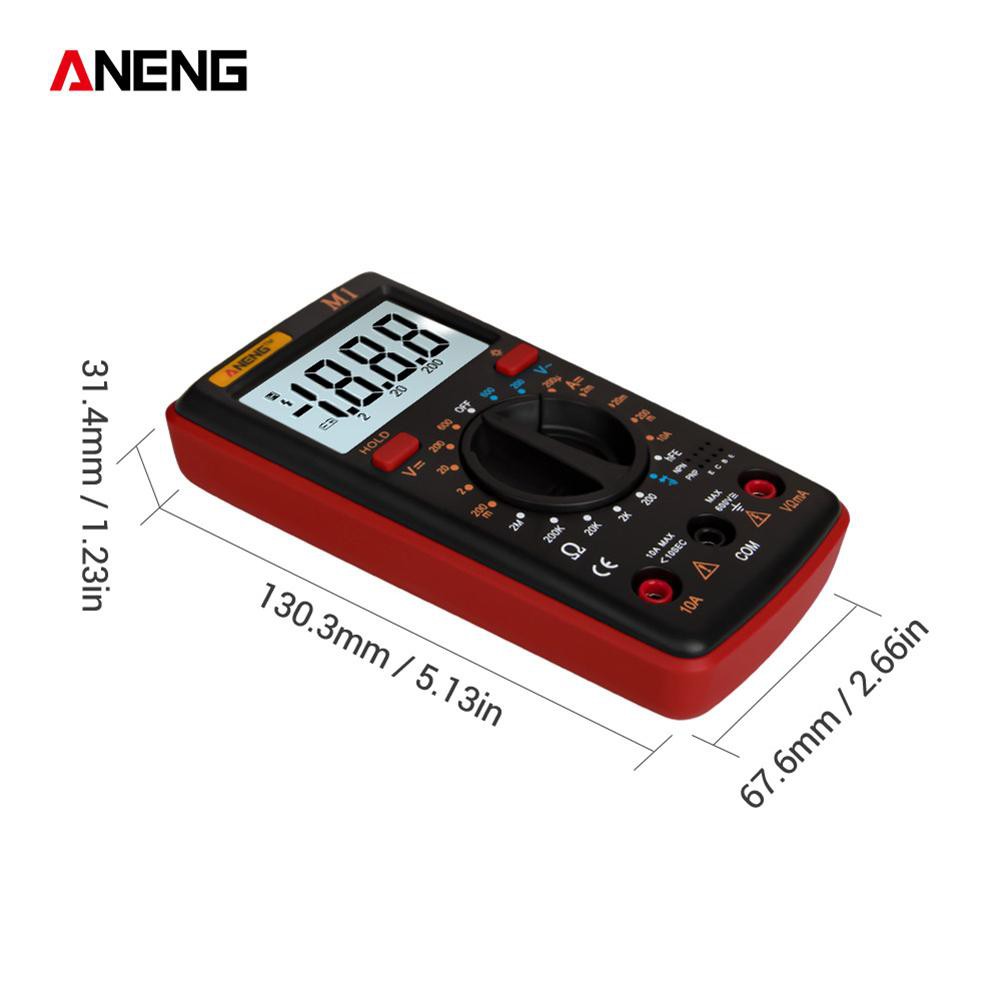

Size: 130.3*67.6*31.4mm/5.13*2.66*1.24"

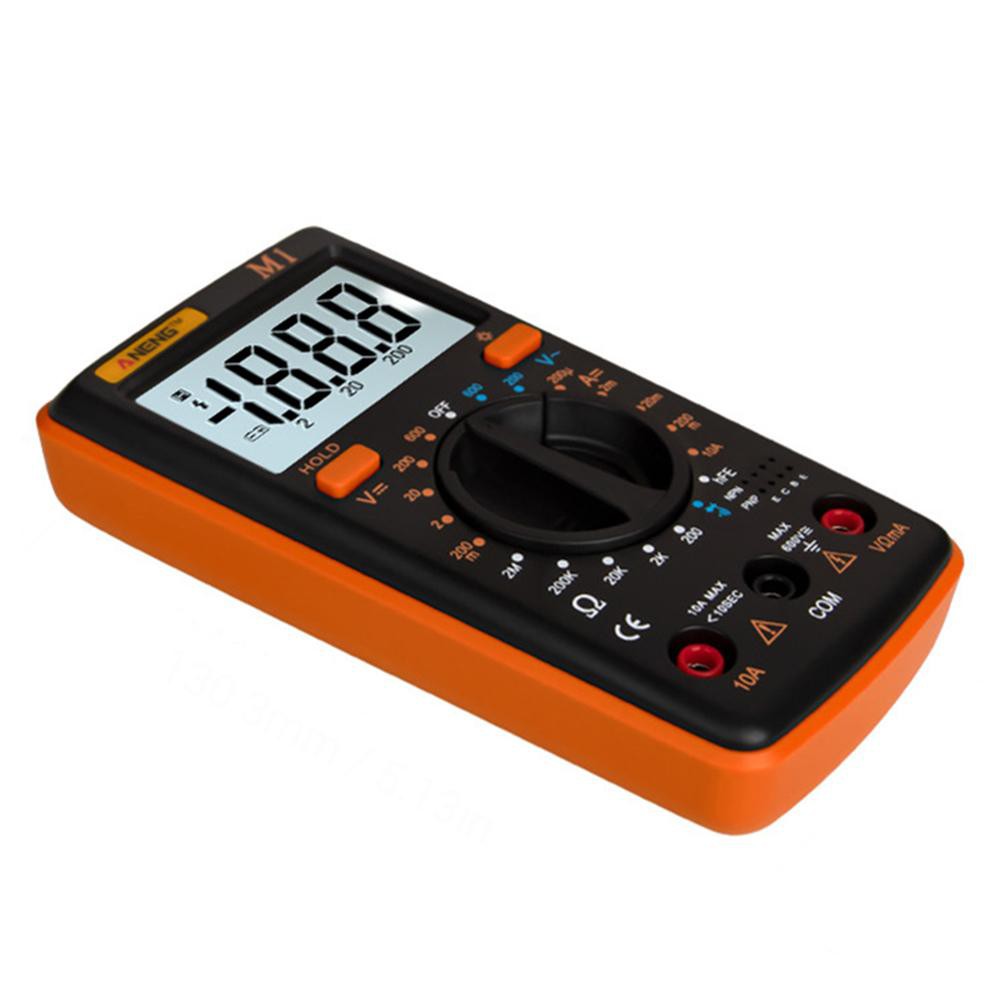

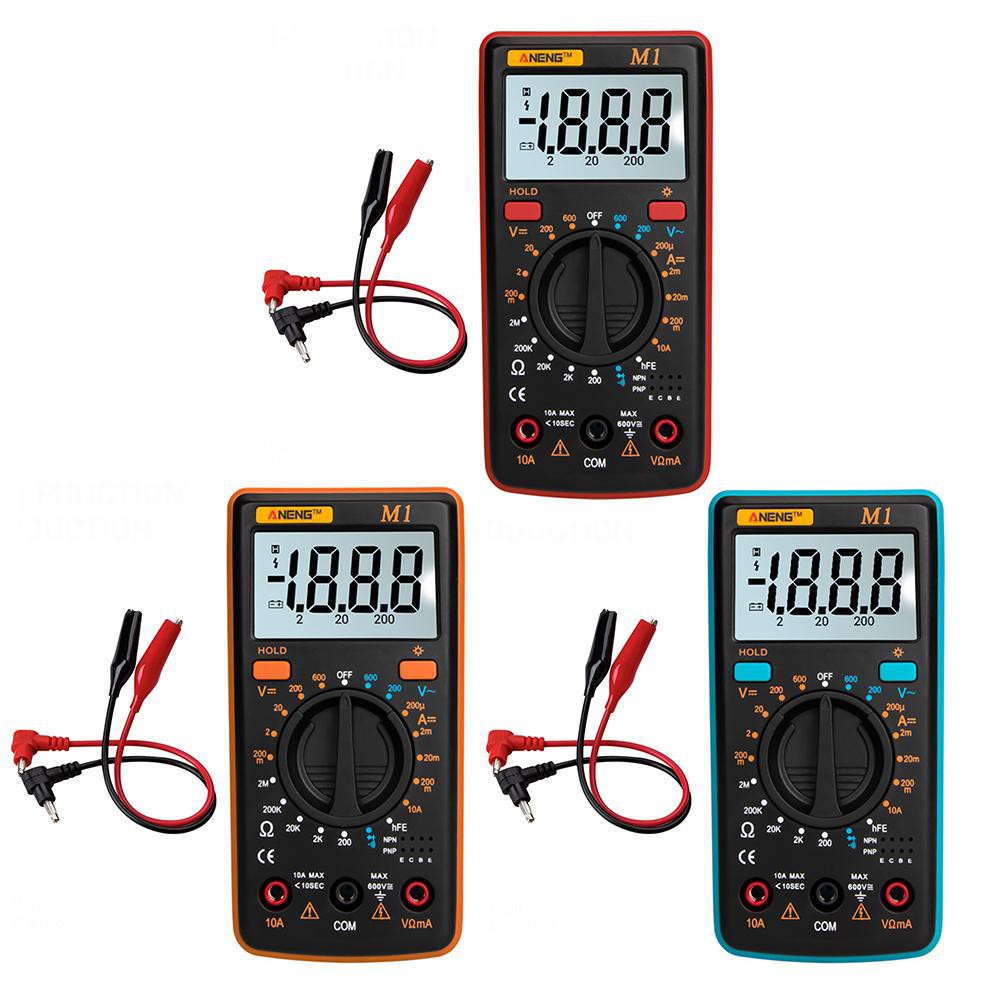

Color:Red/Orange/Blue

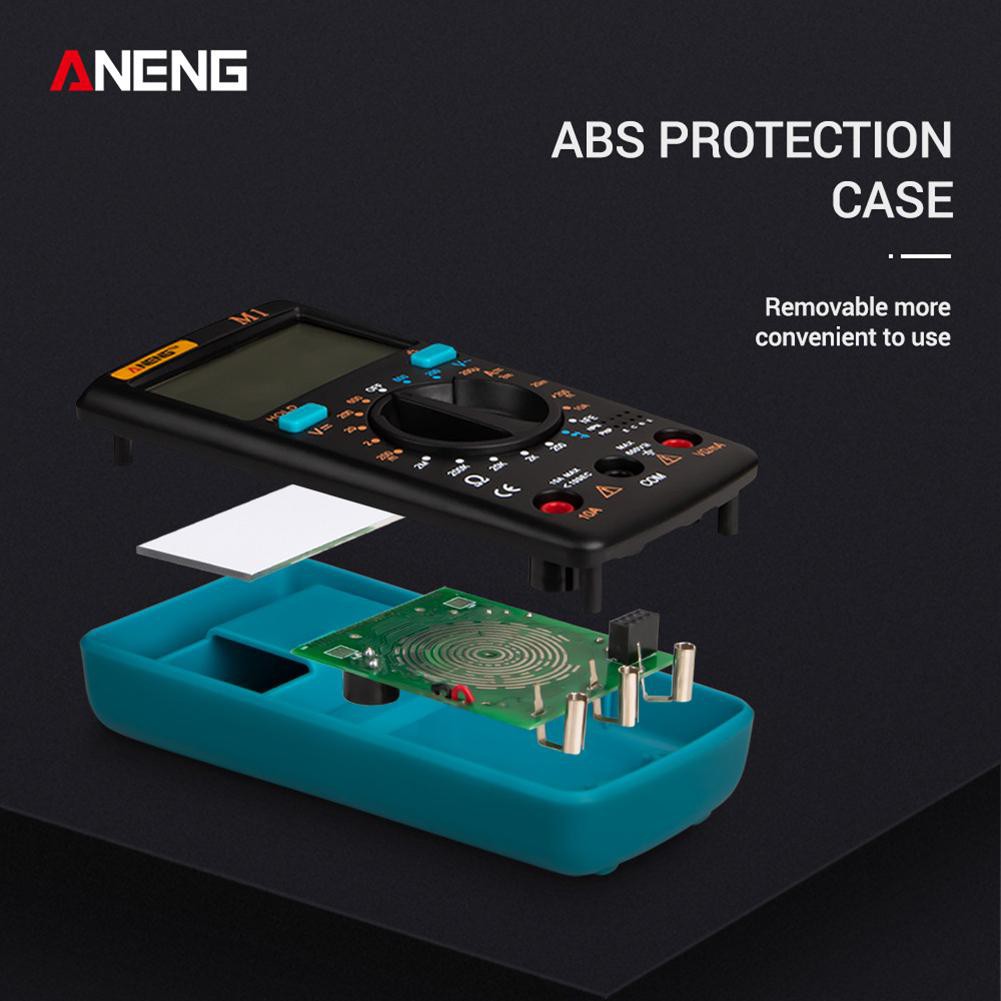

Material: ABS/PVC
Weight: 81g
Range: automatic/manual
Sampling speed: 3 times/second
Power supply voltage: 9v (6F22 model) (batteries are not included)
Working environment temperature: 0-40℃; Humidity < 75%
Storage environment temperature: -20~60℃ : humidity <80%
Measuring range:
Dc voltage: 200mV/2V/20V/200V/600V
Ac voltage: 200v / 600v
Dc current: 200uA/2mA/20mA/200mA/10A

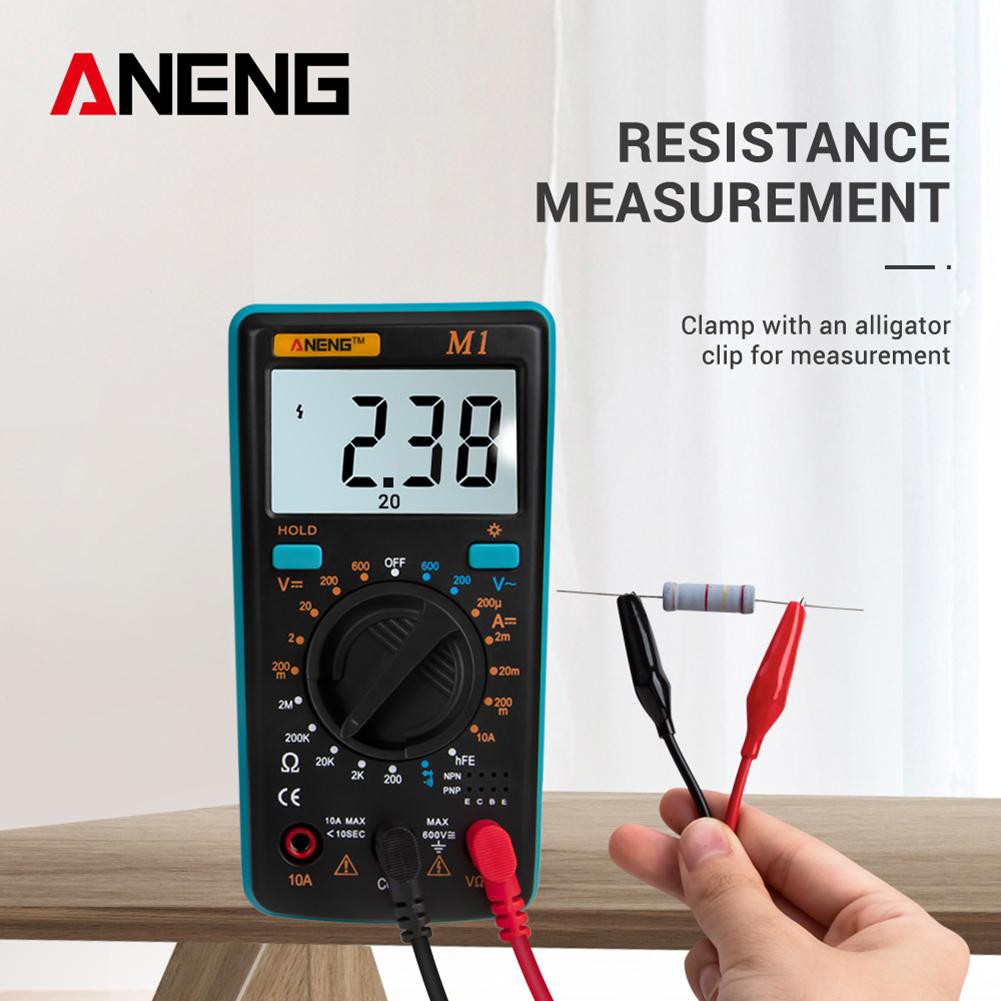

Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ

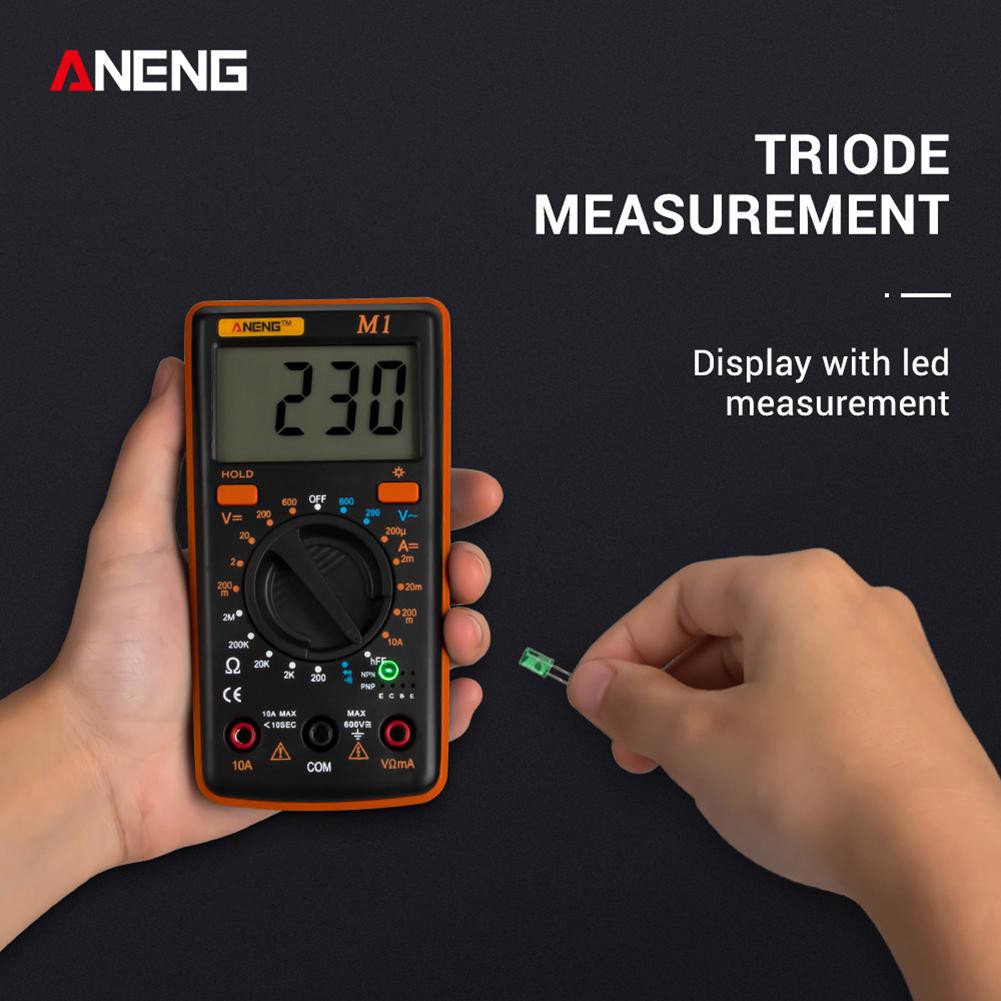

HFE: measurable NPN or PNP transistor; HFE parameters display range: 0~1000B
Display diode forward voltage drop
When tested the line between the two pens and resistance value is less than 50 Ω, instrument alarm audible.

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3cm measuring deviation due to manual measurement.
