ANENG A3004 Pen Type Digital Multimeter LCD 4000 Counts Auto Range Tester

Detail ANENG A3004 Pen Type Digital Multimeter LCD 4000 Counts Auto Range Tester

Video perkenalan produk ANENG A3004 Pen Type Digital Multimeter LCD 4000 Counts Auto Range Tester. Sumber: Shopee.

ANENG A3004 Digital Multimeter Pen Type Backlight LCD 4000 Counts Auto Range Tester AC DC Ammeter Voltage Resistance Capacitance Diode Continuity Meter
Feature:

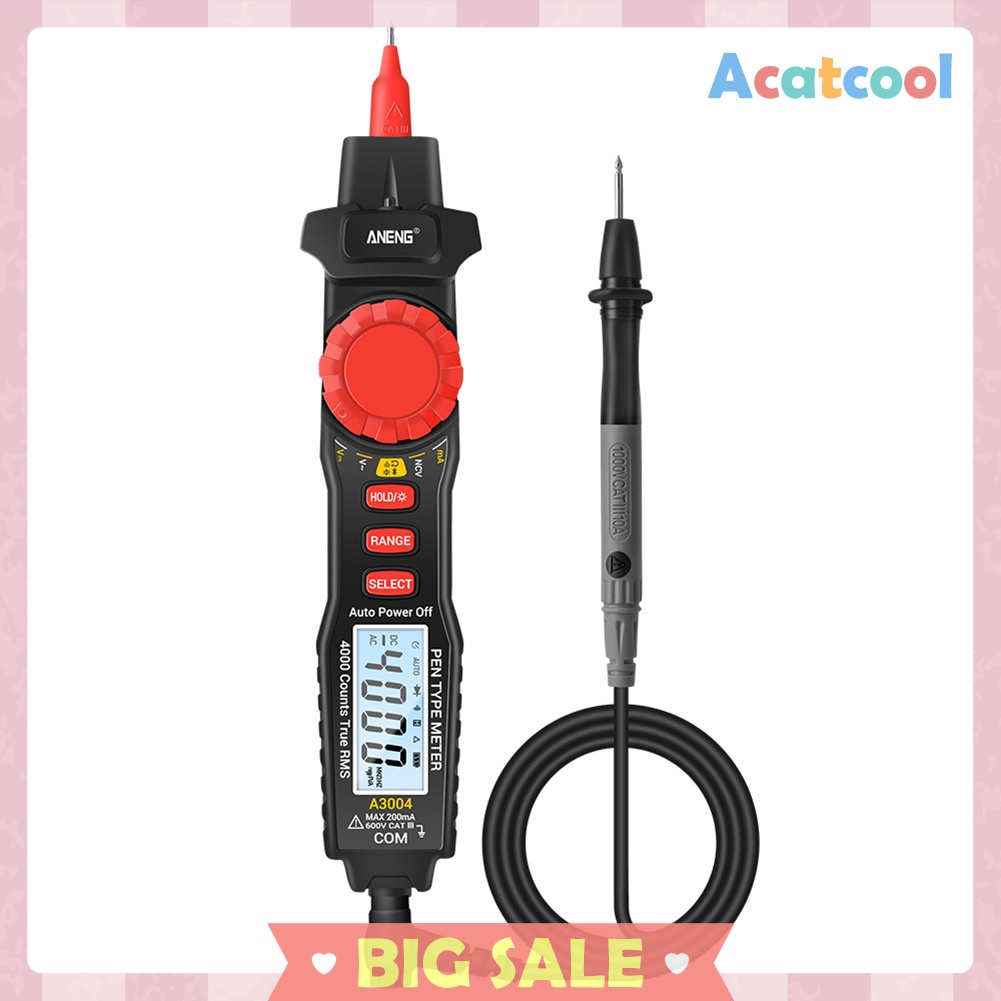

1. This is a pen type multimeter with high reliability, high precision and easy to carry.
2. Multi-function: can accurately measure AC and DC voltage, current, capacitance, and resistance.
3. LCD screen with backlight, convenient to read data in the dark.

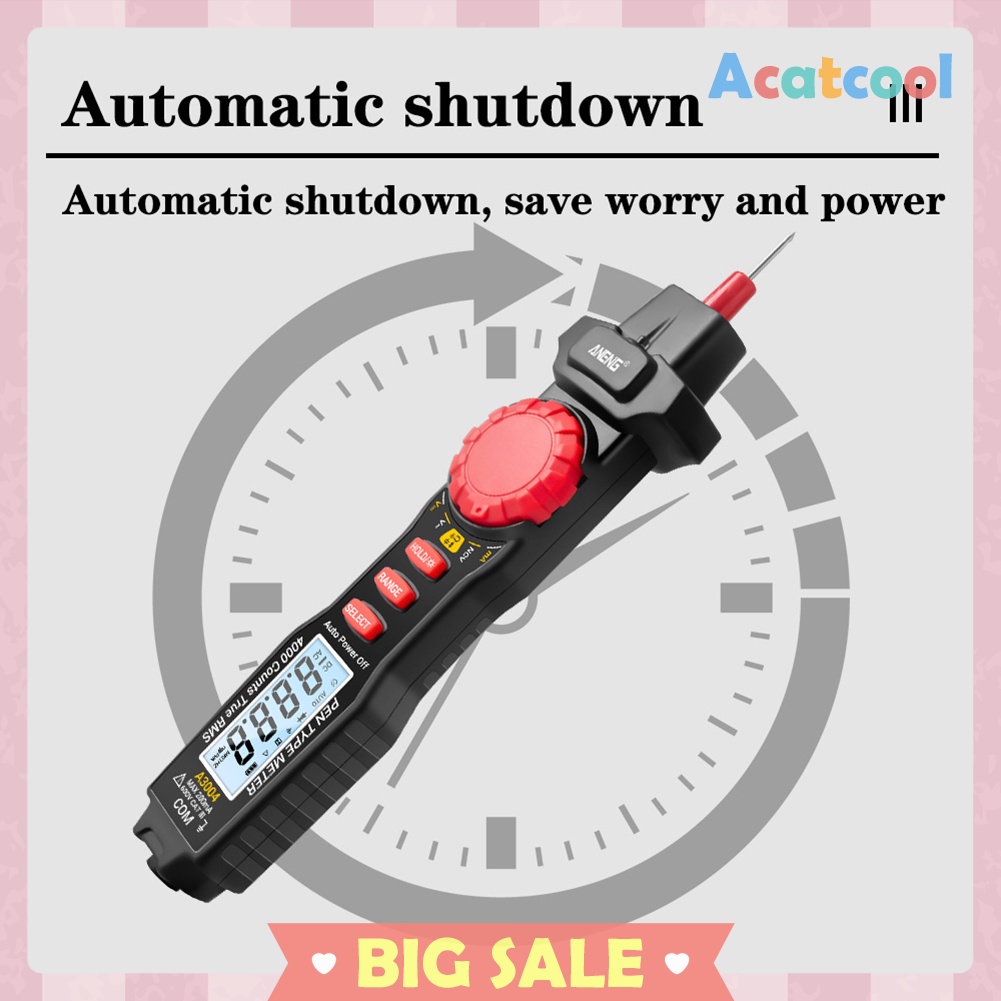

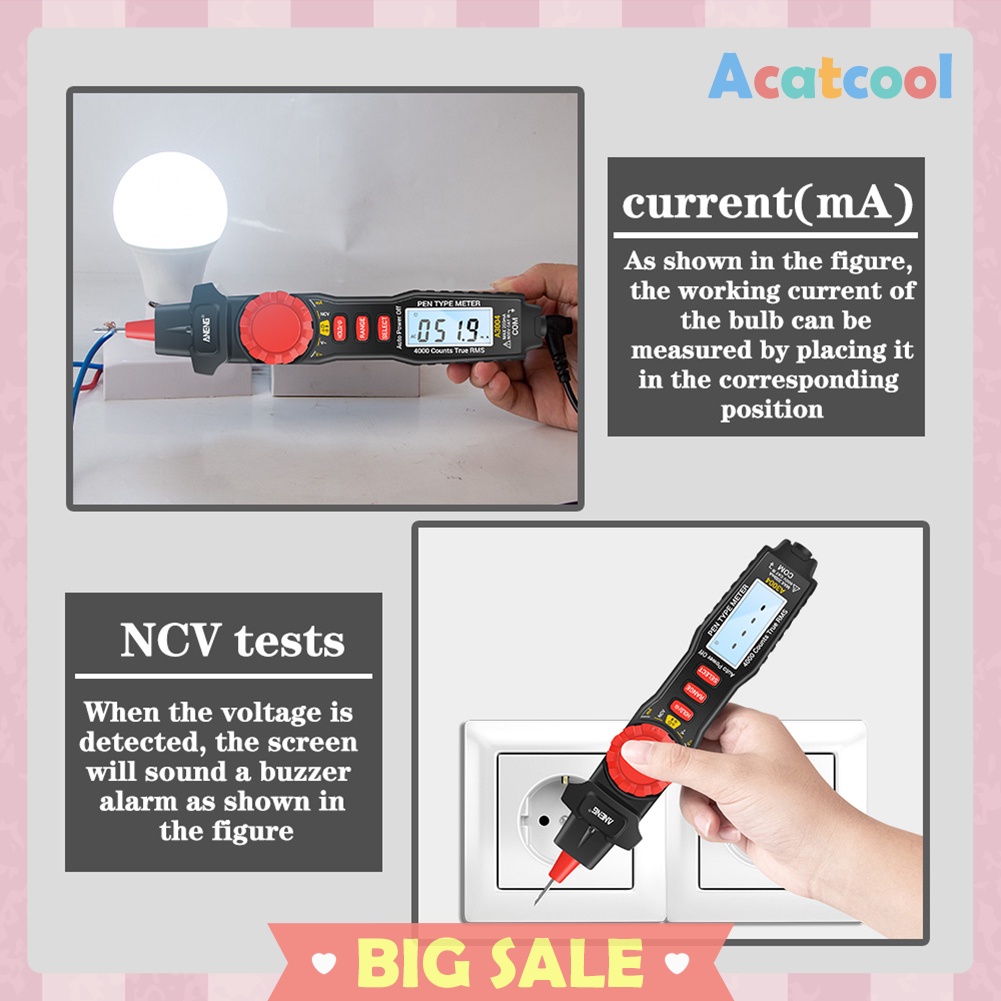

4. Automatic range, automatic shutdown, diode test, non-contact voltage detection.
5. Wide range of uses: It is an ideal tool for laboratories, factories and families.

Specification:
Material: ABS
Size: 225.4*46.3*28.7mm/8.87*1.82*1.13"
Colour: Black
Power supply: 2*AAA batteries (not included)
Buzzer function: yes
LCD maximum display: yes
Automatic shutdown: yes
Maximum display: 4000 counts

Range            accuracy
DC voltage    400mV ± (0.8% + 5)
                    4V/40V/400V ± (0.8% + 3)
                    600V ±(1%+3)
AC voltage    4V/40V/400V ± (1% + 3)
                    600V ±(1.2%+5)
DC current    40mA/200mA ±(1%+3)
AC current    40mA/200mA ± (1.2% + 5)
Capacitance  4nF/40nF/400nF/4uF/40uF/400uF ± (3% + 5)
                   4mF ±(5%+10)
Resistance     400Ω/4kΩ/40kΩ/400kΩ/4MΩ ± (1.0% + 5)
                    40MΩ ± (1.2% + 8)

Note:
1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.


Included:

1 X Digital Multimeter
1 X Probe
1 X Manual
