►► ANCEL PB100 Electrical System Circuit Tester Functions:

1. Power injection, measuring, ground testing, polarity checking, continuity testing and component activation.
2. Read the AVO meter, voltage, current, and resistance.
3. Energize the electrical components, such as the cooling fan, relay etc.
4. Activate the components
5. Determine the positive, negative and open circuit.
6. Test the bad ground contacts, follow and locate short circuits without wasting the fuse.
7. Test the continuity of the power switch, relay and diode.
8. Protect the tool from overload.
9. Allow you to work in the dark area by using the built-in head light.
10. Test along the vehicle by the long cable.

►► Specifications

1. Display: TFT color display (160 x 128 dpi)
2. Operating Temperature: 0 to 60C (32 to 140F)
3. External Power: 12.0 or 24.0 V power provided via vehicle battery
4. DC voltage range: 0-65V +1digit
5. Resistance range: 0-100 kΩ
6. Frequency response of tone pass through 0Hz to 10Khz.
7. Circuit Breaker
8. Rating current: 1-10 Amp
9. Testing Standard:
100% current: Hold > 1 hour
150% current: trip in one hour
200% current: trip in 3-30 seconds.
300% current: trip in 0.5-4.0 seconds.

►► ANCEL PB100 Product Function:

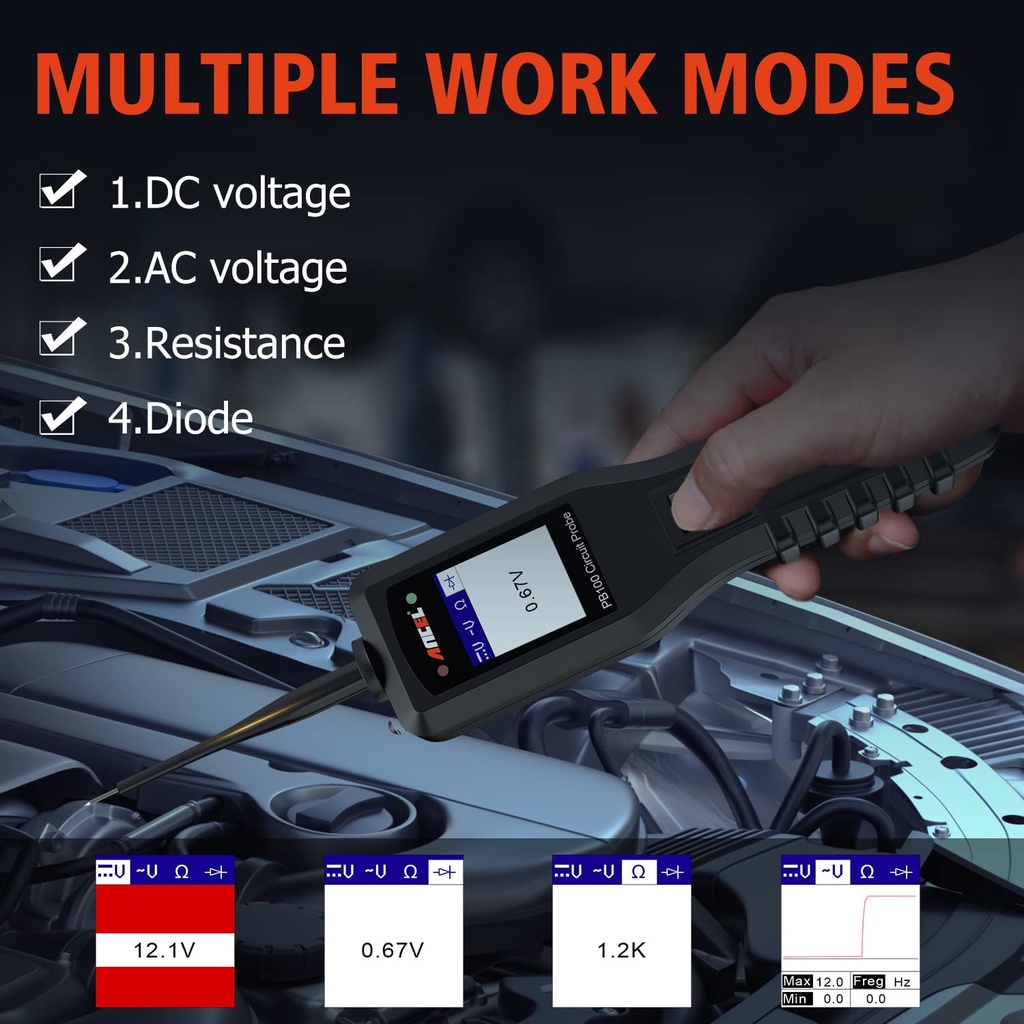

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

1. DC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

2. AC voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. Voltage and frequency.

3. Resistance

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

4. Diode

In this mode, the probe tip contact the positive terminal of the diode, connect the auxiliary ground lead to the negative terminal of the diode, the screen will display the forward voltage drop, indicates the forward bias. If exchange the probe tip and auxiliary ground lead, the screen will not display the voltage, indicates the reversebias.

►► Package List

1 x PB100 Circuit Probe
1 x Extension Cable (20ft)
1 x Battery Hookup Clips
1 x Cigarette Lighter Adapter
1 x Protective Case
1 x Probe tip
1 x User's Manual
