Ancel Ba101 12V Car Battery Tester Digital Analyzer Tester

Detail Ancel Ba101 12V Car Battery Tester Digital Analyzer Tester

ANCEL BA101 can be used to test a wide range of 12V batteries including Starting, Lighting, and Ignition (SLI), Deep Cycled and Marine (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM), and GEL cell. The major battery standards JIS, SAE, EN, DIN, and IEC are supported. BA101 12V car battery tester can easily, quickly and accurately measure the actual cold cranking amps capability, the health status of the battery itself, and the common fault of the vehicle's starting system and charging system.

Top Reason to Chose Ancel BA101 Car Battery Tester

Simple and easy to use

1. Accurate tester result in miliseconds (tolerance ±15)

2. BA101 can test CCA100-2000, 30-220Ah, which is the highest CCA in the market

3. Test batterues on and off the vehicle

4. Battery life analysis, Life in percentage (%),Internal re​​sistance value (m),Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

5. Test result based on JIS, EN, DIN, SAE and IEC standards.

6. Easily read LCD screen display

7. Quick test - input battery volume (AH), then it can show the battery status.

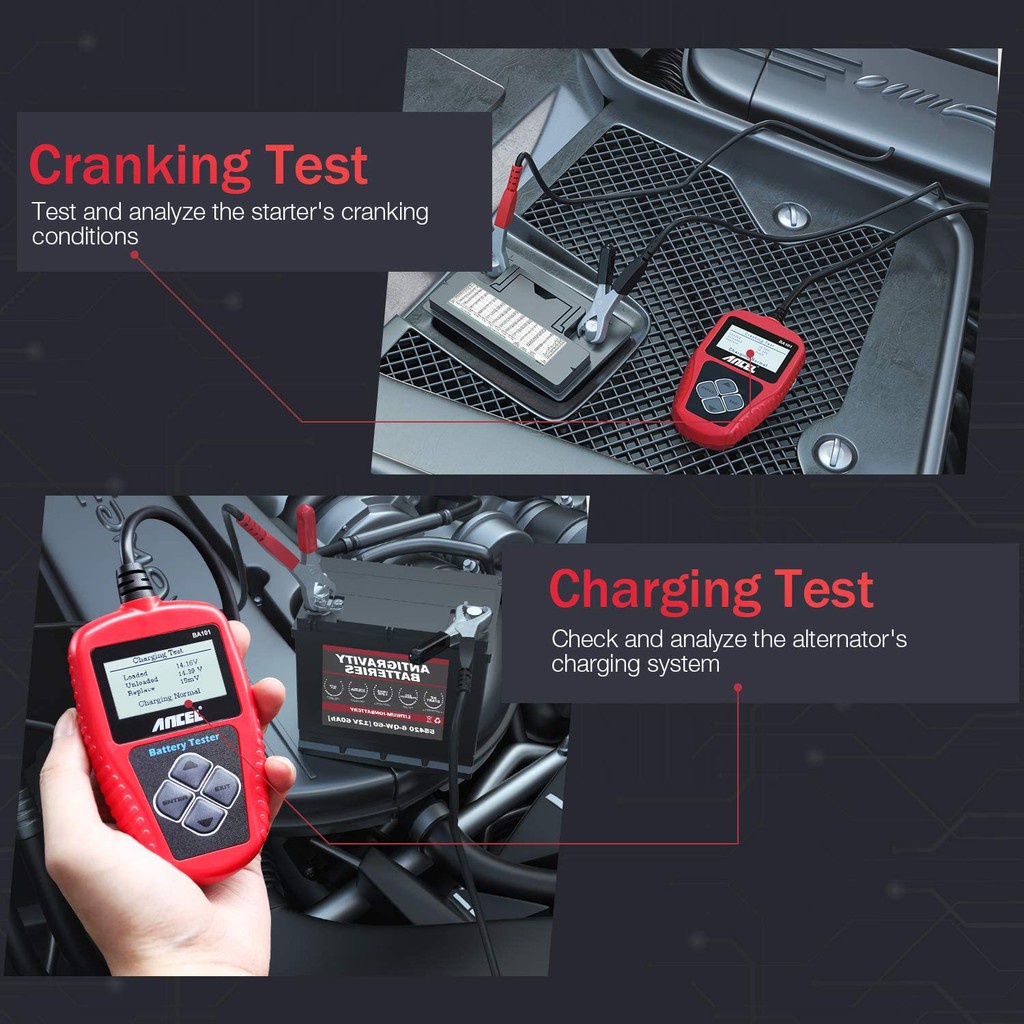

8. vehicle cranking system test - cranking time, voltage and status.

9. vehicle charging system test - load voltage, unloaded voltage, ripple status and charging system status.

10. Store the testing result, print function


BA101 Functions:

Test Results: Good or Replace

Internal resistance value (m)

Life in percentage (%)

Cranking system

Charging system

Operating Parameters:

System voltage: 12 Volts

Input voltage range: 9V~15V

Power requirements: No internal batteries required

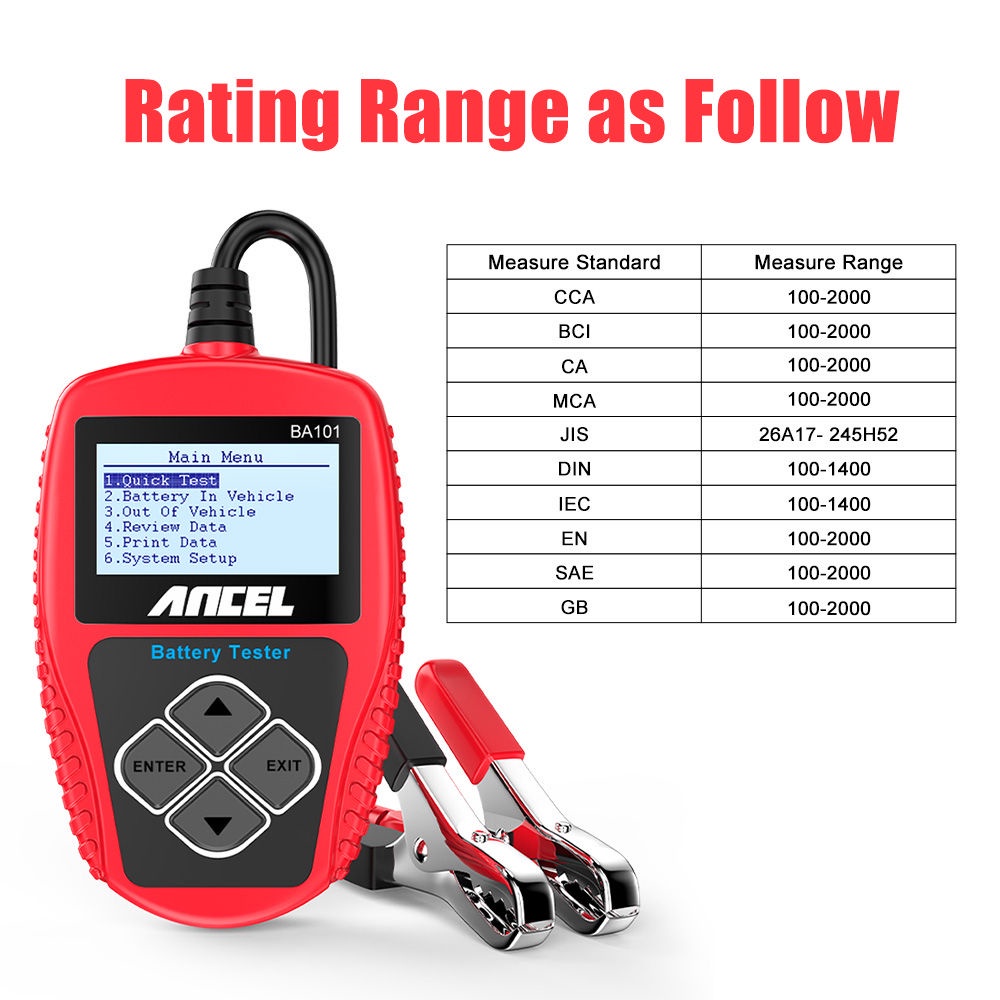

Capacity: Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating


Five Different Results of Battery Testing

GOOD BATTERY: The battery is without any problem.

GOOD, RECHARGE: Good battery but low current, and recharge before using.

REPLACE: The battery is already at or near the end of its use life, and please replace the battery.

BAD CELL, REPLACE: Battery interior damaged, bad cell or short circuit, and replace the battery.

CHARGE-RETEST: Unstable battery shall be recharged and retested to avoid error.


Ancel BA101 Car Battery Tester Application :

Use to test a wide range of 12V batteries (Starting [SLI], Deep Cycled and Marine) of Wet (Flooded), VRLA or Maintenance Free (MF), Sealed Maintenance Free (SMF), Absorption Glass Mat (AGM) and GEL cell. The major battery standards JIS, SAE, EN, DIN and IEC are supported.


❐ Packing List:

● ANCEL BA101*1
● Usb cable*1
● User manual*1
