Detail Analog Insulation Tester 5000V Kyoritsu KEW 3122B High Voltage

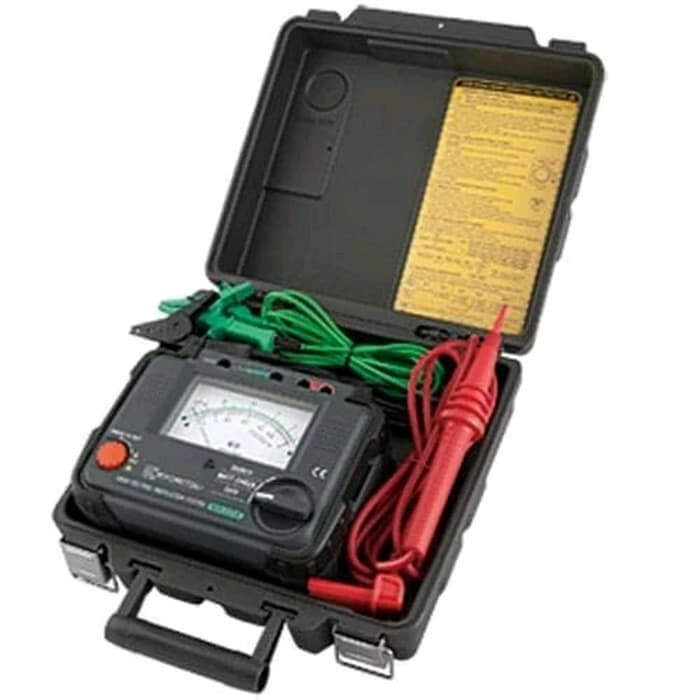

Analog Insulation Tester 5000V Kyoritsu KEW 3122B High Voltage

Easy and simple operation.
Automatic ranges, indicated by different LEDs.
Newly-designed alligator clip.
It comes with a tough hard case.
Safety standard IEC 61010-1 CAT 300V


Test voltage : 5000V

Measuring ranges (automatic change) : 5G/200G (auto ranging)

First effective measuring ranges : 0.2 - 100G

Accuracy : 5% rdg

Other ranges accuracy : 10% rdg or 0.5% of scale length

Short circuit current :

Applicable standards :
IEC 61010-1, 61010-2-030 CAT 300V, CAT 600V Pollution degree 2, IEC 61326-1, 61326-2-2(EMC), IEC 60529(IP40)

Power source : DC12V:LR14 8

Dimensions : 177(L) x 226(W) x 100(D) mm

Weight : 1.7kg approx.

Accessories :
7165A(Line probe)(3m), 7264(Earth cord)(3m),
7265(Guard cord)(3m), 8019(Hook type prod),
9183(Carrying case[Hard]), LR14 x 8, Instruction manual
