AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board

Elektronik > Elektronik Lainnya > AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:i2cpartshopLihat semua produk Elektronik oleh i2cpartshop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board

Spesifikasi :
- Onboard AMS1117-3.3 chip
- Input voltage range of 4.75V-7V (Input voltage should be higher than the output voltage by 1V)
- Output: 3.3V, 1A (load current can not exceed 1A)
- Onboard power indicator to indicate power is turned on: Red LED
- 2P single row pin input and output for easy connection
- Output voltage interface, connection to facilitate the experimental
- Board size: 2.9cm x 1.1cm approx
- Dual-panel design, the layout is nice

Gambar produk

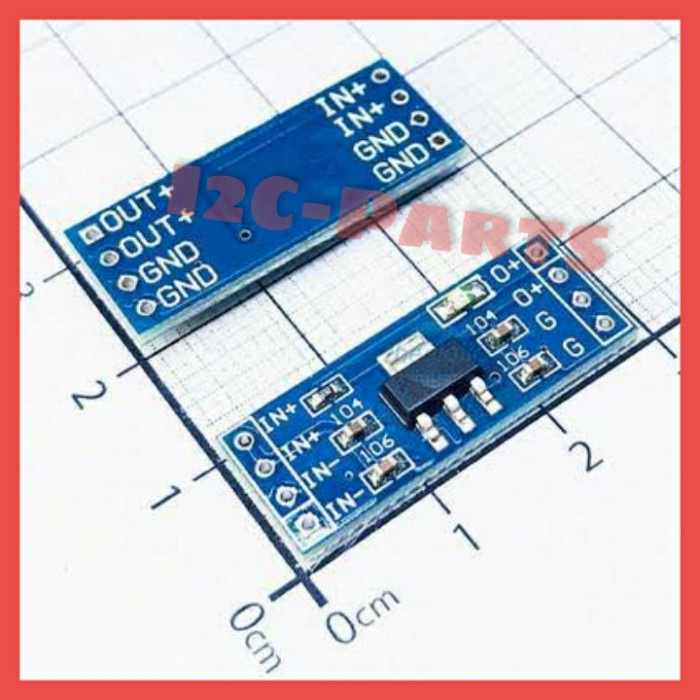

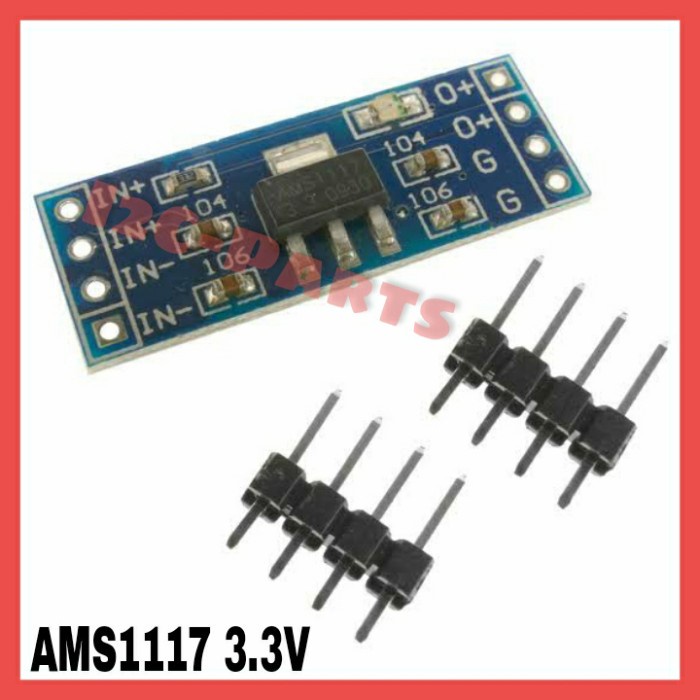

AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board
AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board
AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board
AMS1117 3.3V 1A Regulator Step Down Module 3.3 Power Adapter Board
Lihat lebih banyak informasi produk
