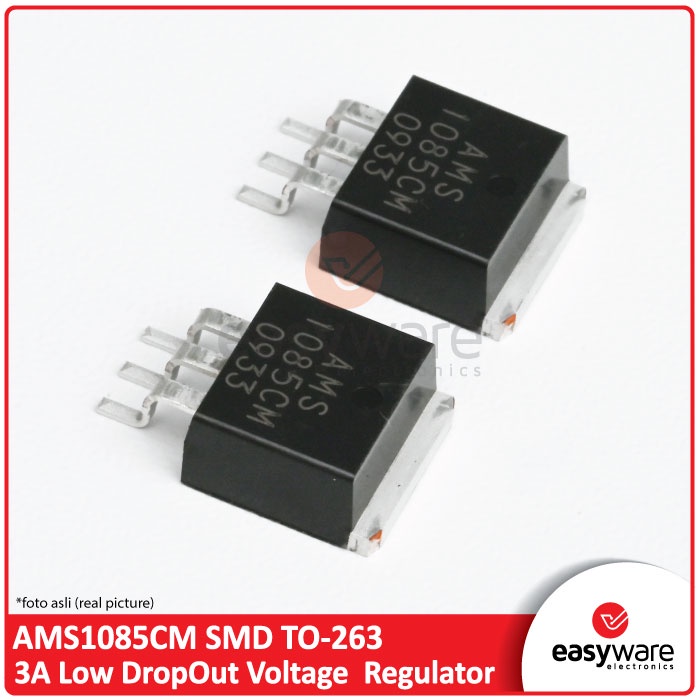

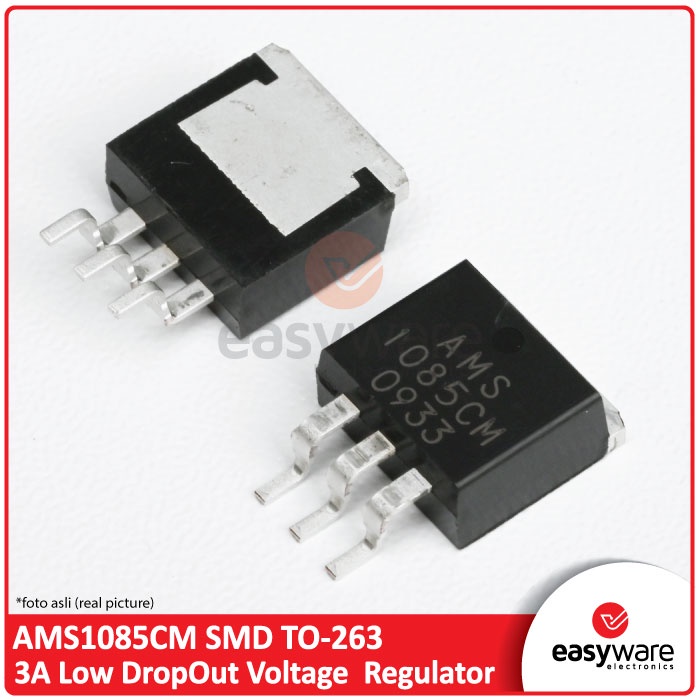

AMS1085CM SMD TO-263 - 3A LDO VOLTAGE REGULATOR - AMS 1085 - AMS1085

Elektronik > Elektronik Lainnya > AMS1085CM SMD TO-263 - 3A LDO VOLTAGE REGULATOR - AMS 1085 - AMS1085
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail AMS1085CM SMD TO-263 - 3A LDO VOLTAGE REGULATOR - AMS 1085 - AMS1085

* * * * * Bismillah * * * * *

The AMS1085 is a positive low voltage dropout regulator, voltage
dropout is only 1.18V at 3A.
AMS1085 has two versions: the fixed version and the adjustable
version. VOUT has a tolerance of less than 1% for fixed versions
1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable version.

The AMS1085 integrates overheating protection and current limit
circuits. It is an suitable for all electronic products.

FEATURES :

* 1% accuracy for fixed output VOUT while the voltage is 1.5V,
1.8V, 2.5V, 3.3V, 5.0V and the adjustable output VOUT
* Low Dropout Voltage: 1.18V at 3A output current
* Current Limiting: 4.5A
* Load regulation : 0.1% typical (adjustable version)
* Line regulation : 0.015% typical (adjustable version)
* Temperature Range: 0°C to 125°C

Package :
1 x AMS1085CM SMD TO-263
