Amplifier TOA ZA-3248 DMZ ampli Digital Mixer TOA 480 Watt

Detail Amplifier TOA ZA-3248 DMZ ampli Digital Mixer TOA 480 Watt

ZA-3248DMZ-AS 1

ZA-3248DMZ-AS 1 is a high performance yet cost-effective mixer power amplifier equipped with MP3,Bluetooth function and Zone selection. Ideal for broadcasting, paging, or background music in schools, offices, shops, houses of worship and large ballrooms.

Power Source : 100 - 240 V AC, 50/60Hz or 24 V DC
Rated Output : 480 W
Power Consumption : 99 W (AC operation at 1/8 maximum output without clip)
Frequency Response : 50 - 20,000 Hz

Input: MIC 1: 1 mV (-60 dB*), 600 Ω, balanced, phone jack, selectable to RJ45
MIC 2-3: 1 mV (-60 dB*), 600 Ω, balanced, phone jack
MIC 4: 1 mV (-60 dB*) 600 Ω, balanced, phone jack, selectable to AUX 1
AUX 1: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack, selectable to MIC 4
AUX 2: 100 mV (-20 dB*), 10 kΩ, unbalanced, RCA pin jack
MP3: LED Display, Support USB, SD/MMC card (up to 32GB), Bluetooth, Radio FM, Record

Output : Speaker out: Speaker Output in screw type terminal
Direct line (selectable): 21 Ω (100 V) or 4 Ω
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
5-zone selector (all zones simultaneously selectable)

Phantom Power : DC +21 V (MIC 1)
S/N Ratio : Over 60 dB
Total Harmonic Distortion : Under 1% at 1 kHz, 1/3 rated power
Tone Control : Bass: ±10 dB at 100 Hz
Muting : MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator : Power, Signal, Peak, Protect
Ventilation : Fan Cooling
Finish : Panel: ABS resin, black
Case: Steel plate, black
Dimensions : 420 (W) × 100.9 (H) × 357 (D) mm
Weight : 5.4 kg
Accessory : Removable terminal plug (2pin) x 5

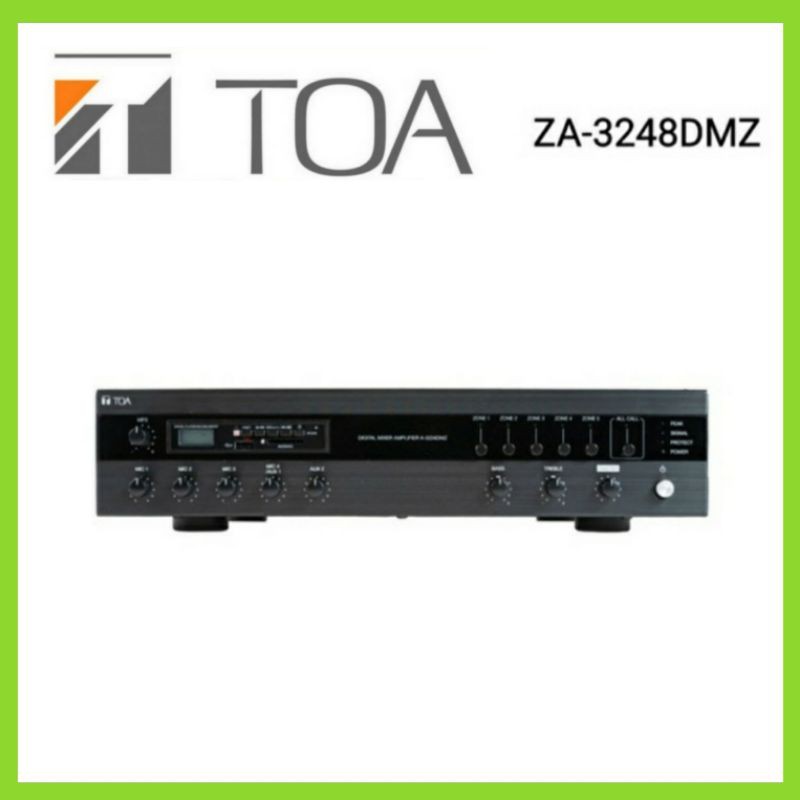

Gambar produk
