AMPLIFIER TOA ZA 2030 AMPLI TOA ZA2030 ORIGINAL 30 WATT 30WATT

Detail AMPLIFIER TOA ZA 2030 AMPLI TOA ZA2030 ORIGINAL 30 WATT 30WATT

Mixer Power Amplifier
TOA ZA - 2030 (Original)
Specifications :

- Power Source 220 - 240 V AC, or 24 V DC
- Rated Output 30 W
- Power Consumption 34 W (EN60065), 2 A (DC operation at rated output)
- Frequency Response 50 - 20,000 Hz (3 dB)
- Distortion 1% or less at 1 kHz, 1/3 rated power
- Input MIC 1: -60 dB*, 600 , balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 , balanced, phone jack
AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack
Mute: Contact pin 4 - 5 closure input (for MIC 1)

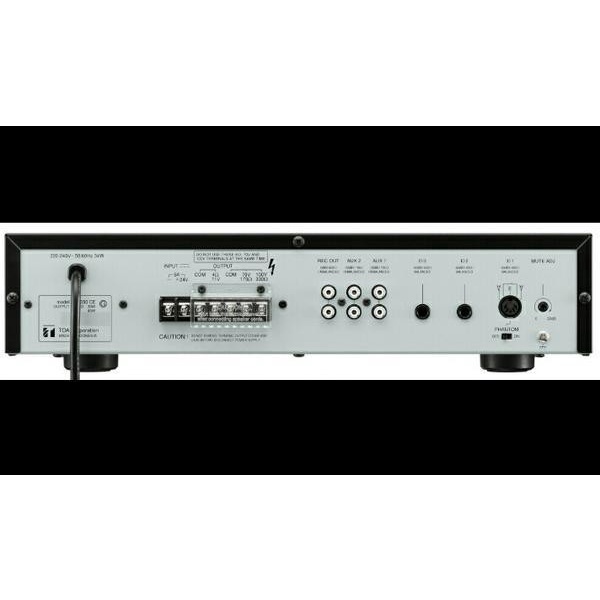

- Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 330 (100 V), 170 (70 V)
Low impedance: 4 (11 V)
Rec out: 0 dB*, 600 , unbalanced, RCA pin jack
- Phantom Power DC +21 V (MIC 1)
- S/N Ratio60 dB or more
- Tone Control Bass : 10 dB at 100 Hz
Treble: 10 dB at 10 kHz
- Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
- FinishPanel : ABS resin, black
Case: Steel plate, black
- Dimensions 420 (W) 100.9 (H) 280.3 (D) mm (16.54" 3.97" 11.04")
- Weight 5 kg (11.05 lb)
Produksi TOA Indonesia.
Garansi Resmi TOA 1 (satu) Tahun

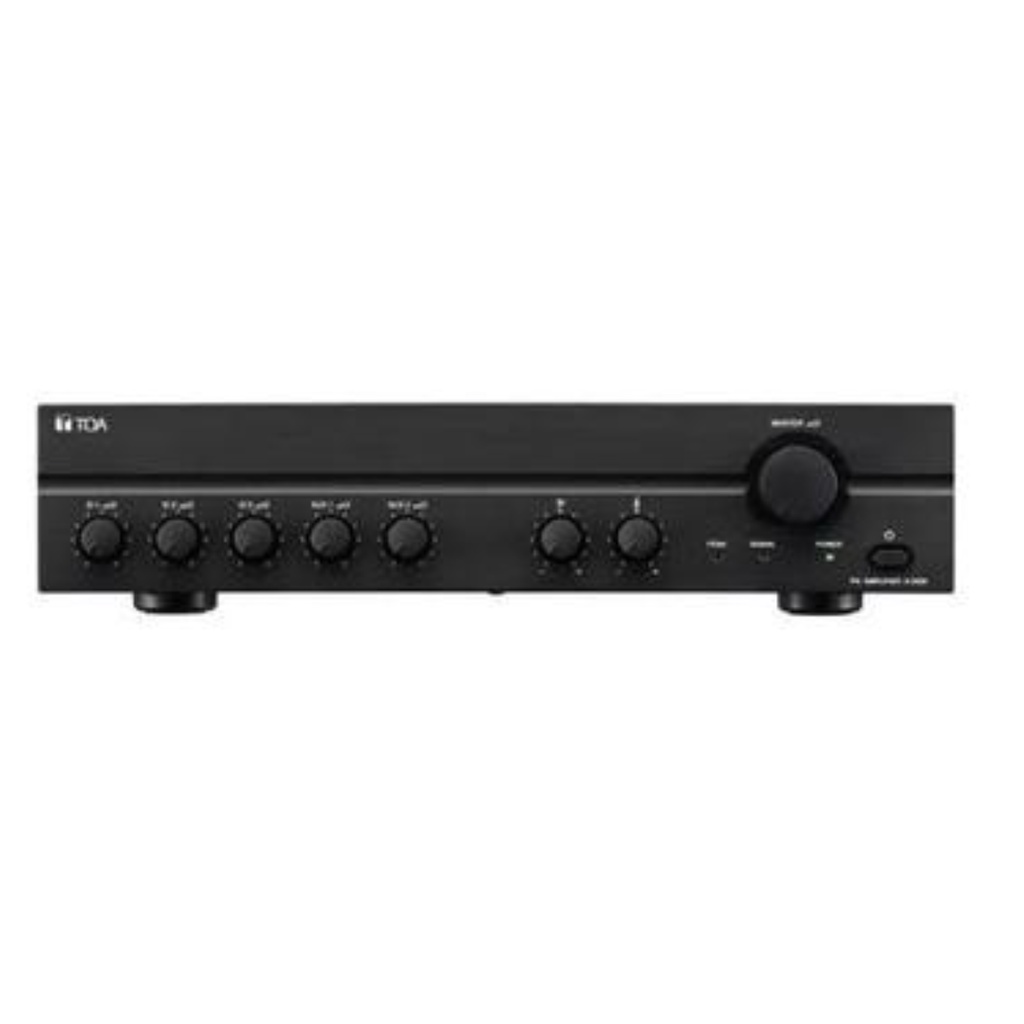

Gambar produk
