Amplifier Ampli Toa ZA 2060 Power 60 Watt

Detail Amplifier Ampli Toa ZA 2060 Power 60 Watt

AMPLIFIER TOA ZA-2060
Output : 60 watt
High Impedance & Low impedance
100% ORIGINAL PRODUK TOA (100% ASLI)
GARANSI RESMI 1 (SATU) TAHUN service center resmi PT. TOA GALVA.

Spesifikasi :
Output : 60 Watt
Konsumsi Daya : 150 Watt
Input MIC : 3 mic
Speaker output : High Impedance 100V, 70V ; Low impedance 4 ohm
Respon Frekuensi : 50-20.000Hz
Dimensi : 420 x 100.9 x 280.3 mm
Warna : Black

Power Source 220 - 240 V AC, or 24 V DC
Rated Output 60 W
Power Consumption 72 W (EN60065), 4 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input MIC 1: -60 dB*, 600 , balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 , balanced, phone jack
AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack
Mute: Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 170 (100 V), 83 (70 V)
Low impedance: 4 (15.5 V)
Rec out: 0 dB*, 600 , unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: 10 dB at 100 Hz
Treble: 10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) 100.9 (H) 280.3 (D) mm (16.54" 3.97" 11.04")

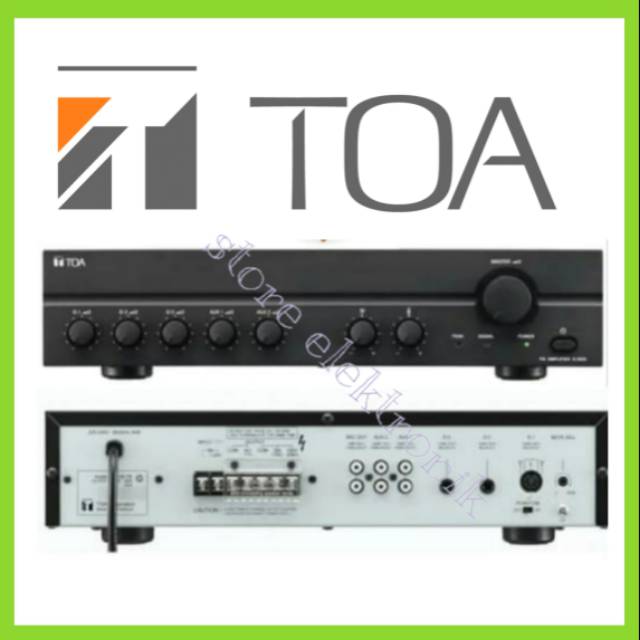

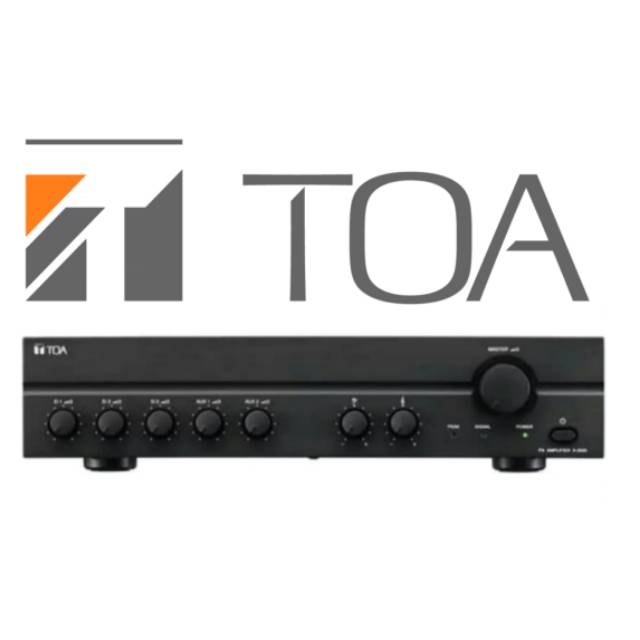

Gambar produk
