Amplifier Ampli TOA ZA 2030 Power 30 Watt

Detail Amplifier Ampli TOA ZA 2030 Power 30 Watt

Power Source 220 - 240 V AC, or 24 V DC
Rated Output 30 W
Power Consumption 34 W (EN60065), 2 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (3 dB)
Distortion 1% or less at 1 kHz, 1/3 rated power
Input MIC 1: -60 dB*, 600 , balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 , balanced, phone jack
AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack
Mute: Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 330 (100 V), 170 (70 V)
Low impedance: 4 (11 V)
Rec out: 0 dB*, 600 , unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass: 10 dB at 100 Hz
Treble: 10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) 100.9 (H) 280.3 (D) mm (16.54" 3.97" 11.04")
Weight 5 kg (11.05 lb)

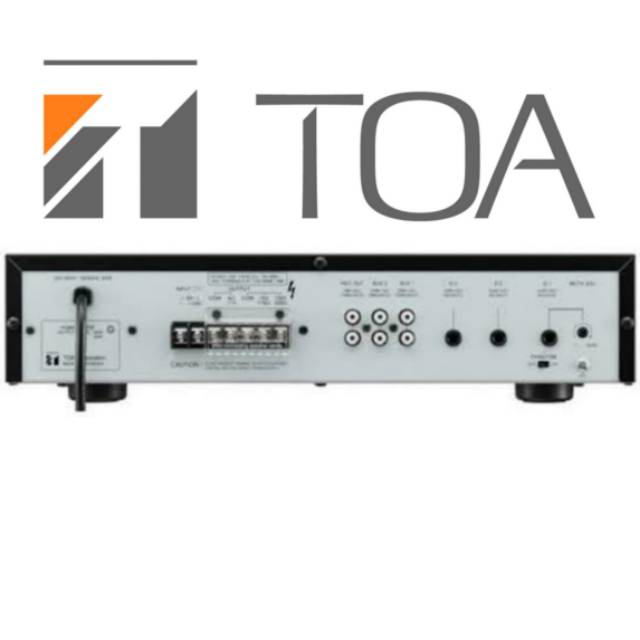

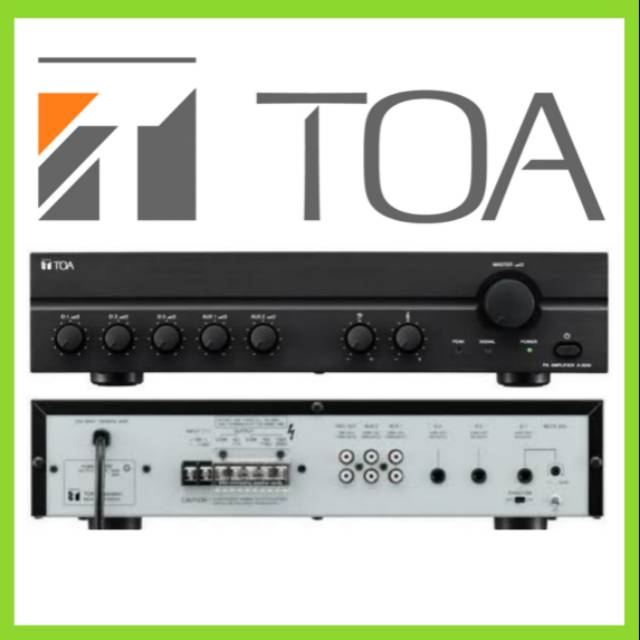

Gambar produk
