Amplifier 2x15W 12V Bluetooth MP3 Decoder Board FM Audio MP3 Module

Detail Amplifier 2x15W 12V Bluetooth MP3 Decoder Board FM Audio MP3 Module

Amplifier 2x15W 12V Bluetooth MP3 Decoder Board FM Audio MP3 Module

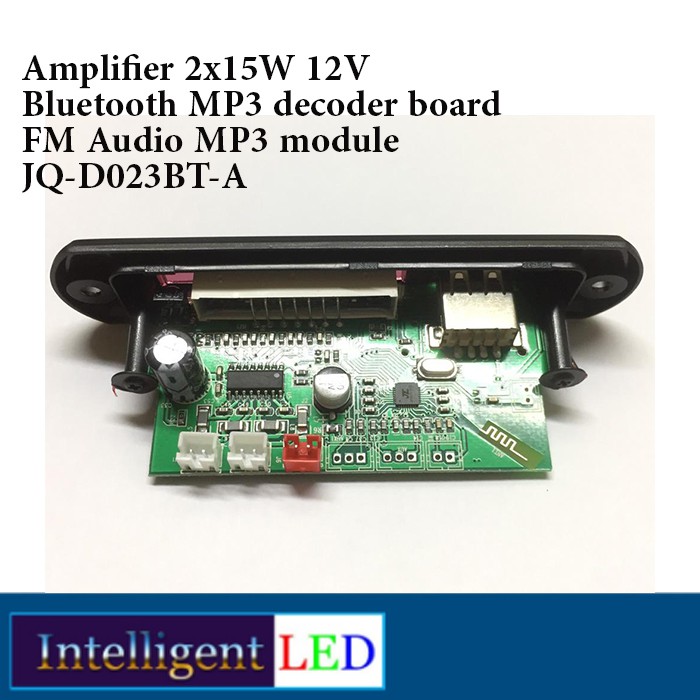

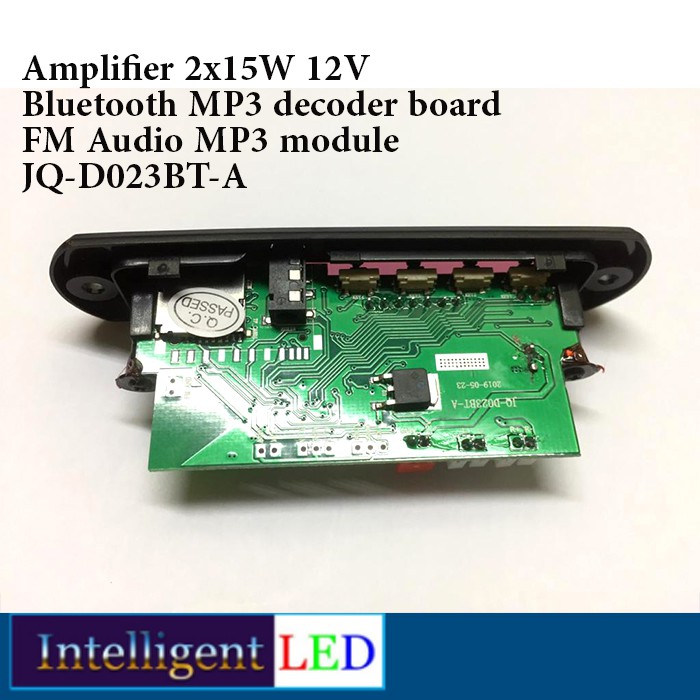

Model: JQ-D023BT (with amplifier 2*15W)
Shell size: 108*25.6mm

Function introduction: Jieli scheme / Bluetooth support (Bluetooth version 5.0) / Amplifier 2*15W / Dual decoding MP3, WMA, WAV, FLAC, APE lossless format music / read USB disk / read TF card / radio FM / external audio input LINE IN / infrared remote control / power off memory / power supply 12V

The Main Function
- Double decoding supports MP3 / WMA / WAV / FLAC / APE lossless format music;
- Support Bluetooth function, Bluetooth version 5.0;
- With power amplifier 2 * 15W, at the same time connect two 15W speakers;
- Digital screen display;
- Support MMC / TF/ MMA and other cards, support USB interface (U disk);
- Power failure memory function;

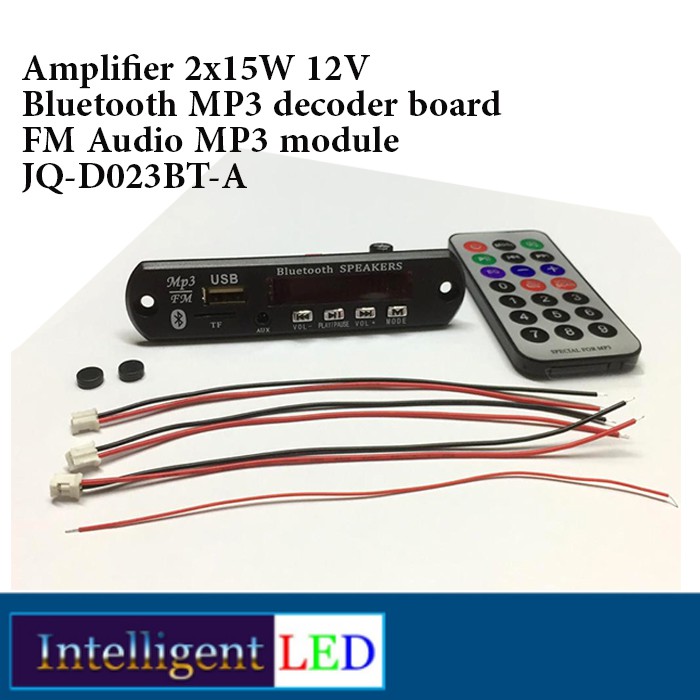

- Support 10 meters distance infrared remote control operation;
- Support for external audio input LINE IN;
- Support radio FM, receiving frequency band (87.5MHZ-108.0MHZ);

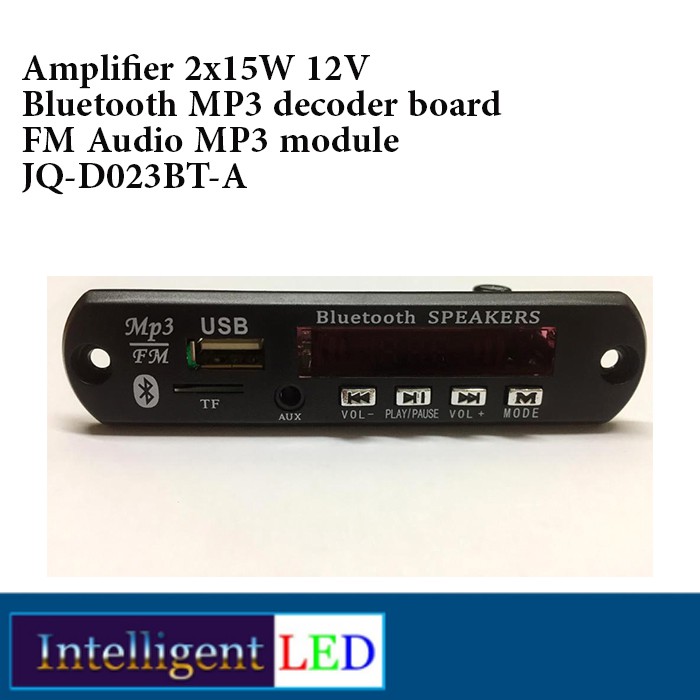

- Button: Four-button multi-directional control, VOL-/ AUTO / VOL+ / MODE;

The button operation details
1. VOL-button (previous song/volume reduction): In MP3 state, VOL-short press is the previous song, long press is for volume reduction; in FM state, short press to adjust one station number; in Bluetooth Short press under the function is the last song of Bluetooth, long press to decrease the volume.

2. AUTO button (play/pause): In the MP3 state, AUTO is short pressed to play/pause; in FM state, short press is play/pause, short press is for automatic receiving and saving; in Bluetooth function, short press to play /time out.

3, VOL + button (the next song / volume increase): In the MP3 state, VOL + short press for the next song, long press for the volume to increase; short press in the FM state to adjust a station number; under the Bluetooth function Short press for the next song of Bluetooth, long press for the volume to decrease.

4. MODE button: Switch between USB / TF / FM / audio input / Bluetooth function.

Gambar produk
