Ampli toa Za2120 Amplifier power toa Za 2120

Detail Ampli toa Za2120 Amplifier power toa Za 2120

ZA-2120 adalah power amplifier yang mampu bekerja pada impedansi tinggi mau pun impedansi rendah hingga 4 Ohm yang cocok untuk broadcasting paging atau background music di sekolah, kantor, pertokoan, café, pabrik, masjid, gereja, dan ruangan besar lainnya.

Spesifikasi
Power Source: 220-240V AC, or 24V DC
Rated Output: 120 W
Power Consumption: 124 W (AC Operation EN60065)
Current Consumption: 8.0 A (DC Operation at Rated Output)
Frecquency Response: 50-20,000 Hz (-+3 dB)
Distortion: Less Than 1% at 1 kHz, 1/3 Rated Power
Input
MIC 1-3: -60 dBV (1.0 mV), 600 Ohm, Balanced, Equivalent to Phone Jack Type
AUX 1, 2: -20 dBV (100 mV), 10k Ohm, Unbalanced, RCA Pin Jack

Output
Speaker Out: Balanced (Floating)
High Impedance: 830 Ohm (100 V), 42 Ohm (70 V)
Low Impedance : 4 Ohm (22 V)
Rec Out :0 dBV (1.0 V), 600 Ohm, Unbalanced, RCA Pin Jack

Phantom Power: DC +21 V (MIC 1)
S/N Ratio: More Than 60 dB
Tone Control:
Bass: +10 dB at 100 Hz
Treble: +10 dB at 10 kHz
Muting: MIC 1: Mutes Other Input Signals by 0-30 dB Attenuation
Indicator: Power LED, Signal LED, Peak LED
Finish: Panel: ABS Resin, Black
Case: Steel Plate, Black
Dimensions: 420 (W) X 101 (H) X 360 (D) in mm, or 16.5 (W) X 4.0 (H) X 14.2 (D) in inches

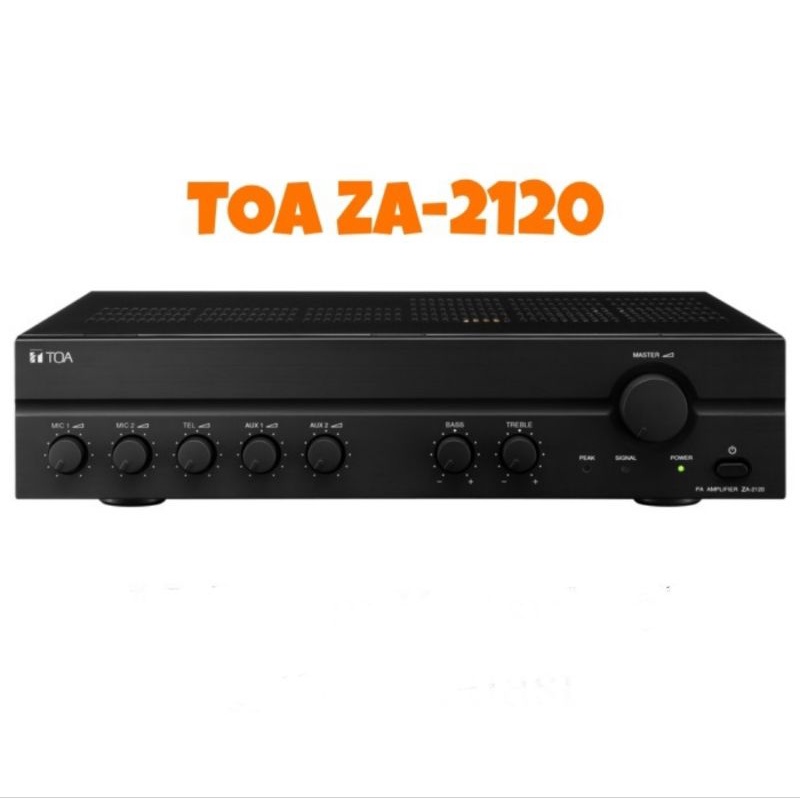

Gambar produk
