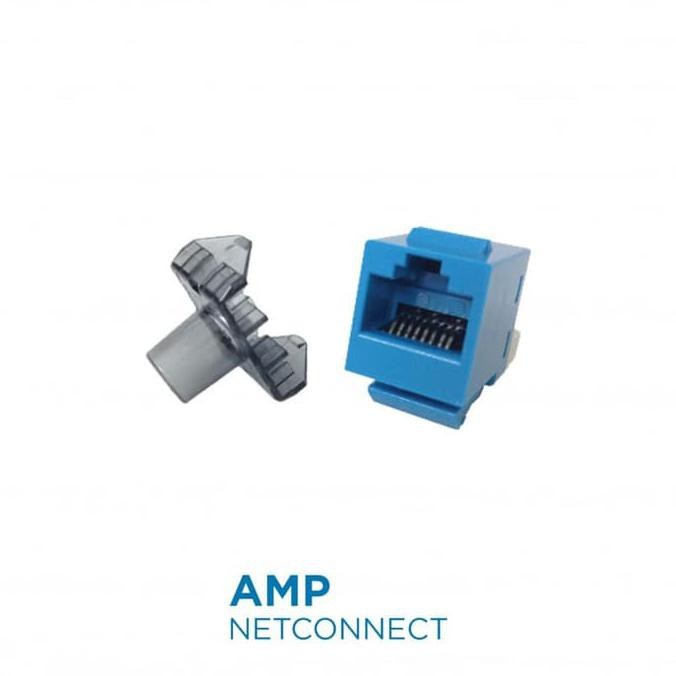

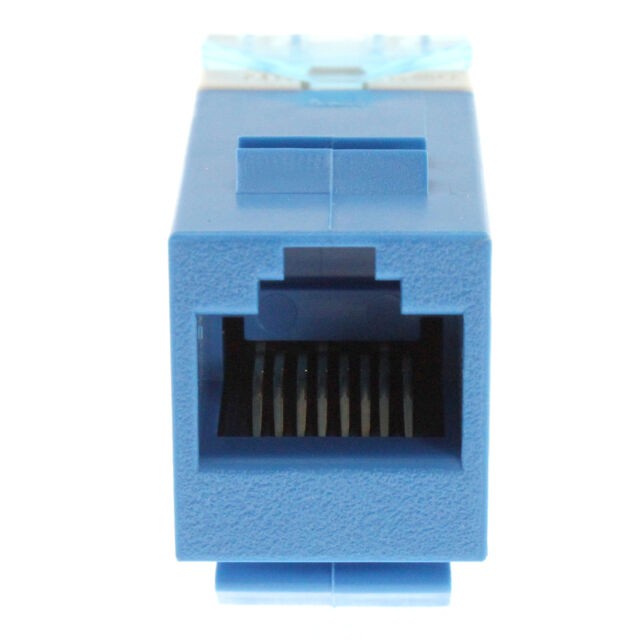

AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6

Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:escapecompLihat semua produk Komputer & Aksesoris oleh escapecomp
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6

* Product Classification
Portfolio : NETCONNECT
Product Series : SL Series
Product Type : Modular jack
Regional Availability : Asia | Latin America | North America

* Electrical Specifications
ANSI/TIA Category : 6
Safety Voltage Rating : 150 Vac
Transmission Standard : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E

* Mechanical Specifications
Conductor Gauge, solid : 2422 AWG
Conductor Gauge, stranded : 2624 AWG
Conductor Type : Solid | Stranded
Contact Base Material : Beryllium copper
Contact Plating Material : Gold
Contact Plating Thickness : 1.27 m
Material Type : Polycarbonate
Outlet Feature : Inverted jack face
Outlet Type : Standard
Plug Insertion Life, minimum : 750 times
Plug Retention Force, minimum : 89 N | 20 lbf
Termination Punchdowns, minimum : 200 times
Termination Tool : SL Termination tool
Termination Type : IDC
Wiring : T568A|T568B

Gambar produk

AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6
AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6
AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6
AMP Commscope SL110 Series Modular Jack RJ45 Cat5e / Cat-5e 1375191-6
Lihat lebih banyak informasi produk
