AMP Commscope SL110 Series Modular Jack RJ45 Cat6 Cat.6 1375055-2

Detail AMP Commscope SL110 Series Modular Jack RJ45 Cat6 Cat.6 1375055-2

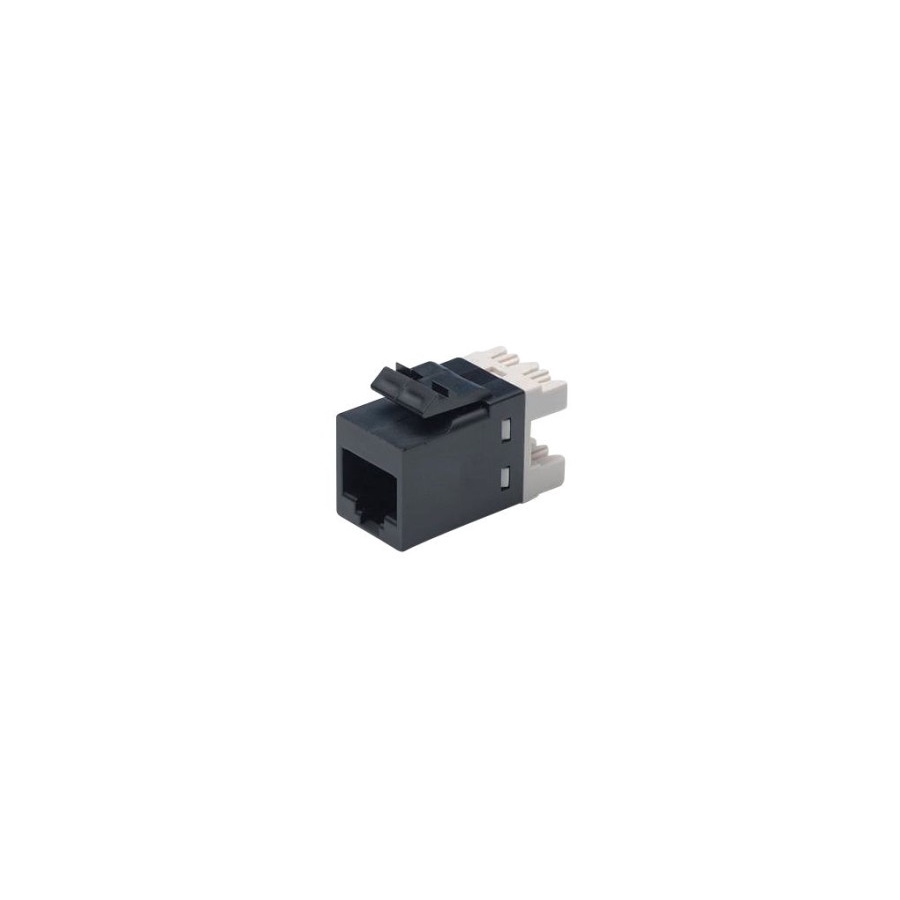

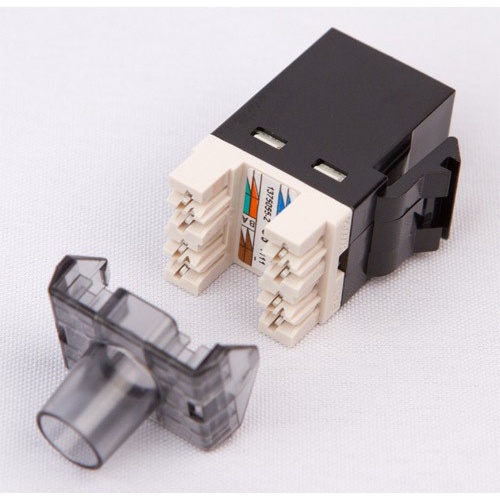

AMP Commscope 1375055-2
SL110 Series Modular Jack, RJ45, category 6, T568A/T568B, unshielded, without dust cover, black

Product Type : Modular jack
Product Series : SL Series
ANSI/TIA Category : 6
Cable Type : Unshielded
Color : Black
Conductor Type : Solid | Stranded
Mounting : SL Series faceplates and panels
Mounting Note : Color matches with SL-style Black Faceplates and Surface Mount Boxes
Outlet Feature : Inverted jack face
Outlet Type : Standard
Panel Cutout, recommended : 14.78 x 20.07 mm (0.58 x 0.79 in)
Termination Punchdowns,
minimum : 200 times
Termination Tool : SL Termination tool
Termination Type : IDC
Transmission Standards : ANSI/TIA-568-C.2 | ISO/IEC 11801 Class E
Wiring : T568A | T568B
Height
16.26 mm | 0.64 in
Width
14.48 mm | 0.57 in
Depth
30.48 mm | 1.2 in
Compatible Insulated Conductor Diameter, maximum
1.45 mm | 0.057 in
Contact Plating Thickness
1.27 µm
Panel Thickness, recommended
1.6 mm | 0.063 in
Compatible Conductor Gauge, solid
24–22 AWG
Compatible Conductor Gauge, stranded
26–24 AWG
