AMP Commscope Original RJ45 Connector Cat5E (50pcs)

Detail AMP Commscope Original RJ45 Connector Cat5E (50pcs)

Product Classification
Portfolio NETCONNECT"
Product Type Modular plug
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Dimensions
Compatible Cable Diameter, maximum 8.89 mm | 0.35 in
Compatible Cable Diameter, minimum 2.54 mm | 0.10 in
Compatible Insulated Conductor Diameter, maximum 0.990 mm | 0.039 in
Compatible Insulated Conductor Diameter, minimum 0.860 mm | 0.034 in

Electrical Specifications
ANSI/TIA Category 5
Current Rating, maximum 0.75 A
Insulation Resistance, minimum 500 mOhm
Safety Voltage Rating 150 Vac

Environmental Specifications
Operating Temperature -10 C to +60 C (+14 F to +140 F)
Relative Humidity Up to 93%, non-condensing
Safety Standard UL 1863

General Specifications
Cable Type Flat oval, unshielded
Interface RJ45
Package Quantity 50
Packaging Type Bag | Box | Carton
Positions/Loaded Contacts 8/8

Mechanical Specifications
Conductor Gauge, solid 26''"24 AWG
Conductor Gauge, stranded 26''"24 AWG
Conductor Type Solid | Stranded
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 1.27 'm
Material Type Glass filled polycarbonate
Plug Insertion Life, minimum 750 times
Termination Type IDC
Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU Compliant

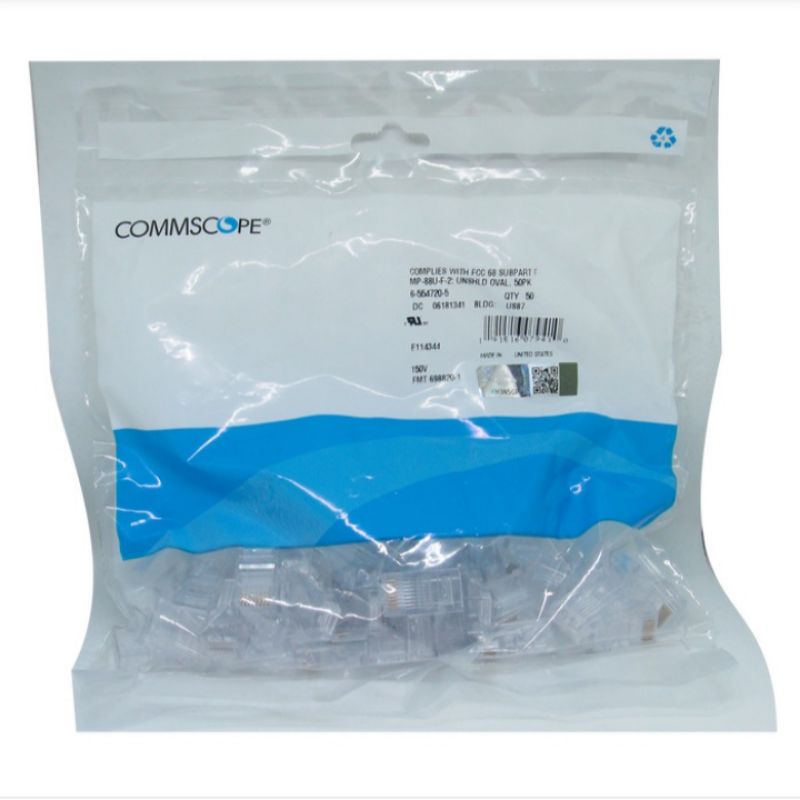

Gambar produk
