AMP Commscope Modular Cat 6

Detail AMP Commscope Modular Cat 6

Product Classification
Portfolio NETCONNECT"
Product Series SL Series
Product Type Modular jack
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Dimensions
Compatible Insulated Conductor Diameter, maximum 1.450 mm | 0.057 in
Depth 30.48 mm | 1.20 in
Height 16.13 mm | 0.64 in
Width 14.48 mm | 0.57 in

Electrical Specifications
Safety Voltage Rating 150 Vac
Transmission Standard ANSI/TIA-568-C.2 | ISO/IEC 11801 Class D

Environmental Specifications
Flammability Rating UL 94 V-0
Operating Temperature -40 C to +70 C (-40 F to +158 F)
Safety Standard CSA | cUL

General Specifications
Cable Type U/UTP (unshielded)
Color Red / Blue
Includes Strain relief cap
Mount Type SL Series faceplates and panels
Package Quantity 1
Packaging Type Bag
Panel Cutout, recommended 14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended 1.60 mm

Mechanical Specifications
Conductor Gauge, solid 24''"22 AWG
Conductor Gauge, stranded 26''"24 AWG
Conductor Type Solid | Stranded
Contact Base Material Beryllium copper
Contact Plating Material Gold
Contact Plating Thickness 1.27 'm
Material Type Polycarbonate
Outlet Type Standard
Plug Insertion Life, minimum 750 times
Plug Retention Force, minimum 89 N | 20 lbf
Termination Punchdowns, minimum 200 times
Termination Tool SL Termination tool
Termination Type IDC
Wiring T568A | T568B
Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU Compliant

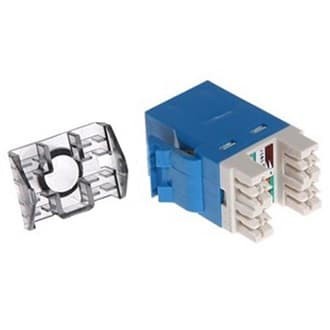

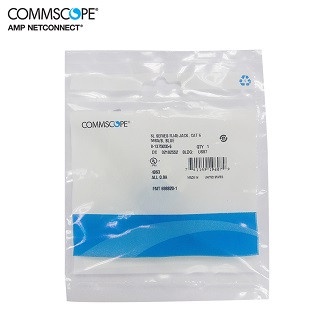

Gambar produk
