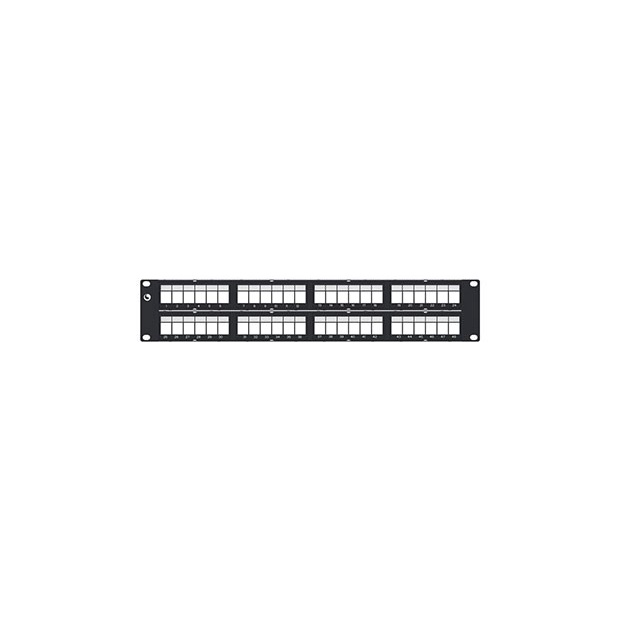

AMP COMMSCOPE Discrete Blank Patch Panel+ Modular Jack 48 port
Deskripsi singkat
Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > AMP COMMSCOPE Discrete Blank Patch Panel+ Modular Jack 48 port
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail AMP COMMSCOPE Discrete Blank Patch Panel+ Modular Jack 48 port
760237041 | CPP-UDDM-SL-1U-48Discrete Distribution Module Panel, SL, UTP, 2U, 48 port + modular Jack
Product Classification
Portfolio : CommScope®
Product Type : RJ45 patch panel
Regional Availability : Asia|Australia/New Zealand|EMEA|Latin America|North America DimensionsDepth,
with cable management : 119.38 mm | 4.7 in
Diameter Over Dielectric, maximum : 1.168 mm | 0.046 in
Diameter Over Dielectric, minimum : 0.762 mm | 0.03 in
Height : 88.9 mm | 3.5 in
Width : 482.6 mm | 19 in
Electrical Specifications
ANSI/TIA Category : 5e | 6 | 6A
Environmental Specifications
Flammability Rating : UL 94 V-0
Operating Temperature : -10 °C to +60 °C (+14 °F to +140 °F)
Safety Standard : cUL | RCM | UL
Storage Temperature : -40 °C to +70 °C (-40 °F to +158 °F)
General Specifications
Total Ports, quantity : 48
Cable Type : Unshielded
Color : Black
Modules, quantity : 0
Package Quantity : 1
Rack Type : EIA 19 in
Rack Units : 2.0
Mechanical Specifications
Panel Style : Straight
Material Type : High-impact, flame retardant, thermoplastic|Powder-coated steel
