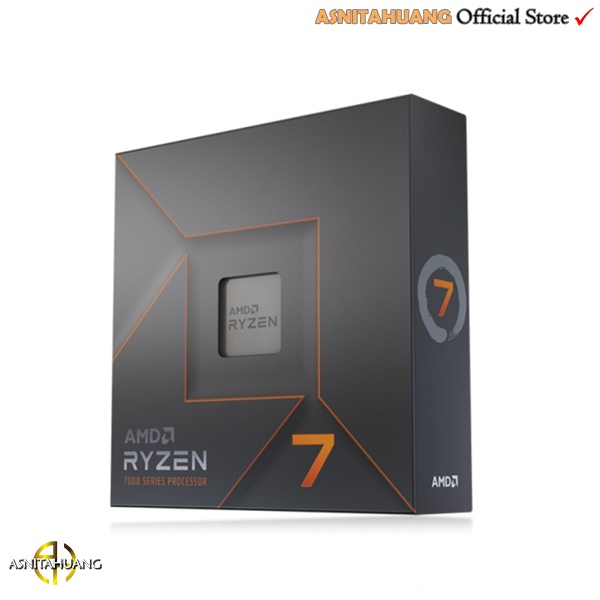

Detail AMD Ryzen 7 7700X 8 Cores 16 Threads Processor AM5 Up to 5.4GHz
General Specifications Platform Desktop Market Segment Enthusiast Desktop Product Family AMD Ryzen™ Processors Product Line AMD Ryzen™ 7 Desktop Processors AMD PRO Technologies No Consumer Use Yes Regional Availability Global Former Codename "Raphael AM5" Architecture "Zen 4" # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.4GHz Base Clock 4.5GHz L1 Cache 512KB L2 Cache 8MB L3 Cache 32MB Default TDP 105W Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets X670E X670 B650E B650 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB) Not included Max. Operating Temperature (Tjmax) 95°C Launch Date 9/27/2022 *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. Connectivity USB Type-C® Support Yes Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 3.2 Gen 1 (5Gbps) Ports 0 Native USB 2.0 (480Mbps) Ports 1 Native SATA Ports 0 Native PCIe® Lanes (Total/Usable) 28/24 Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4
AMD X670 12x Gen4
AMD B650E 8x Gen4
AMD B650 8x Gen4
NVMe Support Boot, RAID0, RAID1, RAID10 Memory Channels 2 Max. Memory 128GB System Memory Subtype UDIMM Max Memory Speed 1x1R 5200 MT/s
1x2R 5200 MT/s
2x1R 3600 MT/s
2x2R 3600 MT/s
ECC Support Yes (Requires mobo support) Graphics Capabilities Integrated Graphics Yes Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz GPU Base 400 MHz USB Type-C® DisplayPort™ Alternate Mode Yes Product IDs
