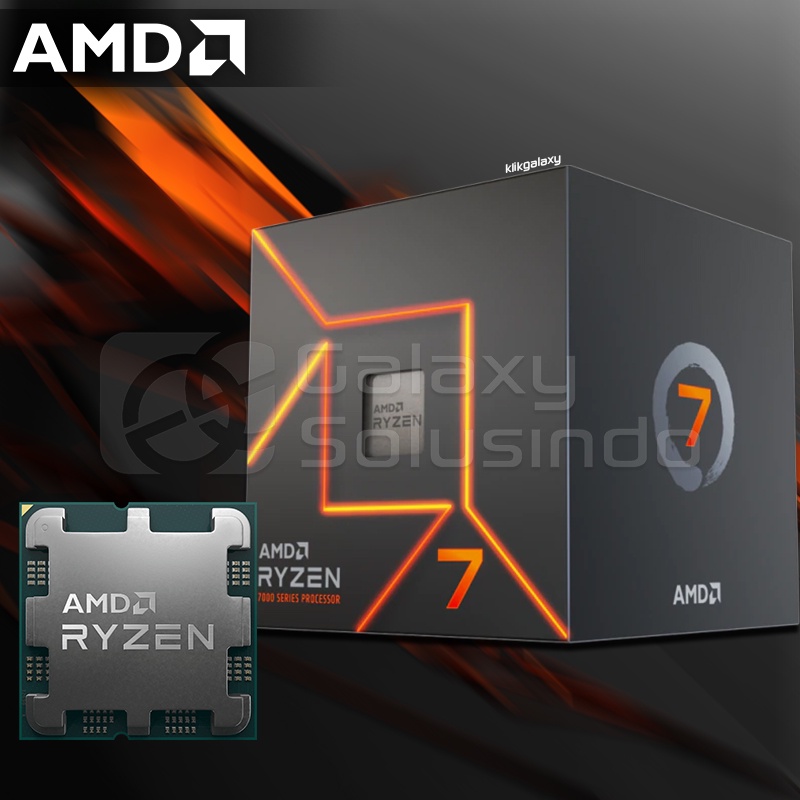

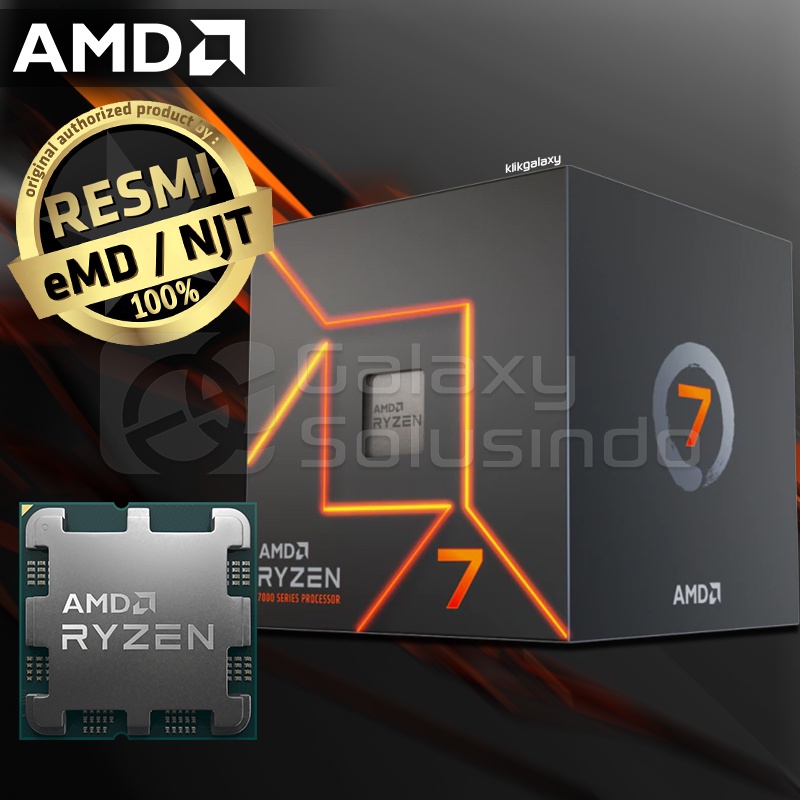

AMD Ryzen 7 7700 8 Core 16 Thread 5.3GHz AM5 Processor

Detail AMD Ryzen 7 7700 8 Core 16 Thread 5.3GHz AM5 Processor

Specification :
Platform
Desktop
Market Segment
Enthusiast Desktop
Product Family
AMD Ryzen™ Processors
Product Line
AMD Ryzen™ 7 Processors
AMD PRO Technologies
No
Consumer Use
Yes
Regional Availability
Global
Former Codename
"Raphael AM5"
Architecture
"Zen 4"
# of CPU Cores
8
Multithreading (SMT)
Yes
# of Threads
16
Max. Boost Clock

Up to 5.3GHz
Base Clock
3.8GHz
L1 Cache
512KB
L2 Cache
8MB
L3 Cache
32MB
Default TDP
65W
Processor Technology for CPU Cores
TSMC 5nm FinFET
Processor Technology for I/O Die
TSMC 6nm FinFET
CPU Compute Die (CCD) Size
71mm²
I/O Die (IOD) Size
122mm²
Package Die Count
1
Unlocked for Overclocking

Yes
AMD EXPO™ Memory Overclocking Technology
Yes
Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket
AM5
Supporting Chipsets
X670E
X670
B650E
B650
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)

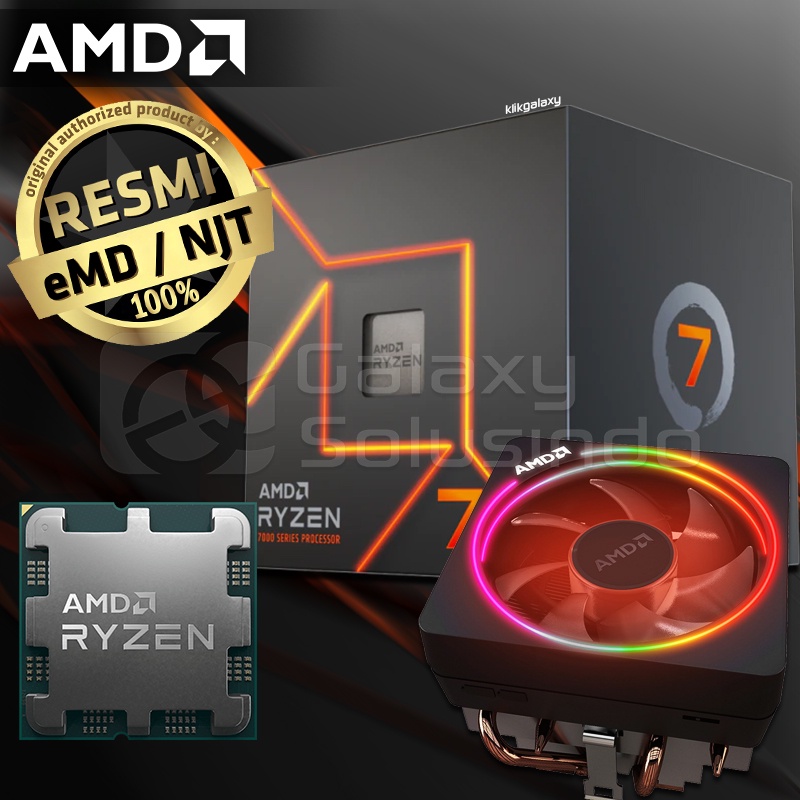

AMD Wraith Prism
Max. Operating Temperature (Tjmax)
95°C
Launch Date
1/14/2023
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support
Yes
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
1
Native SATA Ports
0
Native PCIe® Lanes (Total/Usable)
28/24
Additional Usable PCIe Lanes from Motherboard
AMD X670E

12x Gen4
AMD X670

12x Gen4
AMD B650E

8x Gen4
AMD B650

8x Gen4
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type
DDR5
Memory Channels
2
System Memory Subtype
UDIMM
Max Memory Speed
2x1R

DDR5-5200
2x2R

DDR5-5200
4x1R

DDR5-3600
4x2R

DDR5-3600
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Integrated Graphics
Yes
Graphics Model
AMD Radeon™ Graphics
Graphics Core Count
2
Graphics Frequency
2200 MHz
GPU Base
400 MHz
USB Type-C® DisplayPort™ Alternate Mode
Yes
Product IDs
Product ID Boxed
100-100000592BOX
Product ID Tray
100-000000592
Key Features
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
