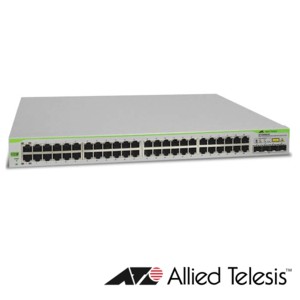

48 por t 10/100/1000T WebSmart switch with 4 SFP combo ports
Key Features VLAN IEEE 802.1Q tagged - up to 255 Por t-based - up to 64 Quality of Service Classification IEEE 802.1p tagging Por t-based priority Four priority queues per por t IP Multicast Support (IPv4) IGMP snooping (v1/v2) Static multicast group Spanning-Tree, IEEE 802.1d/w IEEE 802.3ad Link Aggregation Manual IEEE 802.1x Port-based and MAC-based Network Access Control Local authentication ser ver (MD5 only) Remote authentication through RADIUS Dynamic VLAN assignment RADIUS client for IEEE 802.1x DHCP client Statistics char ts in Web Jumbo frames - up to 9K Others IEEE 802.3x flow control or HOL () blocking Prevention ( when flow control is off) Por t mirroring Destination MAC filtering Ingress/egress rate limiting Broadcast storming control 100FX SFP suppor t
Performance 14,880pps for 10Mbps Ethernet 148,800pps for 100Mbps Ethernet 1,488,000pps for 1000Mbps Ethernet MAC addresses 8K Packet buffer 6MB DRAM 64MB Flash 8MB Switching capacity 96Gbps Throughput 71.2Mpps
Dimensions 44cm x 25.7cm x 4.32cm 17.32 x 10.11 x 1.7
