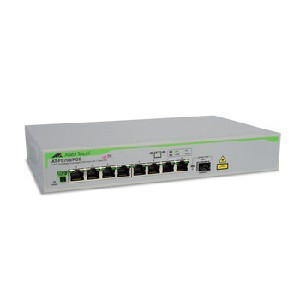

Allied Telesis AT-FS708/POE Switch Unmanaged 8 Port POE + 1 Port SFP

Detail Allied Telesis AT-FS708/POE Switch Unmanaged 8 Port POE + 1 Port SFP

FS708/POE
Power requirements 90-240V AC
Power consumption 90W max
PoE power 48vDC, 65W
Switch power 12vDC, 20W
AC voltage/frequency requirements:
100 - 240 VAC, 50/60 Hz
AC input power consumption:
Eco friendly mode enabled with
no PoE power 6.4 W maximum
Eco-friendly mode enabled with max PoE power 79.2
maximum
PoE power
Available Power over Ethernet: 65 W @ 48vDC
IEEE 802.3af Class 3 (15.4 W): Max 4 ports
IEEE 802.3af Class 2 (7.3 W): Max 8 ports
IEEE 802.3af Mode: Alternative A (MDI)
FS708LE/POE
Power requirements 100 ''" 240V AC
Power consumption 39.2W max
PoE power 48vDC, 30W
AC voltage/frequency requirements:
100 - 240 VAC, 50/60 Hz
PoE power:
Available Power over Ethernet: 30W @ 48vDC
IEEE 802.3af Class 3 (15.4 W): Max 2 ports
IEEE 802.3af Class 2 (7.3 W): Max 4 ports
IEEE 802.3af Mode: Alternative A (MDI)
Interface Connections
10/100TX RJ-45
1000MB SFP (AT-FS708/POE only)
Standards and Compliance
IEEE 802.3 10T Ethernet
IEEE 802.3u 100TX Fast Ethernet
IEEE 802.3x Flow control
IEEE 802.3af Power over Ethernet, mode A (PoE units)
Electrical/Mechanical Approvals
UL 1950
CSA 22.2 No. 950 FCC/EN55022 Class B
VCCI Class B
EN60950 (TUV)
EN55024
CE
PoE units:
UL1950 TUV UL
C-Tick CE Mark FCC Part 15
CISPR 22
EN55022
