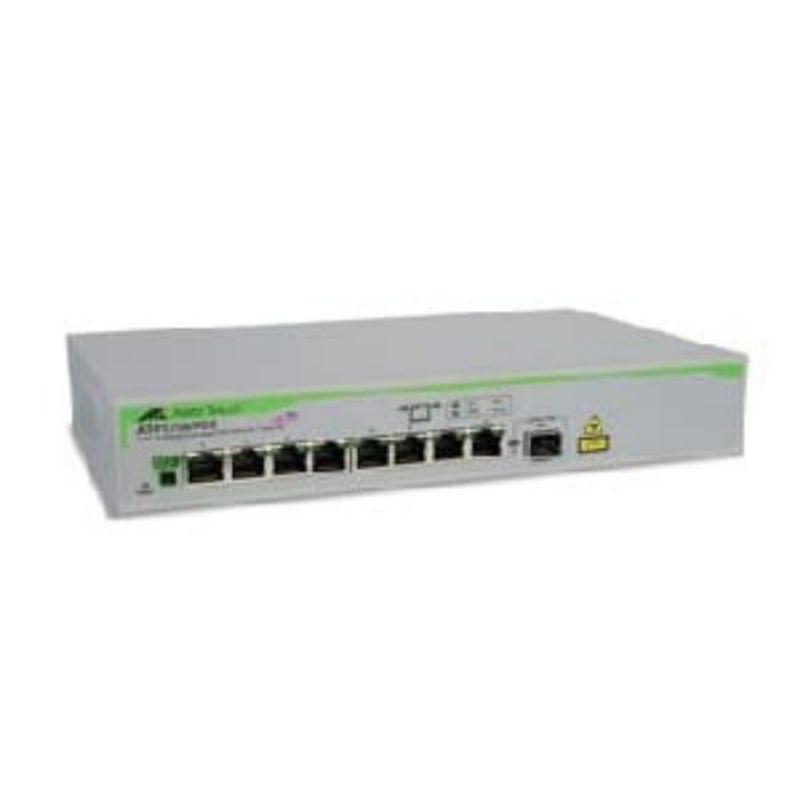

Detail ALLIED TELESIS AT-FS708/POE 8 PORT POE + 1 PORT SFP SWITCH UNMANAGED
FS708/POE Power requirements 90-240V AC Power consumption 90W max PoE power 48vDC, 65W Switch power 12vDC, 20W AC voltage/frequency requirements: 100 - 240 VAC, 50/60 Hz AC input power consumption: Eco friendly mode enabled with no PoE power 6.4 W maximum Eco-friendly mode enabled with max PoE power 79.2 maximum PoE power Available Power over Ethernet: 65 W @ 48vDC IEEE 802.3af Class 3 (15.4 W): Max 4 ports IEEE 802.3af Class 2 (7.3 W): Max 8 ports IEEE 802.3af Mode: Alternative A (MDI) FS708LE/POE Power requirements 100 ''" 240V AC Power consumption 39.2W max PoE power 48vDC, 30W AC voltage/frequency requirements: 100 - 240 VAC, 50/60 Hz PoE power: Available Power over Ethernet: 30W @ 48vDC IEEE 802.3af Class 3 (15.4 W): Max 2 ports IEEE 802.3af Class 2 (7.3 W): Max 4 ports IEEE 802.3af Mode: Alternative A (MDI) Interface Connections 10/100TX RJ-45 1000MB SFP (AT-FS708/POE only) Standards and Compliance IEEE 802.3 10T Ethernet IEEE 802.3u 100TX Fast Ethernet IEEE 802.3x Flow control IEEE 802.3af Power over Ethernet, mode A (PoE units) Electrical/Mechanical Approvals UL 1950 CSA 22.2 No. 950 FCC/EN55022 Class B VCCI Class B EN60950 (TUV) EN55024 CE PoE units: UL1950 TUV UL C-Tick CE Mark FCC Part 15 CISPR 22 EN55022
