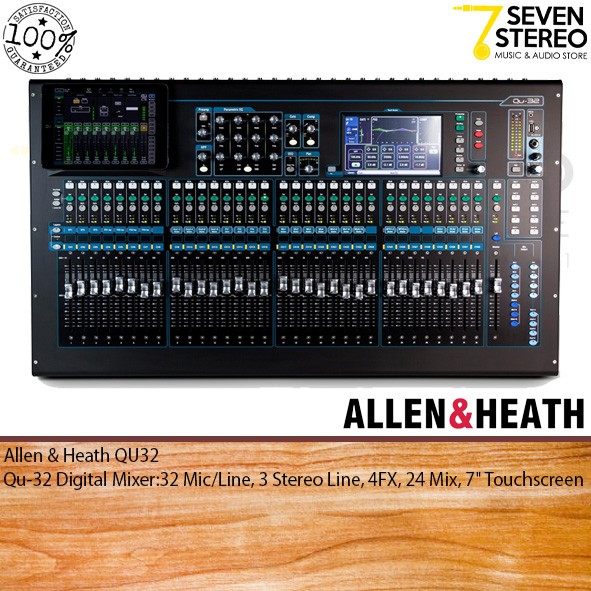

Allen Heath QU32 Digital Mixer

Detail Allen Heath QU32 Digital Mixer

Features:
32 AnalogiQ total-recall preamps integrated with DSP for optimum transparency and gain accuracy
Ergonomic layout and workflow is comfortable, fluid, and intuitive
Color touchscreen and dedicated data encoder give you quick and easy access to all settings
Key processing tools are presented clearly on the SuperStrip, with 1 function per physical control
33 automated, motorized ALPS faders (32 arranged over two layers) speed up and enhance your mixing
4 groups give you subgrouping flexibility to LR for level masters and/or processing
Instant recall lets you save and recall scenes (snapshots) at the press of a button
Onboard studio-grade dynamics and FX algorithms derived A&H's iLive pro touring series
Built-in interface streams multitrack audio to/from your Mac (OSX class-compliant)
Plug-and-play with any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools
Qu-Drive delivers 18 channels of 24-bit/48kHz recording/playback to/from your USB hard drive
5 dedicated cores of high efficiency ARM processing provide state-of-the-art processing
Optional Qu-Pad app frees you to tweak monitors and PA from your iPad, onstage or around the venue
Fully compatible with A&H's ME Personal Mixing System
dSNAKE port lets you connect to a remote AR2412 or AR84 Stagebox via Cat 5e digital snake
Matrix adds 2 further stereo outputs equipped with full processing to the console's extensive I/O
18-gauge, cold-rolled Zintec steel frame delivers strength, rigidity, and distinctive looks

Specs
Type: Digital
Channels: 32 Mono, 3 Stereo
Inputs - Mic Preamps: 32 x XLR
Phantom Power: 32
Talkback: 1 x XLR
Inputs - Line: 32 x 1/4"
Inputs - Other: 4 x 1/4" (2 stereo in), 1 x 1/8" TRS (stereo in)
Outputs - Main: 2 x XLR (left, right), 2 x 1/4" (2 track out), 2 x 1/4" (alt out)
Outputs - Digital: 1 x Ethernet dSnake, 1 x XLR AES, 1 x USB Type A
Outputs - Other: 4 x XLR (mono mix outs), 3 x XLR pairs (stereo mix outs)
