ALAT KUPAS KABEL 8-28MM /Transverse Cable Stripping Knife Fiber Optic

Detail ALAT KUPAS KABEL 8-28MM /Transverse Cable Stripping Knife Fiber Optic

Colour: Black

material: metal

Model Number: Armored Cable Slitter

Adjustable from: 8-28MM

Adjustable blade depth to: 5.5 mm maximum

Blade angle: rotate 90 degrees

Professional grade tool Perfect for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables
Versatile design allows jacket or shield slitting on non-fiber optic cables as well
Tool slits outer polyethylene jacket and armor in one operation

Performs longitudinal slitting and circumferential ringing for end stripping
Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation ringing and slitting

ACS is adjustable from 0.315 in. 8 mm to 1.125 in. 28.6 mm cable O.D.

Adjustable blade depth to 5.5 mm maximum to accommodate different cable jackets

Cable guide wheel provides cable ity and allows for easier tool movement along the cable

Rugged anodized aluminum and steel construction

ACS Part No.: 37880 ? ACS-2 Part No.: 37897

ACS-K Part No.: 37899 includes ACS-2 tool, cable guide wheel and bearing

Replacement blade: Part No.: 37884 CB 251-K

Height: 5 in 130 mm

Weight: 10 oz 284 g

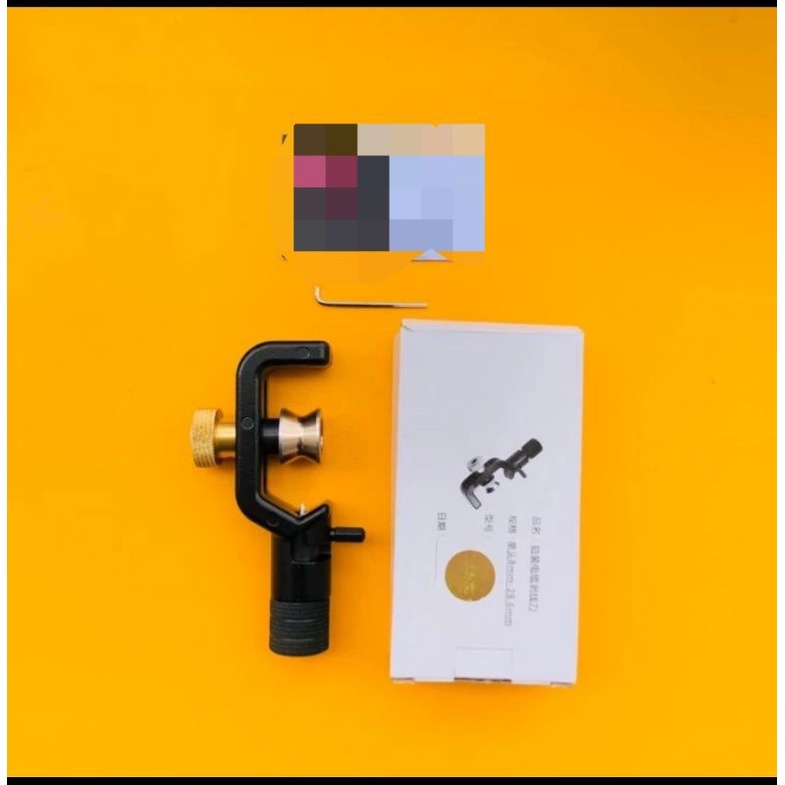

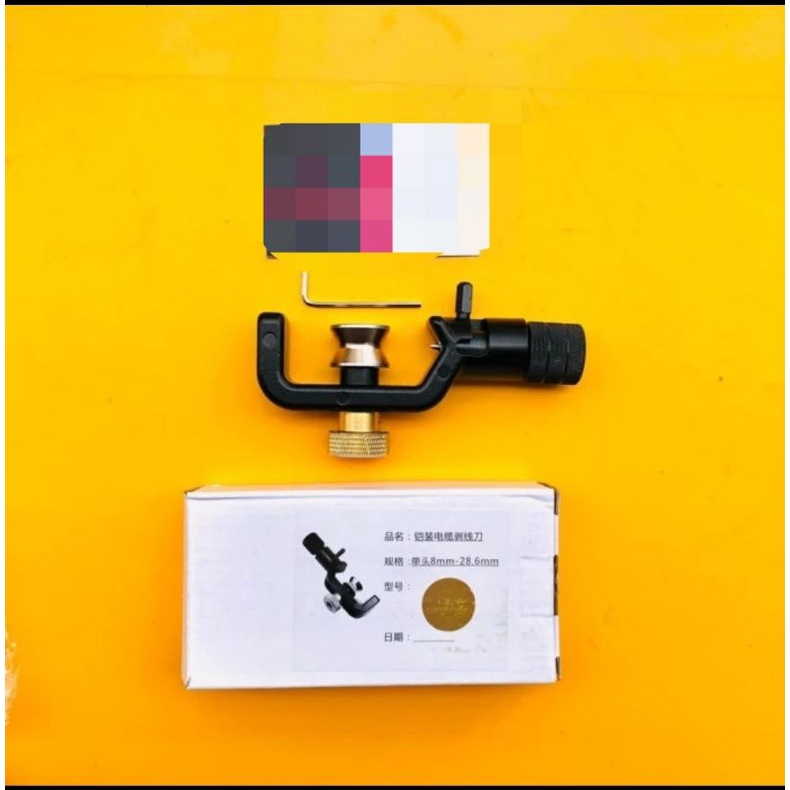

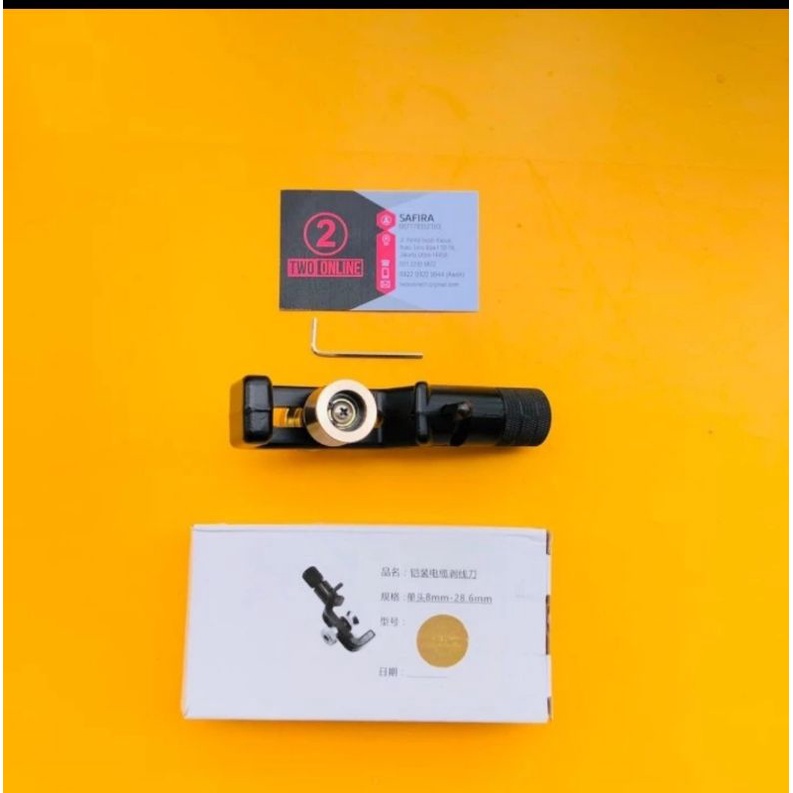

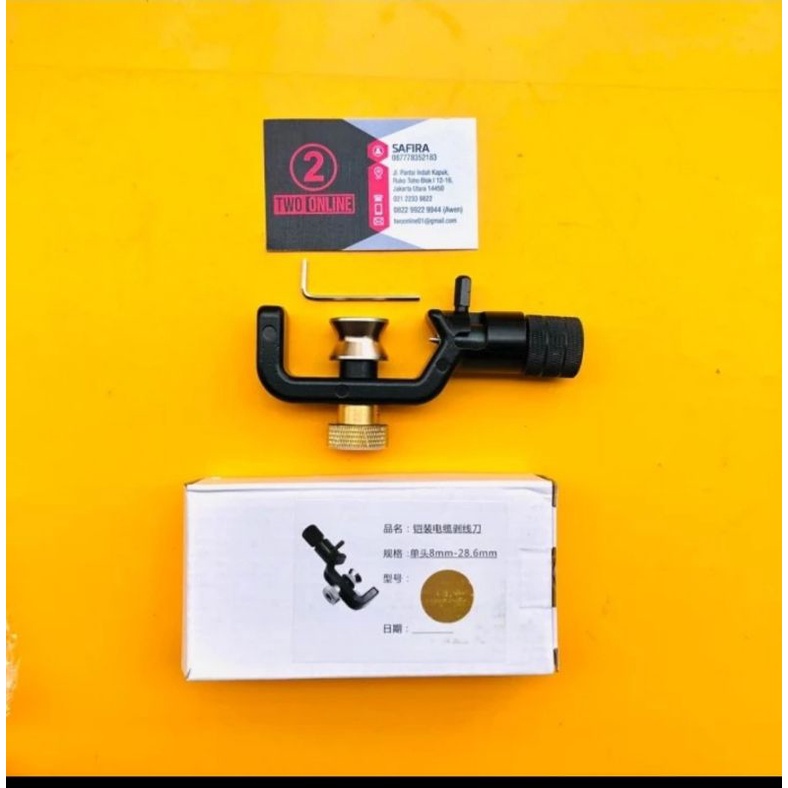

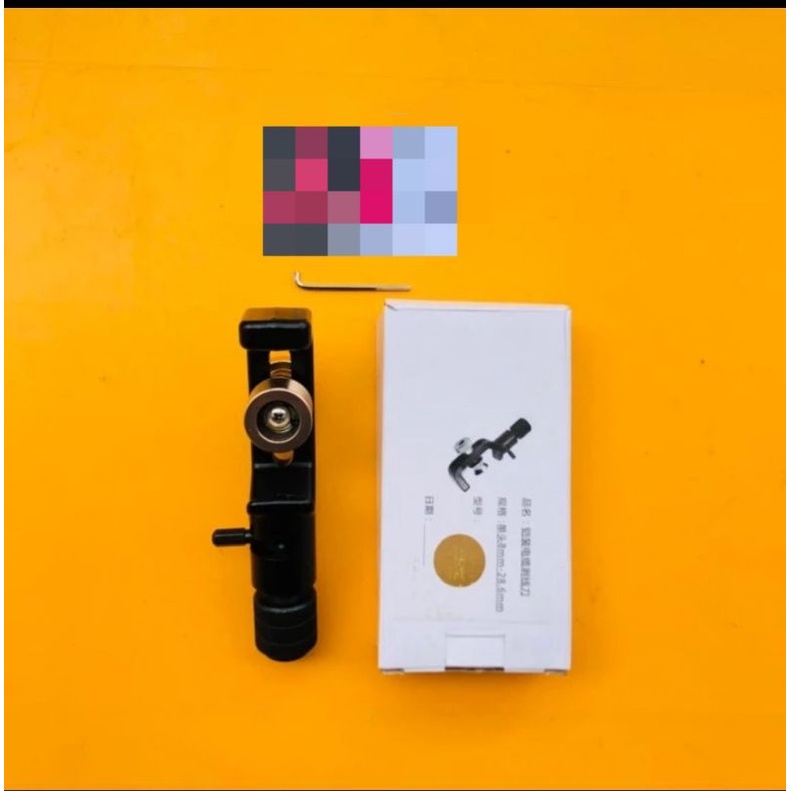

Package Contents:

1 pcs 8-28MM Armored Cable SlitterOnly the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
