ALARM DETEKTOR GAS LPG BOCOR

Detail ALARM DETEKTOR GAS LPG BOCOR

Deskripsi ALARM DETEKTOR GAS LPG BOCOR
Deskripsi ALARM DETEKTOR GAS LPG BOCOR
ALARM DETEKTOR GAS LPG BOCOR

Saran Pemasangan: 1.5 m dari tempat masak

LED INFO:
RED LED Flash: Gas Leaking
RED LED On: Sensor failure
GREEN LED On: Normal Working
GREEN LED Flash: Warm up inside sensor

Specification :
- Power source : 220 VAC
- Sensitivity : Propane LEL : 2,1 Vol % / HEL(UEL) : 9,5 Vol%
- Butane LEL : 1,8 Vol% / HEL(UEL) : 8,4 Vol%
- Methane LEL : 5,0 Vol% / HEL(UEL) : 15,0 Vol%
- Power Consumption : 1,7 Watt
- Operating Temperature : (-10) Celcius - (50) Celcius
- Ambient Humidity : Less than 95% RH
- Horn Level : 75 Decibles at 10 feet
- Standby Mode : Green LED on
- Alarm Mode : Red LED flashes and an acoustic alarm.
- Type Of Gas Sensed : Natural Gas, Town Gas, LPG
- Size : 110x69x36 mm
- Weight : 270 g
- Package : 43x110x142 mm

Aplication :
- Mounted on the wallor cabinet, about 30 cm aboe the ground for LPG or about 30 cm bellow ceiling for coal gas & natural gas use.
- Ventilation hole showed as sketch map should be installed down
- After power on, the relay output stop, the green indicator shall be flashed for preheating od sensor which is not in the normal operation of detectin.
- After 3-4 mnutes, the green indicator shall be stopped flash and the relay output shall be closed for normal operation of detection.
- When the ignitable gas is detected, the red indicatro shall be flash with alarm sound, after 10 second the relay output is open until the ignitable gas disappears.
- If sensor is invalis, the red indicator will be light and with the alarm sound continuos.

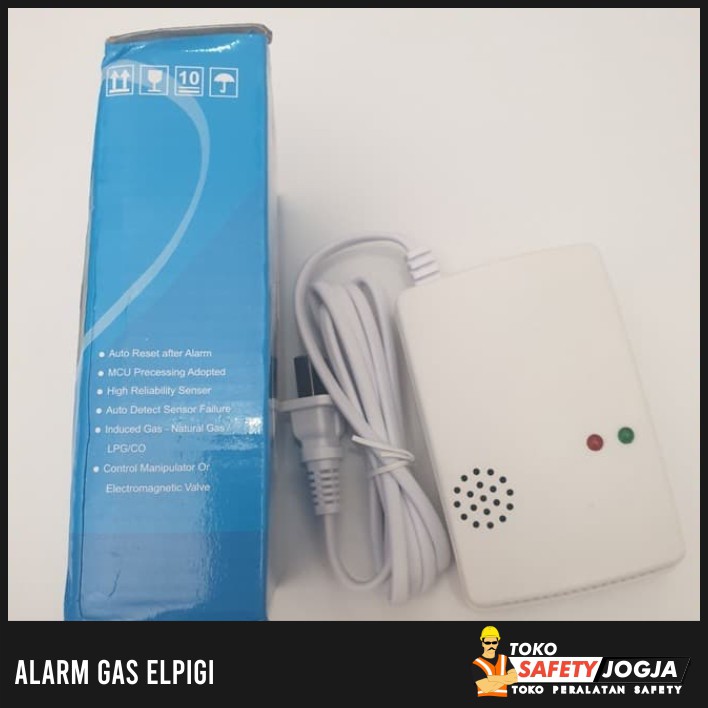

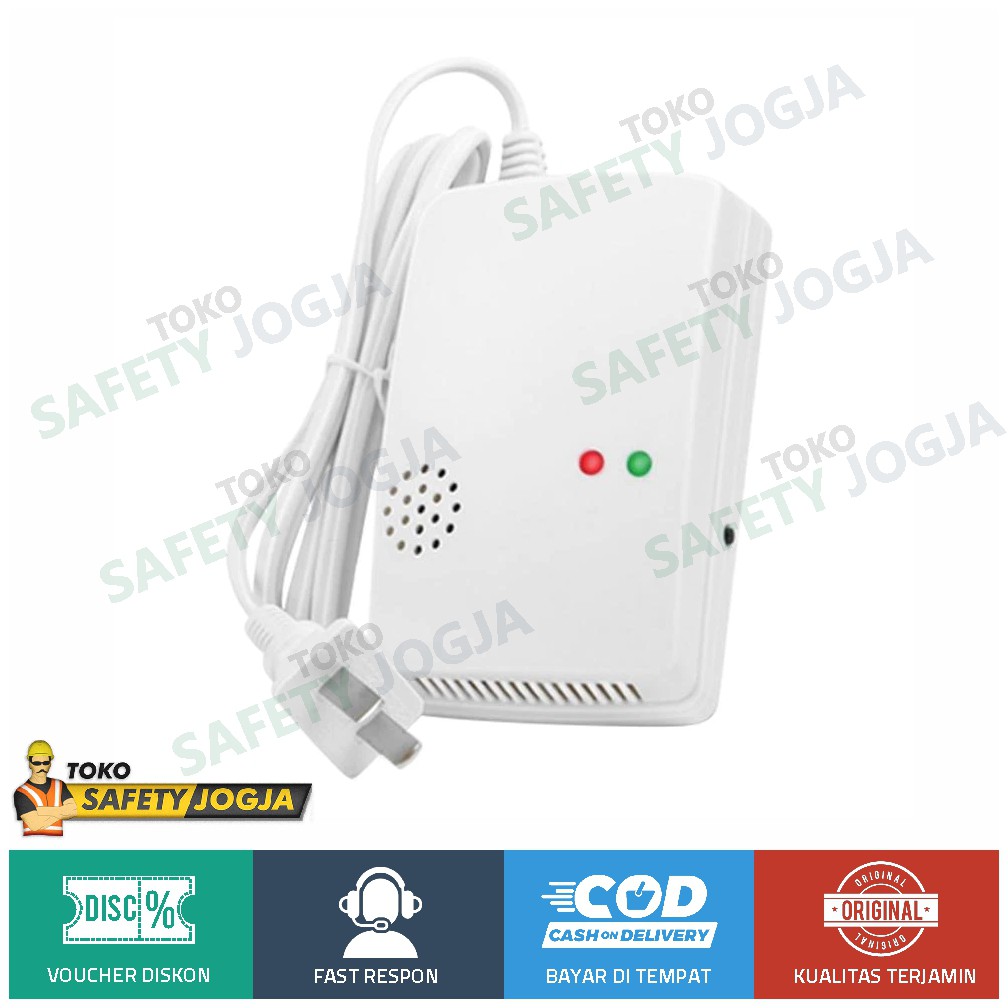

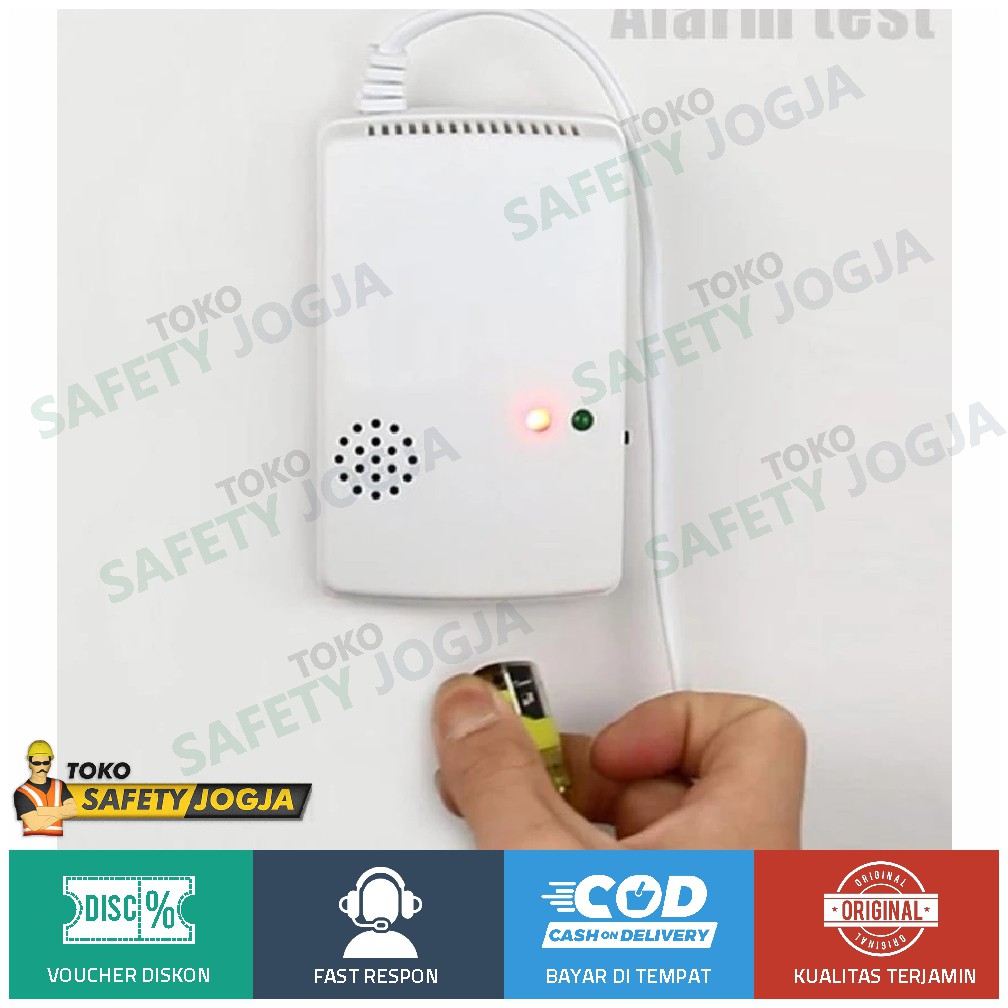

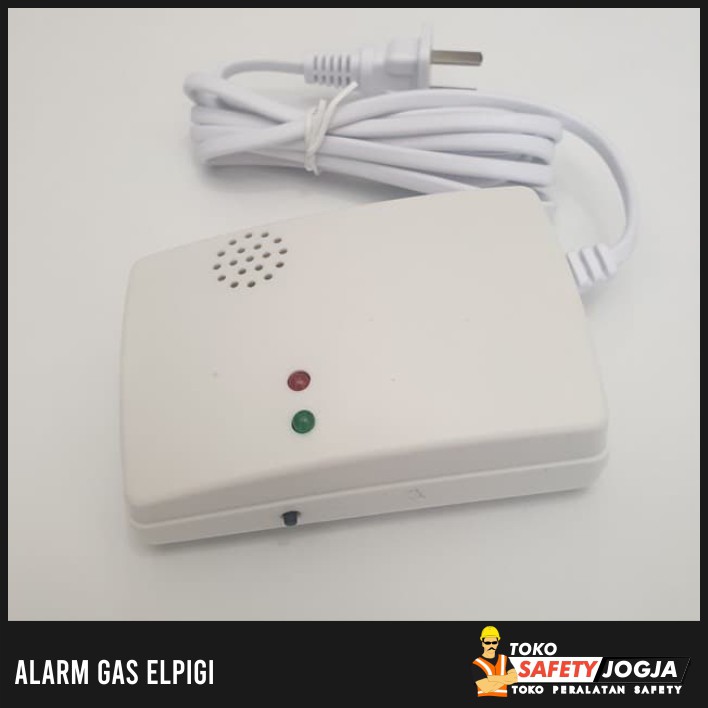

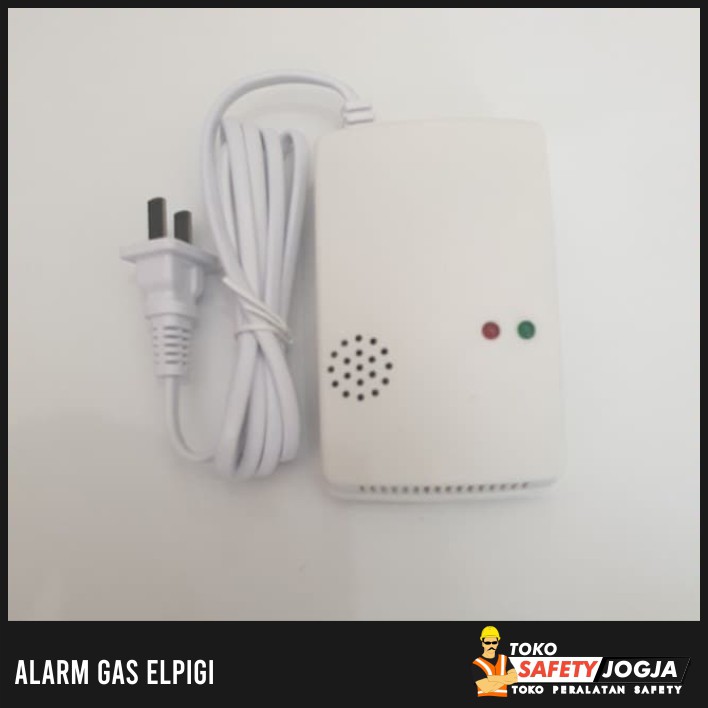

Gambar produk
