AKN88 - UNI-T UT682 Wire Tracker - Alat Scan dan Tes Kabel RJ11 RJ45

Detail AKN88 - UNI-T UT682 Wire Tracker - Alat Scan dan Tes Kabel RJ11 RJ45

UNI-T UT682 adalah sebuah alat pengukur atau Multimeter Digital yang dapat mengecek dan mengukur kabel telepon RJ11, kabel jaringan RJ45 dan Power Cable untuk mengetahui apakah kabel tersebut Conducting, Short-Circuit, Crossed atau Open-Circuit

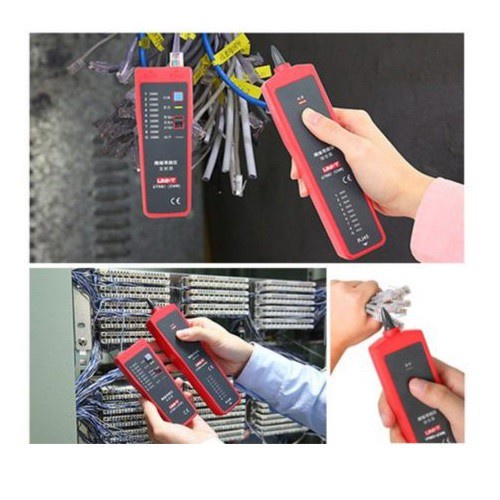

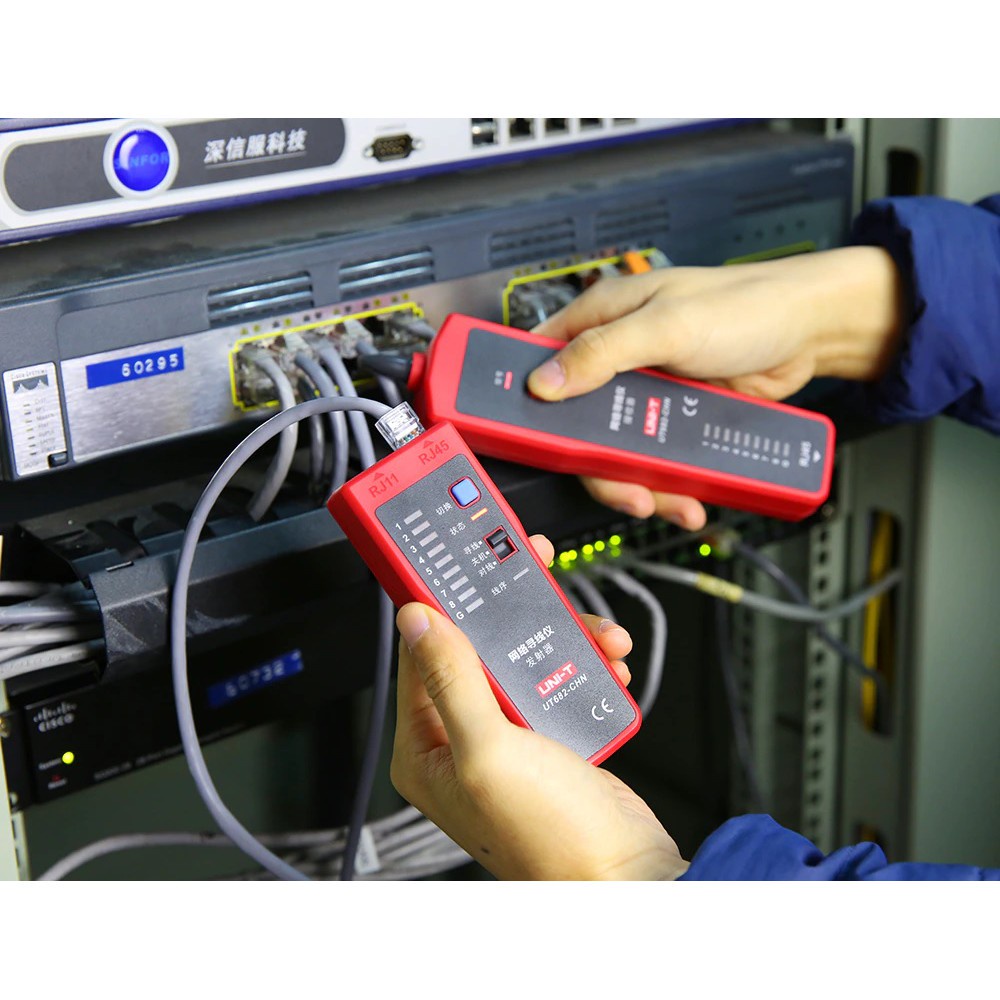

Sangat cocok bagi para teknisi untuk memasang dan pemeliharaan sistem jaringan yang menggunakan kabel jaringan, kabel komunikasi (telepon) dan Integrated Wiring Circuits.

Specification
Brand: UNI-T
Product Name: Wire Tracker
Product Model: UT682
Wire Types: LAN cable/telephone lines/coaxial cable/electric wire
Switchboard wire tracing distance: around 100m
Telephone lines tracking distance: around 3000m
Unshielded/shielded cables tracking distance: around 320m
Transmitter Output Voltage: 12V peak-peak
Transmitter Low Battery Indication: 6.6V
Max. Transmitter Working Current: 25mA
Max. Receiver Standby Current: -10mA
Max. Receiver Operating Current: Less than 40mA (AC, RMS)
Line Sequence Measurement: 9 LEDs (LED1~LED8, LED_G)
Line Sequence Measuring Speed: Fast and Slow selectable
Transmitter Input Voltage Protection: 52V DC

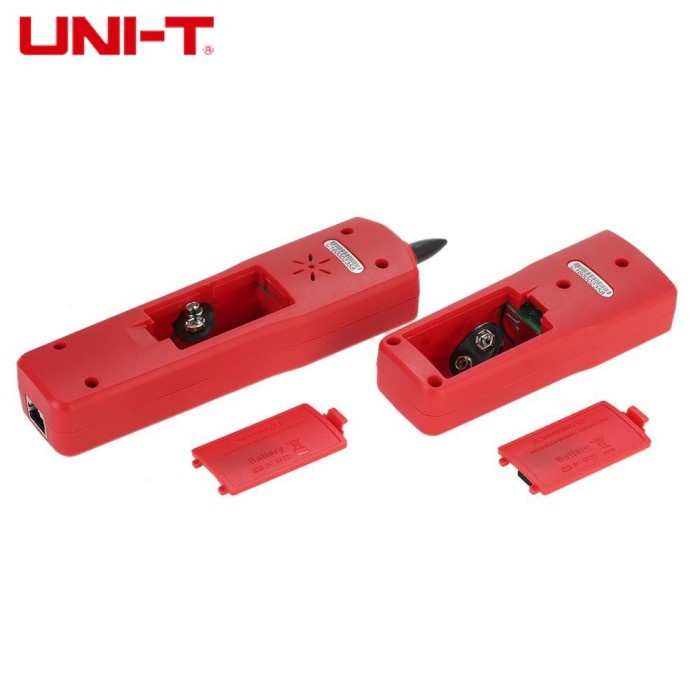

Power: 9V Battery

Main Features:

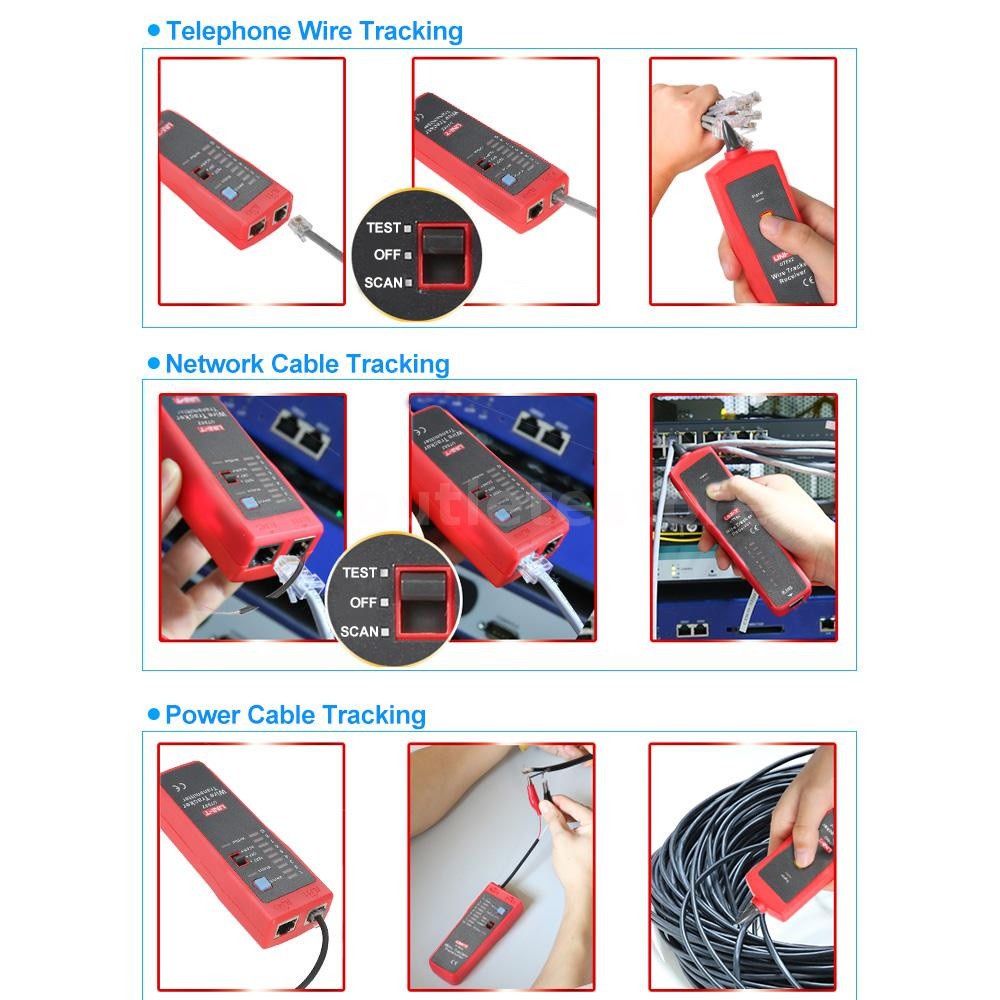

- Telephone/ethernet/power cable tracking
- DC level test, can check voltage level and polarity
- Ethernet cable wiring sequence verification
- Fast open/short circuit test
- Volume adjustment
- Headset connection for noisy environment
- Dual measurement cycle mode
- Low battery indication

Isi dalam kemasan
1x UNI-T UT682
2x 6F22 9V Battery
1x RJ45 Cable
1x RJ11 Cable
1x RJ11 Cable with alligator clips
1x Storage Bag
1x User Manual

Dimensi produk:
- Transmitter: 12.5 x 4.8 x 2.8 cm (125 gr)
- Receiver: 19.5 x 4.8 x 3 cm (153 gr)

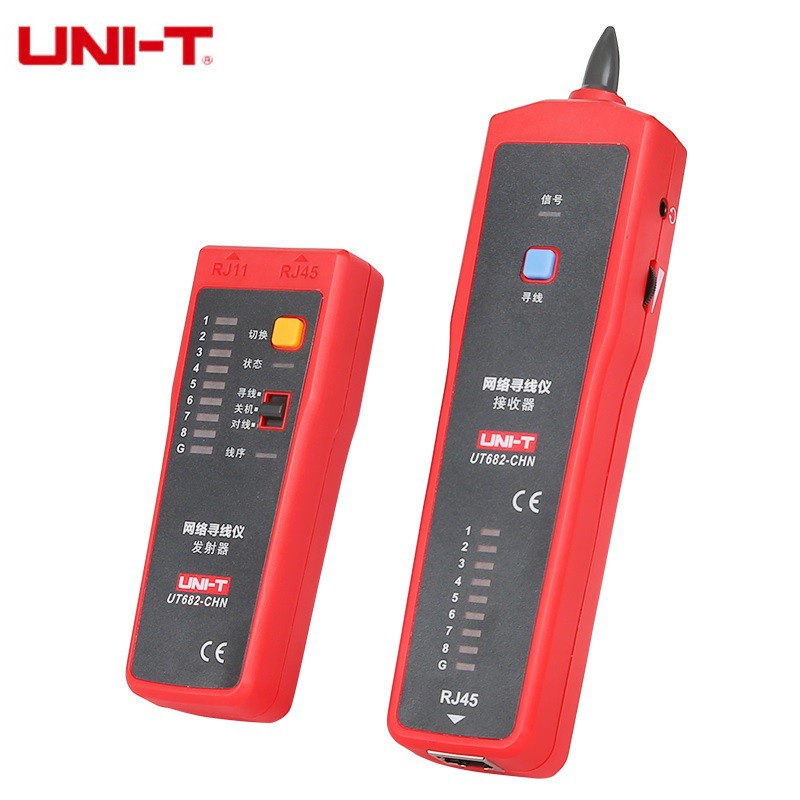

Gambar produk
