AKN88 - HT ABBREE AR-F5 Walkie Talkie Full Band 128CH Wireless Copy Frequency

Detail AKN88 - HT ABBREE AR-F5 Walkie Talkie Full Band 128CH Wireless Copy Frequency

ABBREE AR-F5 Walkie Talkie Surpports VHF(136-174MHz) UHF(400-520MHz)
PTT Scanner Radio Band Professional Frequency Decoder Ham Radio Transmitter

It can decode analog two way radio frequency and privacy code

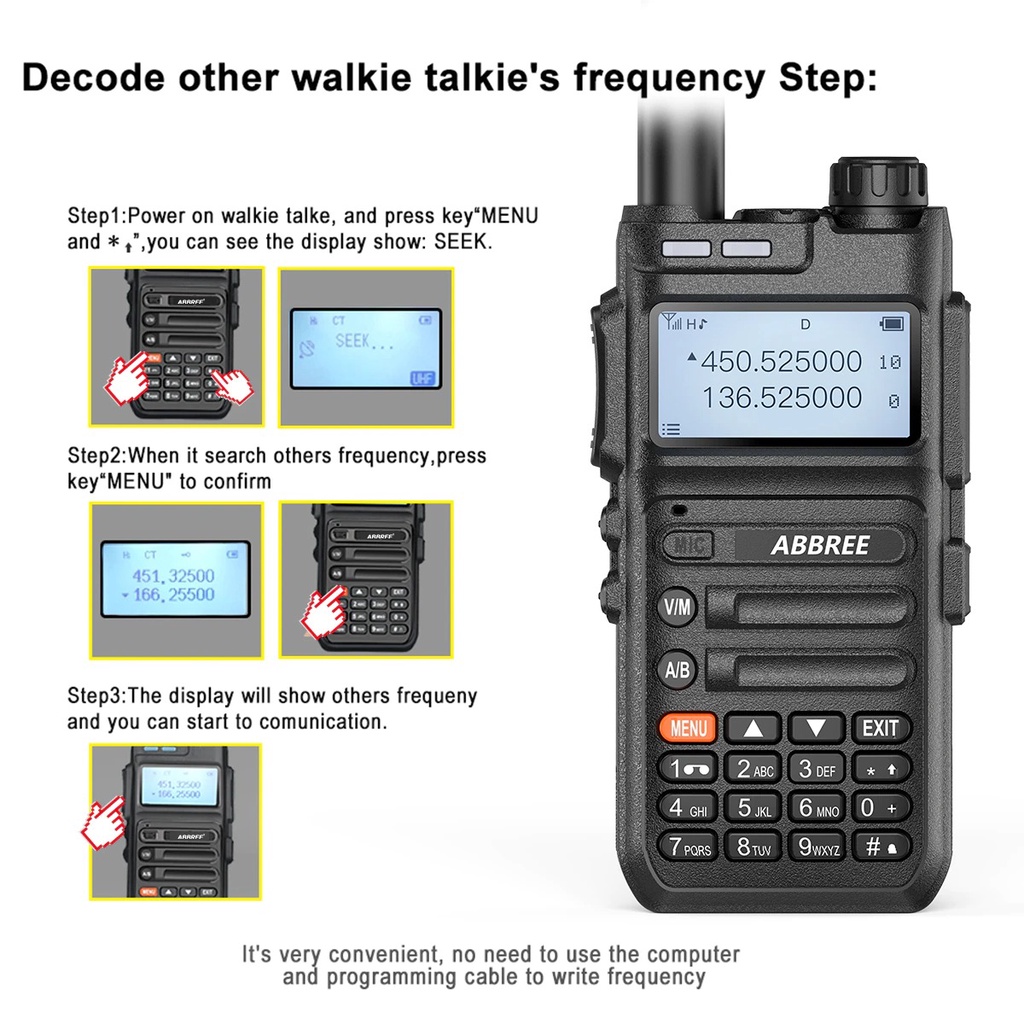

How to decode the frequency from another radio:
Press Menu button and * button, AR-F5 will search for other radio transmission frequency and privacy code. Press Menu again to save the frequency. Both walkie-talkies use the same frequency and security code to establish normal communication.
(Attention: other radios need to press PTT, and the distance between two walkie-talkies is within 30CM.)

Specification:
Frequency range 136-520MHz AND 65MHz-108MHz(Qnly commercial FM radio reception)
Memory channelsUp to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5/5/6.25/10/12.5/25KHz
Antenna impedance 50 OHM
Operating temperature -20°C-60°C
Supply voltage Rechargeable Lithium-Ion 7.4V
Battery Capacity 5800mAh
Consumption in standby <=75mA
Consumption in reception 380mA
Consumption in transmission <=1.4A
Mode of operation Simplex or semi-duplex
Dimensions 121*61*33mm
Size(include battery, exclude antenna) 223g(approximate)

Transmitter :

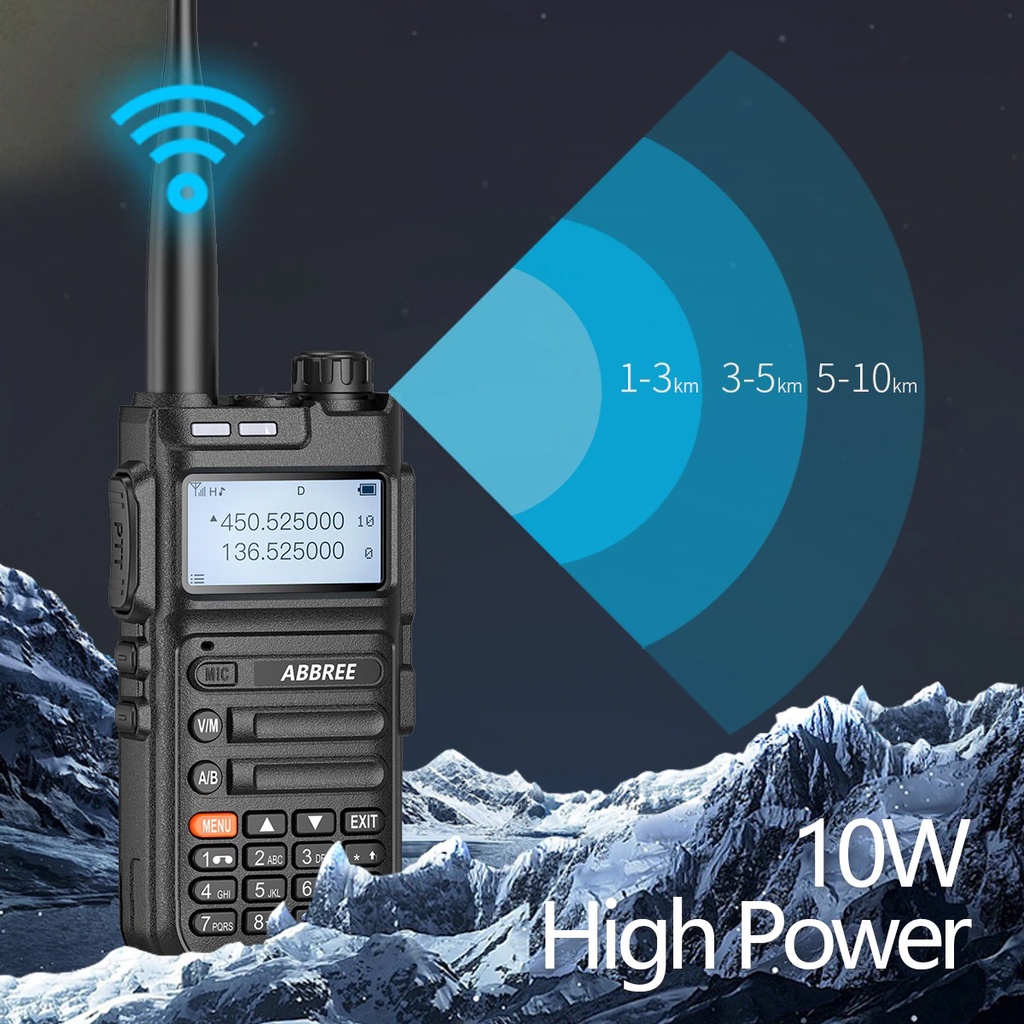

RF power 10W
Modulation type FM
Emission class 16K øF3E/11KøF3E(W/N)
Maximum deviation <=±5KHz/<=±2.5KHz(W/N)
Spurious emission <-60dB

Receiver :
Receiver sensitivity 0.2µV (at 12 dB SINAD)
Inter modulation 60dB
Audio output 1000mW
Adjacent channel selectivity 65/60dB



Feature:
Frequency: 136-520MHz
Dual display, dual standby
128 channels
High,medium and low power switch
Emergency alarm and ANI identification through DTMF
Time-out Timer (TOT)
One-touch Frequency measurement function
VOX
Channel scan, CTCSS/DCS scan
Equipped with the relay pilot and scramble function
Reading and writing frequency password protection
Manual input frequency and programming
FM Radio

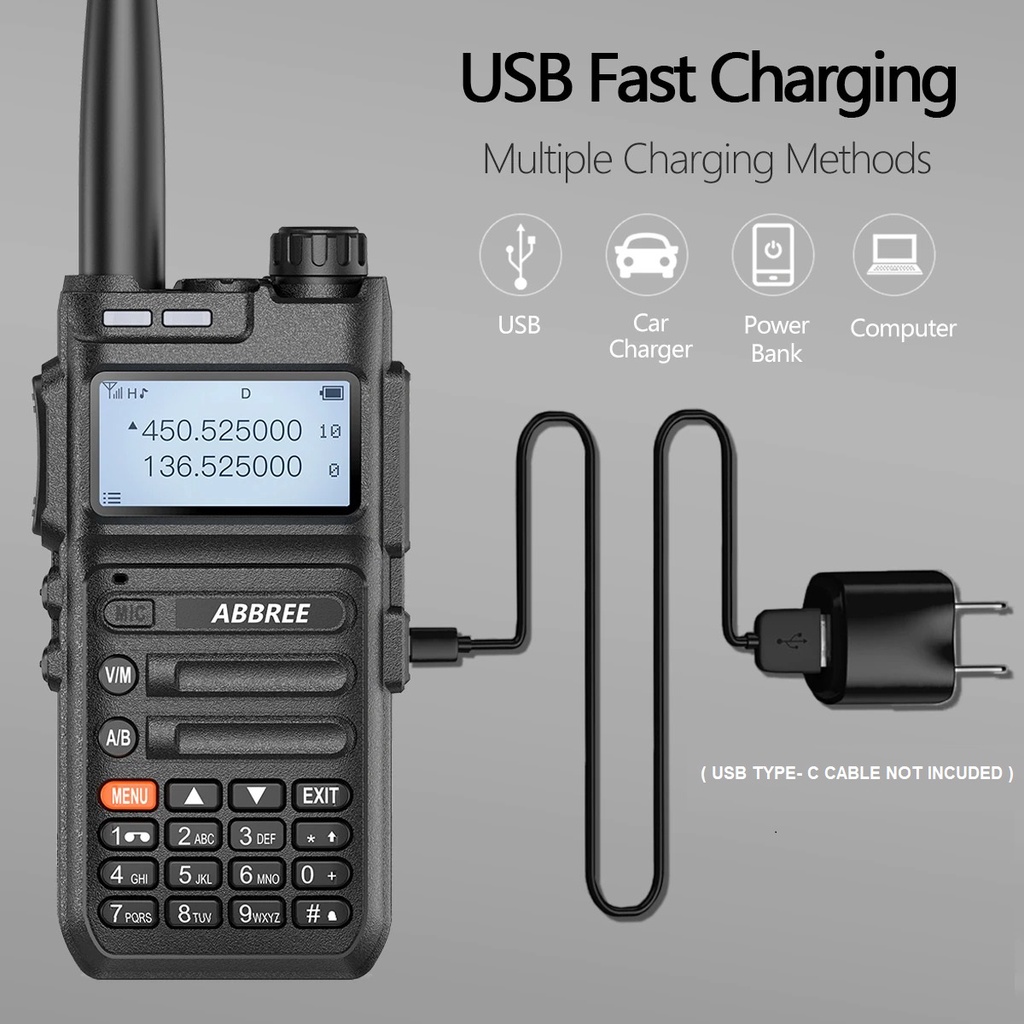

USB charging

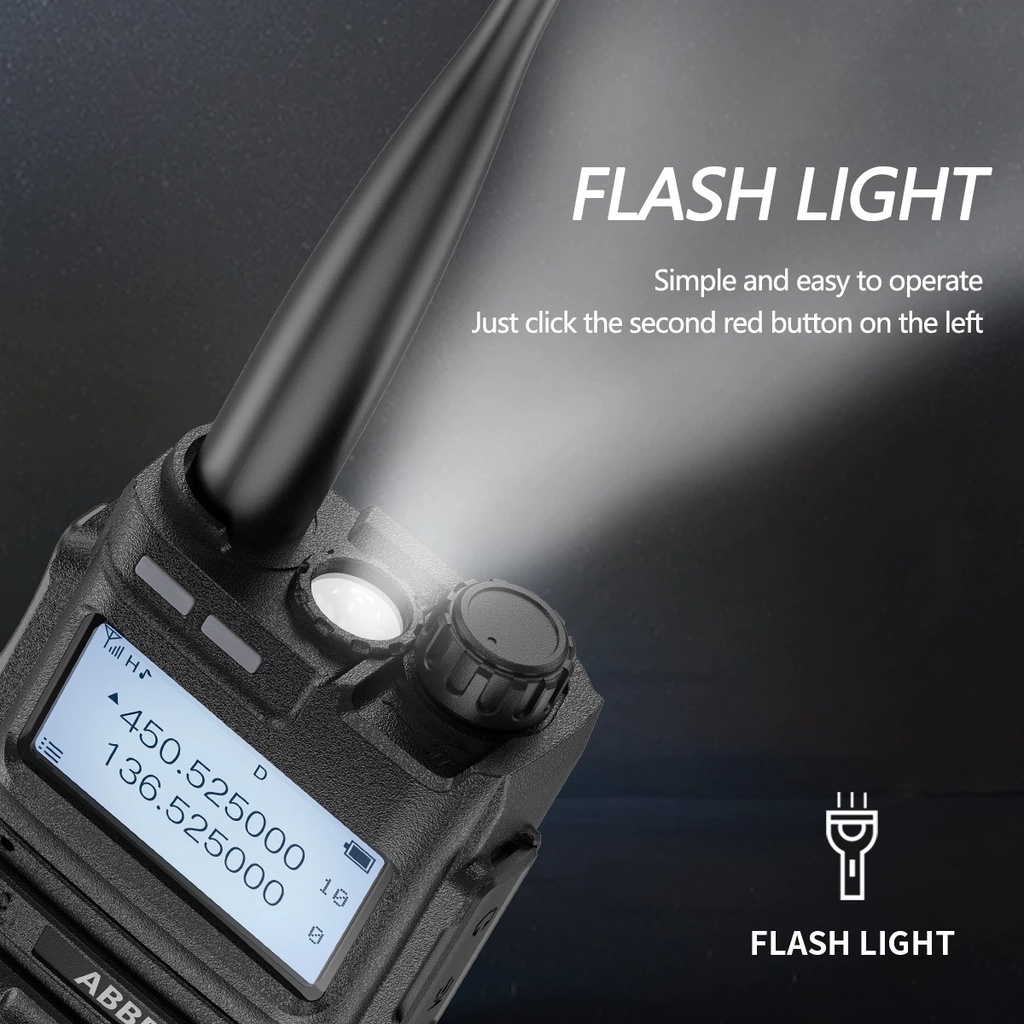

Flashlight

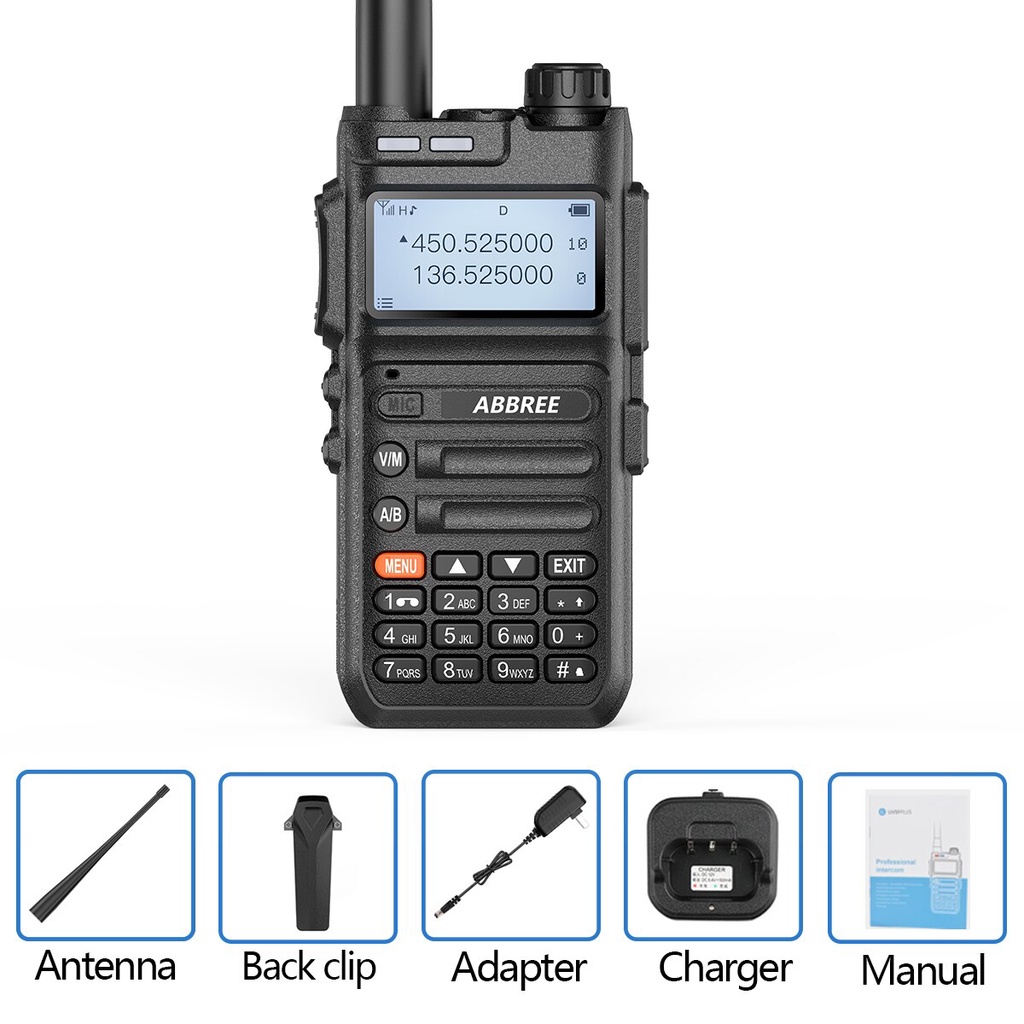

Package included:

1 x walkie talkie
1 x Battery
1 x Antenna
1 x Belt Clip
1 x Adapter
1 x Desktop Charger
1 x User Manual
