Aiyima TPA3255 Power mono Amplifier 600W Audio Board Class D

Detail Aiyima TPA3255 Power mono Amplifier 600W Audio Board Class D

Video perkenalan produk Aiyima TPA3255 Power mono Amplifier 600W Audio Board Class D. Sumber: Shopee.

Features:

1. Using original TPA3255

2. Broken power support.

3. High-precision chip resistors are selected for the resistors to ensure a good signal-to-noise ratio of the whole machine.

4. Adopt the special magnetic ring inductor for audio to ensure the sound is clear and powerful.

5. The PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and the whole process of spraying tin to ensure good passing performance of large and small currents. First-class PCB quality.


Basic performance parameters:

Working method: Class D

Quiescent current: 300mA

Work efficiency:.>90%


Output Power:

450W/3Ω, distortion 10%, peak 600W

Frequency response: 20Hz to 20KHz

Dynamic range: >100 dB

Signal to noise ratio: (SNR)> 111dB

Working voltage: DC24-48V switching power supply, 10A or more

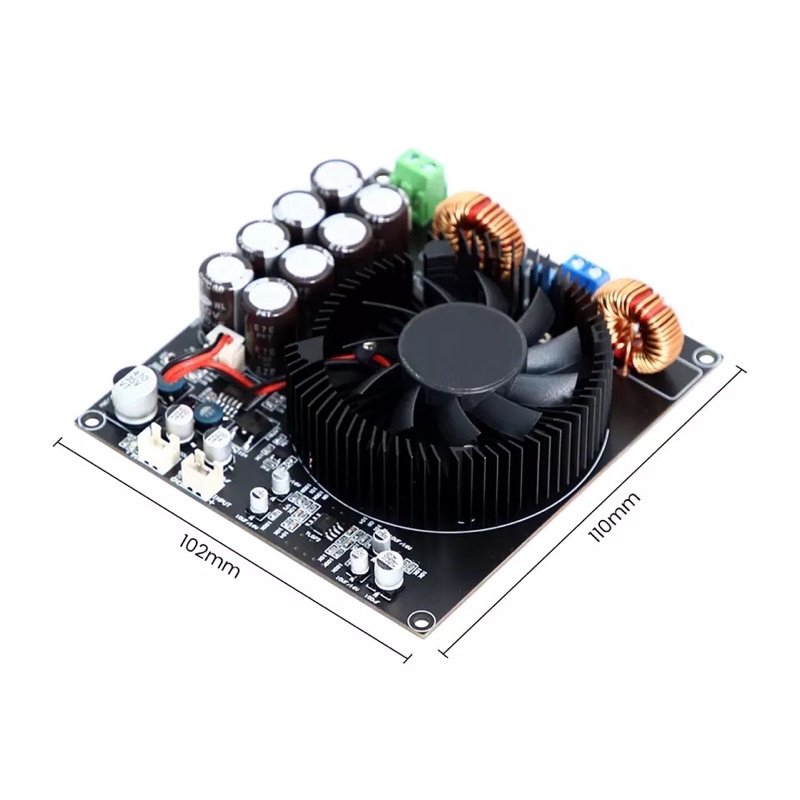

PCB size: 110*102MM


Package included:

1Pcs TPA3255 Power Amplifier

Gambar produk
