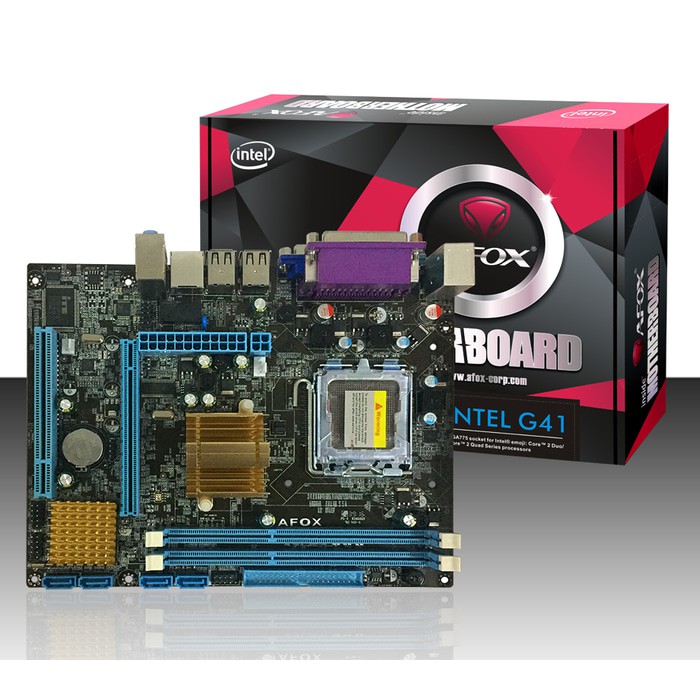

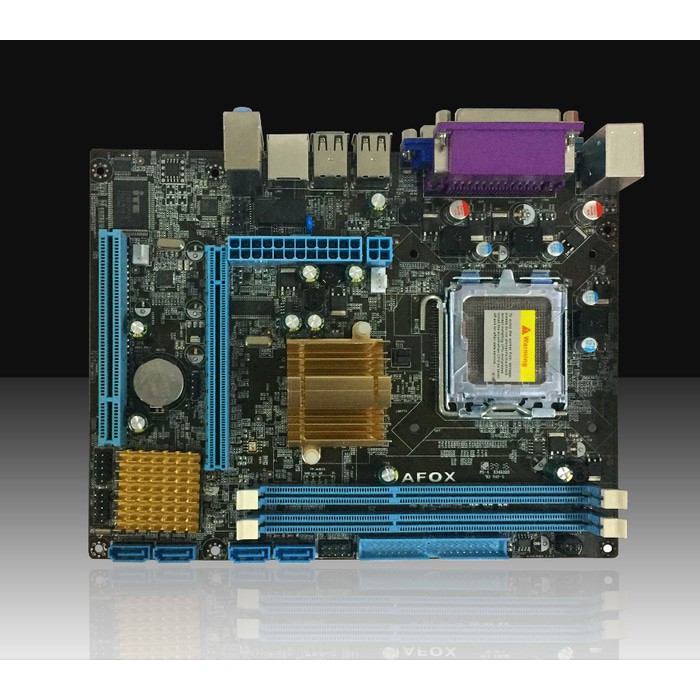

AFOX IG41-MA6 (LGA 775, G41, DDR3)

Detail AFOX IG41-MA6 (LGA 775, G41, DDR3)

Processor : Support Intel LGA775 Core 2 Duo/Core Duo/Pentium D/ Pentium 4/Celeron D Processor
Chipset :
-North Bridge: Intel G41 Chipset
-South Bridge: Intel ICH7 Chipset
Memory Support : Dual channel DDR3 800/1066/1333
Dimm : 2 x Memory Slots (Max. up to 4GB each)
Onboard Graphics : Integrated Intel® GMA X4500 graphics
LAN : Realtek 8103E 10/100M LAN on board
Audio : Chip integrated by Realtek® ALC662
Slot :
-1 x PCI Express x16 Slot
-1 x PCI Slot
Storage :
-4 x SATA II port
-1 x IDE port
Internal I/O Ports :
-1 x 24-pin ATX Power Connetor
-1 x 4-pin ATX 12V Power Connetor
-2 x USB 2.0 pinheaders support additional 4 USB 2.0 ports
-1 x Front panel audio connector
-1 x System Panel connector
Back I/O Ports :
-1 x PS/2 keyboard
-1 x PS/2 mouse
-1 x VGA
-1 x COM
-1 x Parallel Port
-4 x USB 2.0
-1 x LAN Port
-3 x Audio jack
BIOS : EFI BIOS
Form Factor : Micro ATX - 211*168 mm
PCB color : Black

-All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
-PCB color and bundled software versions are subject to change without notice.
-Brand and product names mentioned are trademarks of their respective companies.


Dual-Channel DDR3 1333 / 1066 support
This motherboard supports DDR3 memory that features data transfer rates of 1333 (O.C.)/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications

SATA 3Gb/s
This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval.

Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
