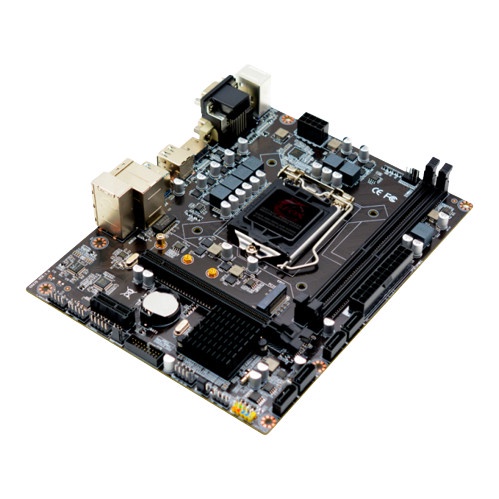

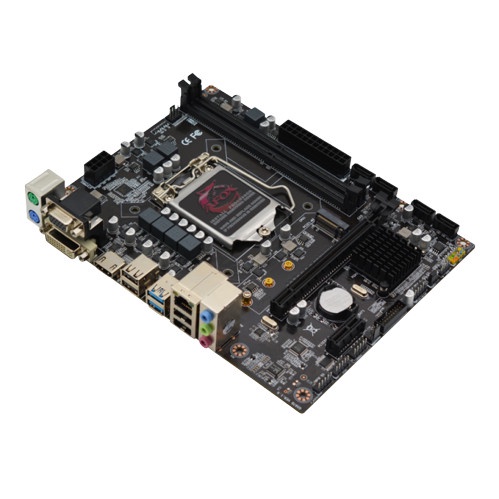

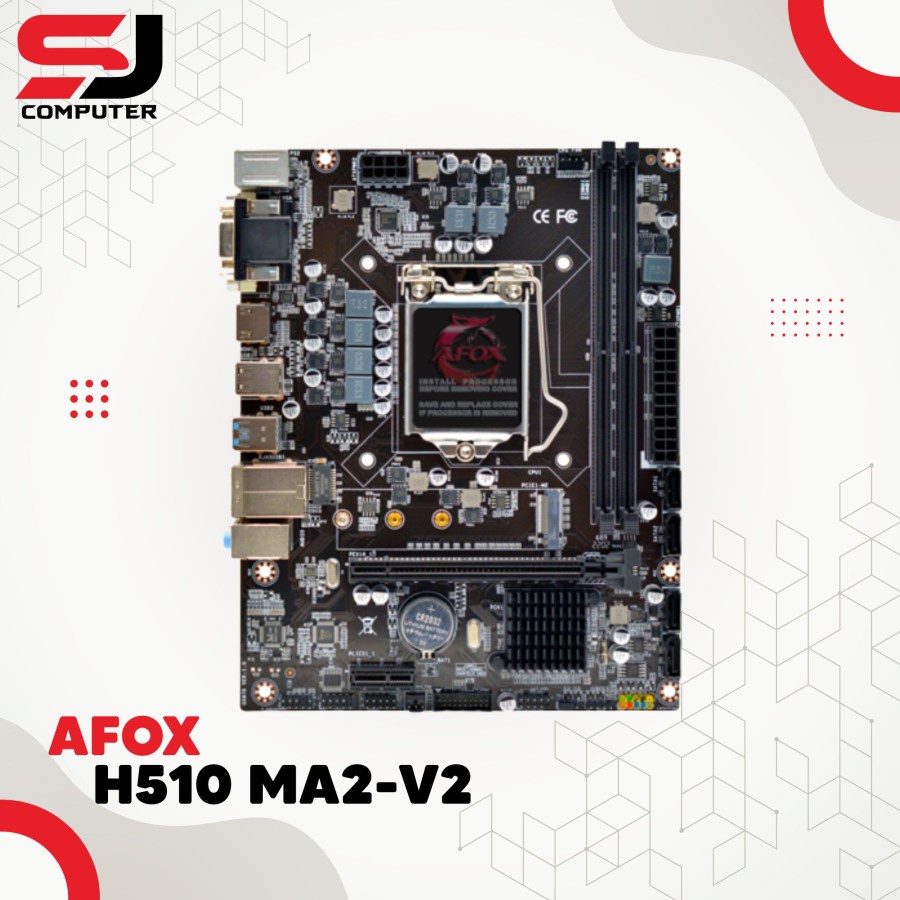

AFOX H510 MA2-V2 Micro ATX Motherboard DDR4 LGA 1200

Detail AFOX H510 MA2-V2 Micro ATX Motherboard DDR4 LGA 1200

AFOX H510 MA2-V2 Micro ATX Motherboard DDR4 LGA 1200


Platform INTEL Socket 1200

Model Name IH510-MA2-V2
Chipset

Intel® H510
CPU Supports

Intel Core™ i3 / Core™ i5 / Core™ i7 / Core™ i9 Processors Supports Intel 10th /11th Generation (CPU up to 125 watts)
FSB

2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz
Memory

Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C.) / 3000(O.C.) / 3200(O.C.) MHz 1.2V
Dimm

2 x Memory Slots (Max. capacity of system memory 64GB)
Onboard Graphics

Intel® HD Graphics
PCI/PCI-E Slots

1 x PCI Express x16 4.0 slot, 1 x PCI Express x1 slot
SATA

4 x SATA III
1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
IDE

N/A
Audio

Realtek 662 on board, Supports 6-channel audio-out
LAN

Realtek RTL8111 1000Mbps Ethernet on board
Back Panel I/Os

1 x HDMI Port
1 x DVI Port
1 x D-Sub (VGA) Port
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
3 x HD Audio Jacks (Line in / Front Speaker / Microphone)
ON-Board Pinheaders/Connectors

1x USB 2.0 pinheader (supports additional 2 USB 2.0s)
1 x USB 3.0 pinheader (supports additional 2 USB 3.0s)
1 x Front Panel Audio pinheader
1 x Com
1 x DEBUG1
BIOS

UEFI BIOS
Form Factor

Micro-ATX (17*22cm)
Mounting

6 mounting holes
Accessories

1 x SATA II cable
1 x I/O Rear Panel
1 x User Manual
1 x Driver CD
