ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE

Elektronik > Elektronik Lainnya > ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:EasyWare ElectronicsLihat semua produk Elektronik oleh EasyWare Electronics
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000527

ADS1115 16-Bit ADC – 4 Channel with Programmable Gain Amplifier is mostly used for microcontrollers project which needs an analog-to-digital converter or when you want a higher-precision ADC. ADS1115 16-Bit ADC- provides 16-bit precision at 860 samples/second over I2C. The chip can be configured as 4 single-end input channels or two differential channels.

Ringkasan :
- Wide Supply Range: 2.0v To 5.5v
- Low Current Consumption
- Continuous Mode: Only 150µa Single-shot
- Auto Shut-down
- Programmable Data Rate: 8SPS to 860SPS
- It has Internal low-drift voltage reference

Package :
- 1x ADS1115 16-Bit ADC- 4 Channel with Programmable Gain Amplifier

Gambar produk

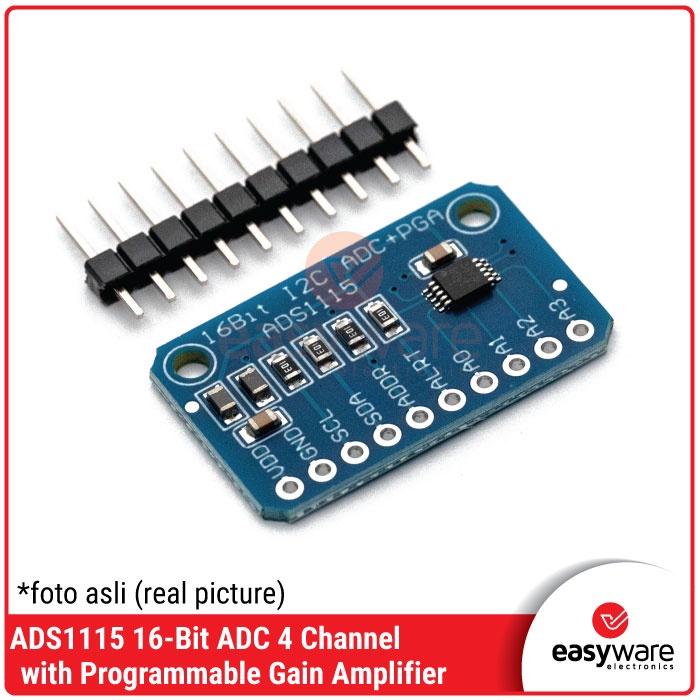

ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE

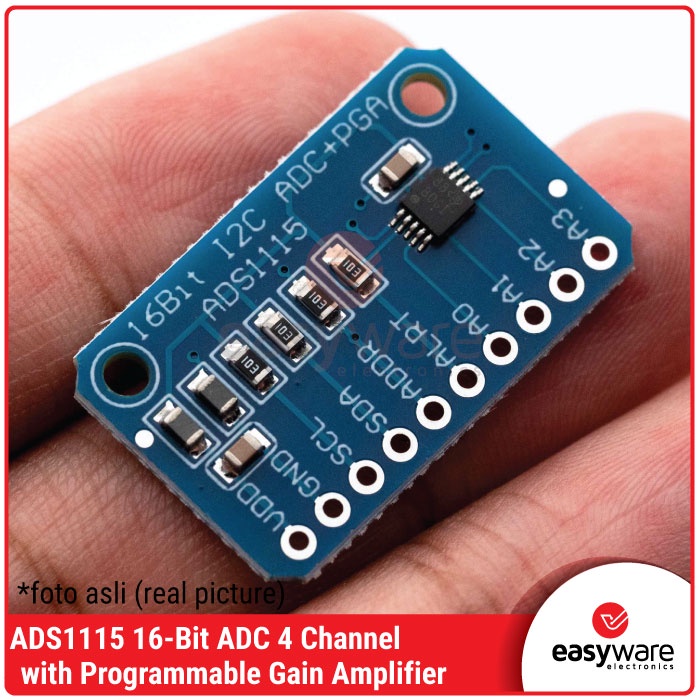

ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE

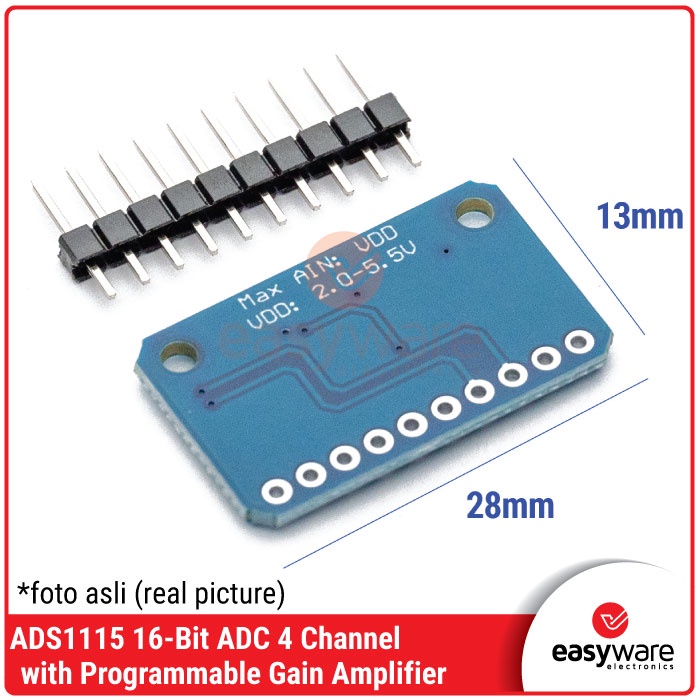

ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE

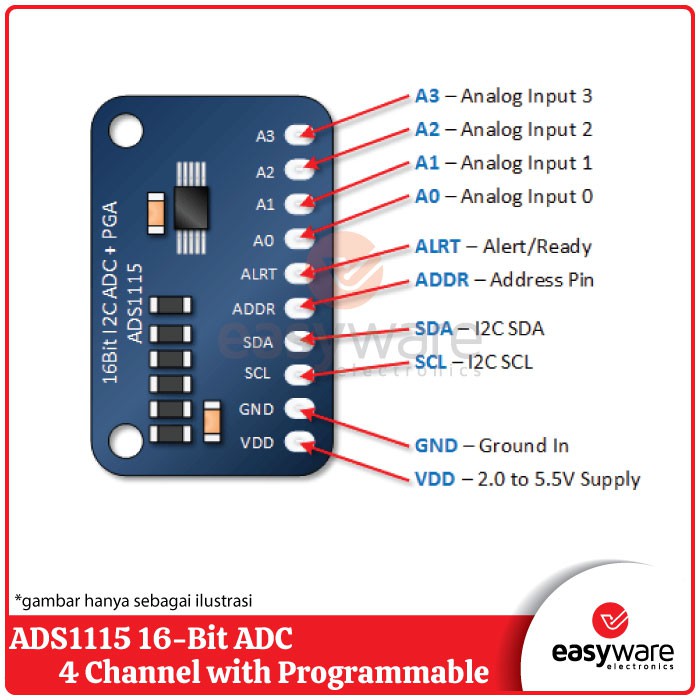

ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
ADS1115 16 BIT I2C ADC 4 CHANNEL ANALOG TO DIGITAL MODULE
Lihat lebih banyak informasi produk
