Detail Adjustable voltage stabilizer module (528)

Electrical parameters:
Input voltage range: DC5V-35V, AC5V-22V

Output voltage range: DC1.25V-30V (continuously adjustable)

Output current range: Maximum continuous working current <3A (input and output DC voltage difference does not exceed 10V), when the input and output DC voltage difference exceeds 10V, please ensure that the output current is <2A, and the peak current can reach 5A
Operating temperature range: 0°C-100°C (in order to prevent over-temperature damage, you can increase the heat dissipation by yourself or use other active heat dissipation methods)
Dimensions (length, width and height): 86mm X 48mm X 32mm
Note: The voltage regulator LM338K of this board is a disassembled part. Please note that it will be burnt if the output current does not exceed 2A because of the brand new domestic LM338K

Gambar produk

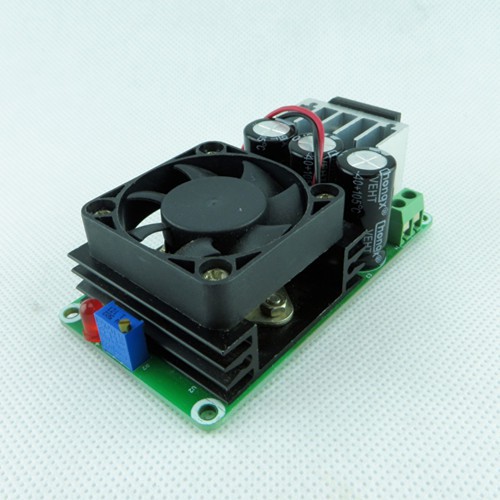

Adjustable voltage stabilizer module (528)

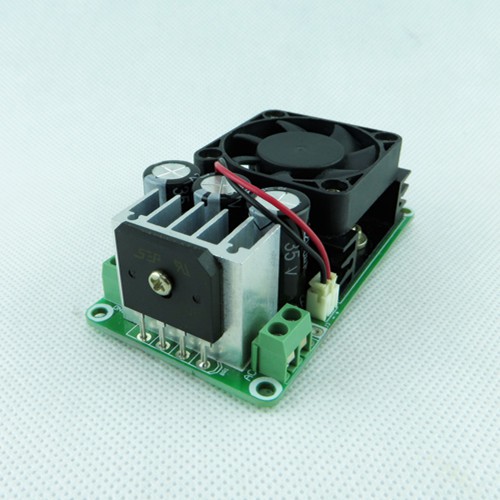

Adjustable voltage stabilizer module (528)

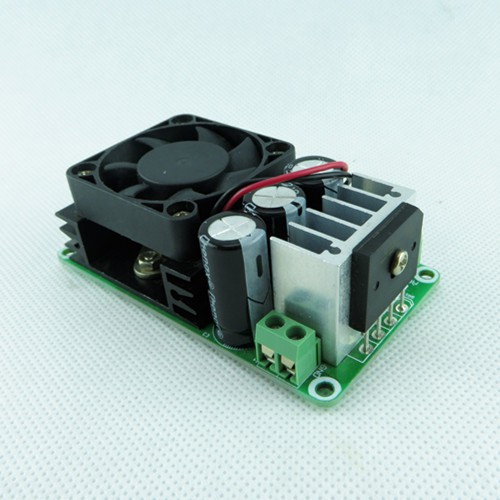

Adjustable voltage stabilizer module (528)
Adjustable voltage stabilizer module (528)
Adjustable voltage stabilizer module (528)
Adjustable voltage stabilizer module (528)
