Adjustable Step Up LM2577 Step-up Boost Converter Module + Voltmeter

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Adjustable Step Up LM2577 Step-up Boost Converter Module + Voltmeter
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:RAFTECHLihat semua produk Audio oleh RAFTECH
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Adjustable Step Up LM2577 Step-up Boost Converter Module + Voltmeter

IC ORIGINAL LM2577S Lebih bagus dari XL6009

Specification:
1. Module nature: non isolated boost module
2. Input voltage: 3-34V
3. Output voltage: continuously adjustable (4-35V)
4. Output current: 2.5A (MAX)
5. Input current: 3A (MAX)
6. Module size: 49 (mm) x26 (mm)
7. Input mode: IN+ input positive stage, IN- input negative pole
8. Output mode: OUT+ output positive stage, OUT- output negative pole
9. Adjustment mode: first, the correct connection between the input power supply (3-34V,)
and then use a meter to monitor the output voltage and adjust the potentiometer
10. Output voltage: 4-35V continuously adjustable

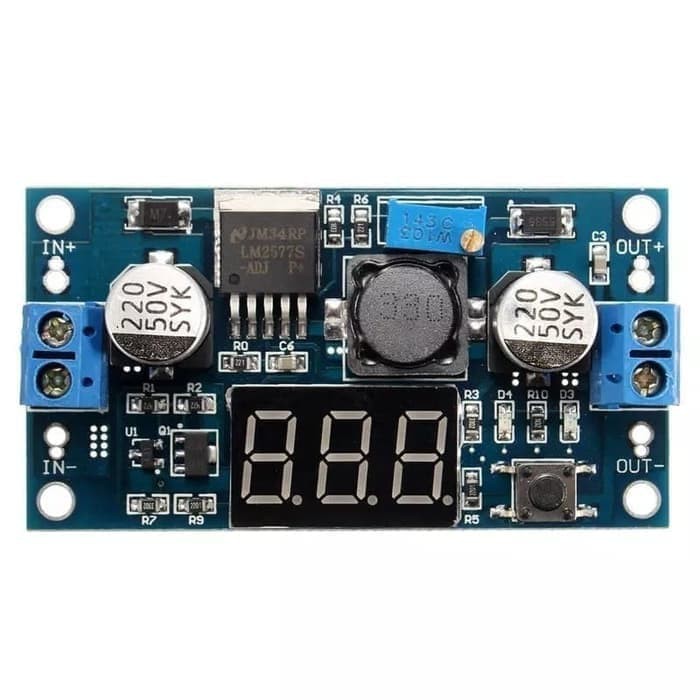

Gambar produk

Adjustable Step Up LM2577 Step-up Boost Converter Module + Voltmeter
Adjustable Step Up LM2577 Step-up Boost Converter Module + Voltmeter
