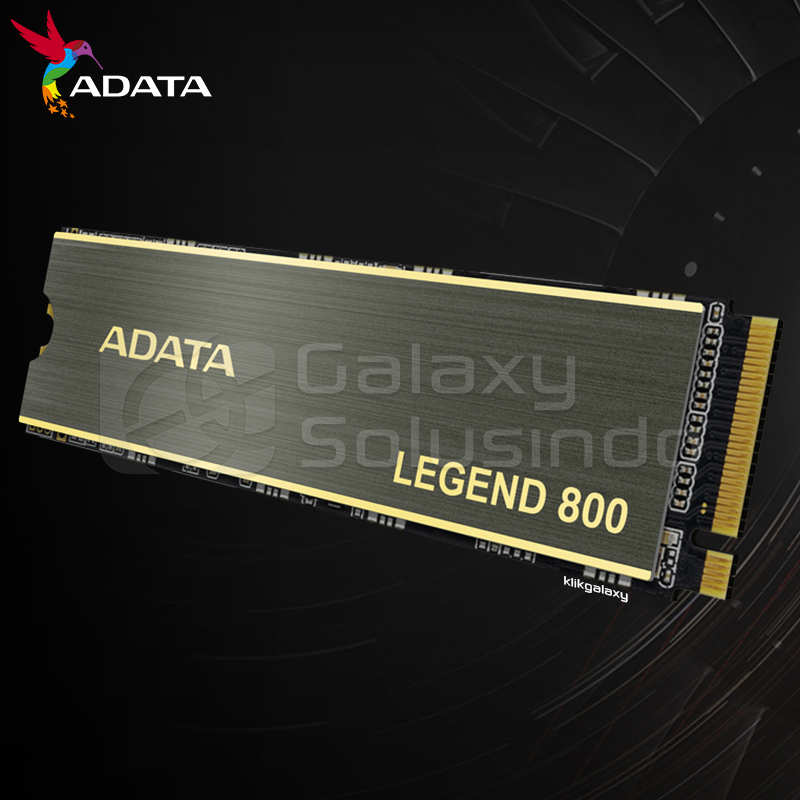

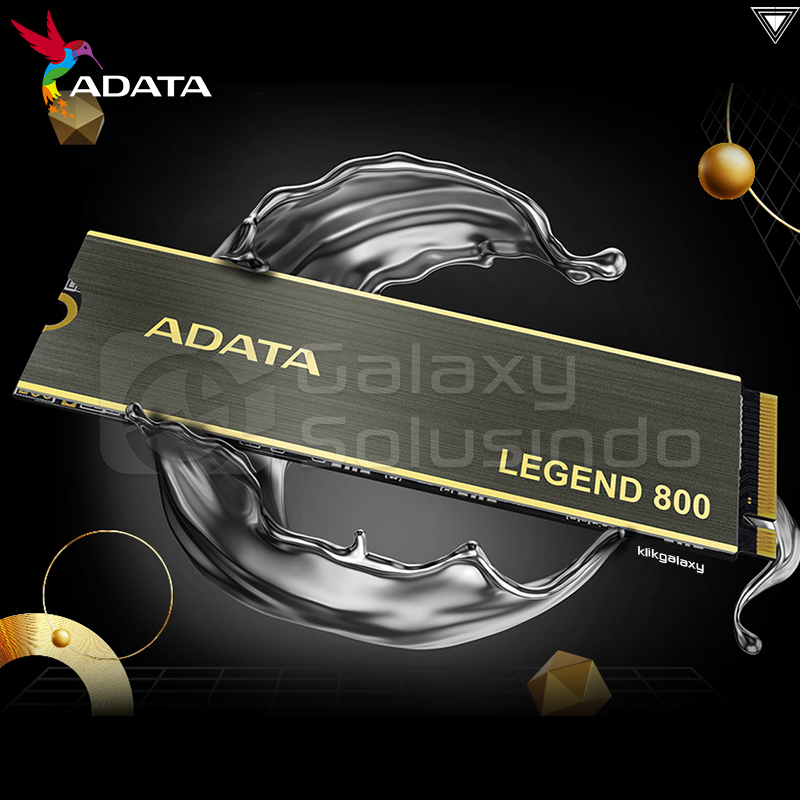

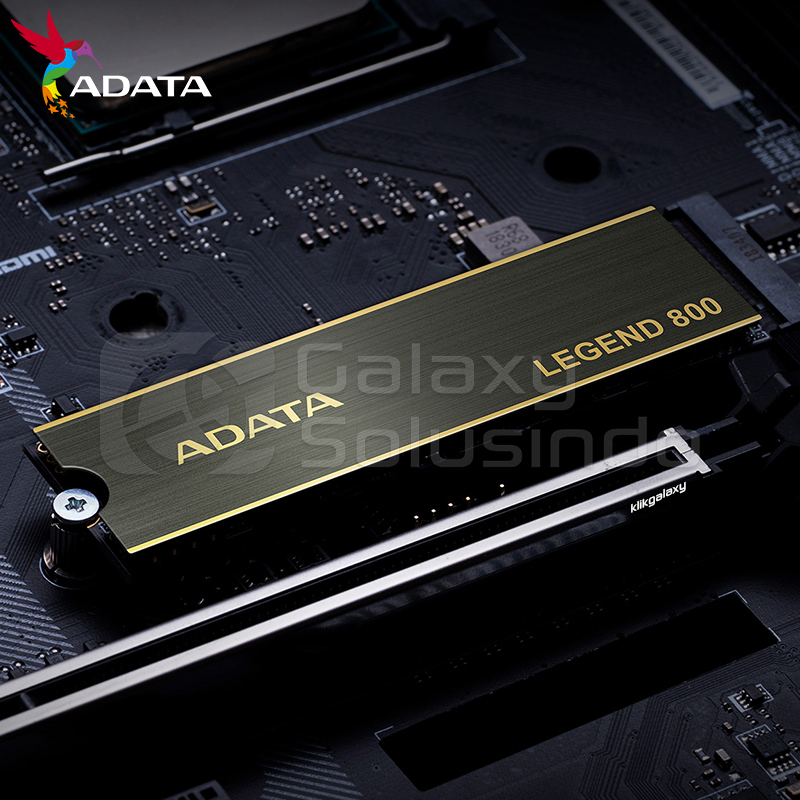

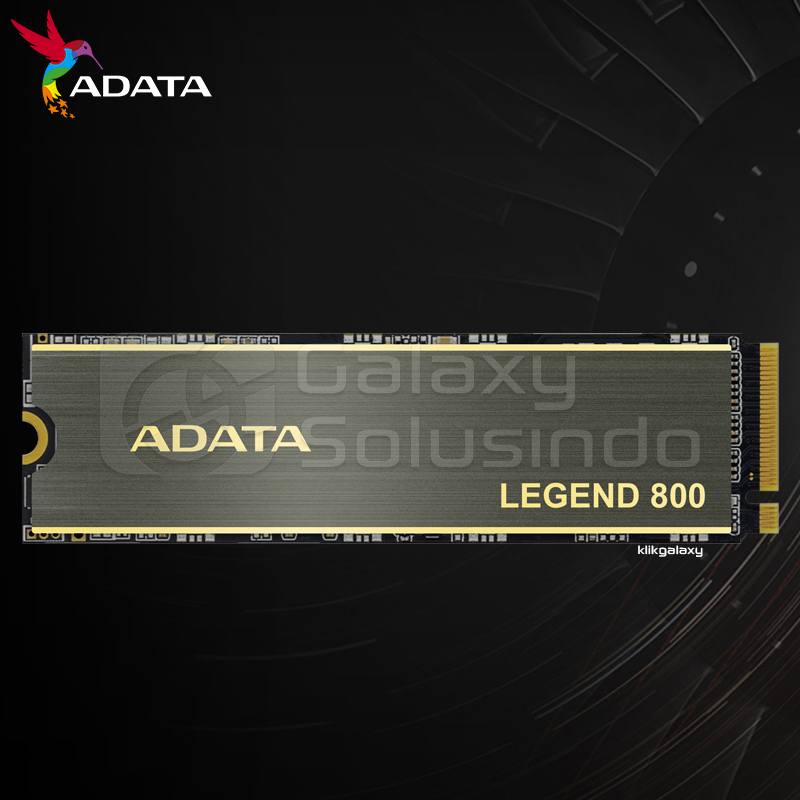

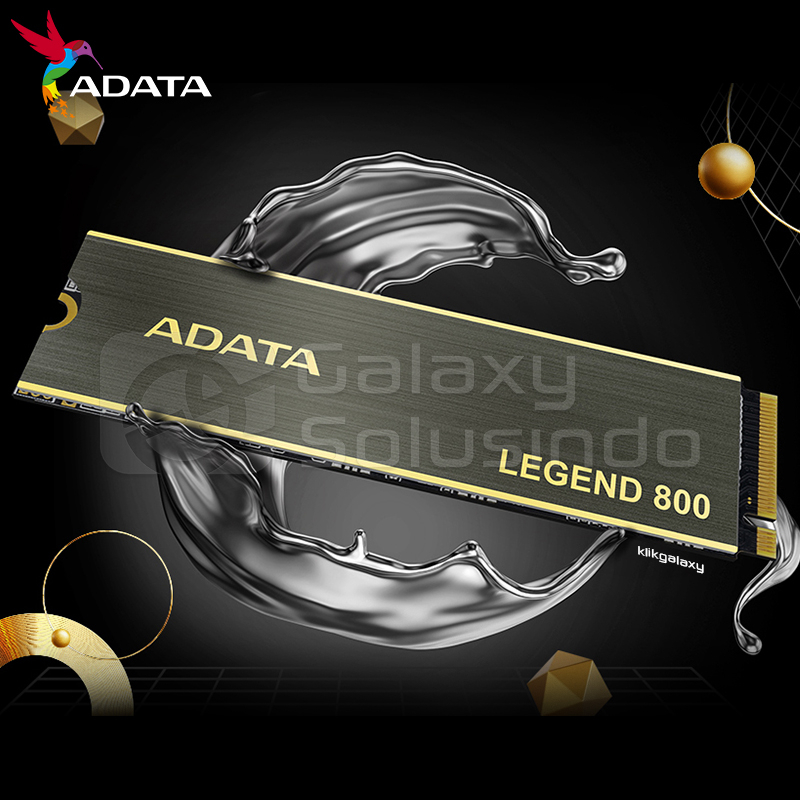

LEGEND 800 supports the latest PCIe Gen4 x4 interface, which meets the NVMe 1.4 standard. It offers excellent read and write performance, and support for the latest Intel and AMD platforms. Whether on a desktop or notebook PC, progress you creativity.
PCIe Gen4 x4 Max. read/write speed: 3,500/2,800MB/s Capacity: Up to 2000GB Supports NVMe 1.4 Supports latest Intel and AMD platforms 3-years warranty
SPECIFICATION : Capacity 500GB Form factor M.2 2280 NAND Flash 3D NAND Dimensions (L x W x H) 80 x 22 x 2.65mm / 3.15 x 0.87 x 0.1inch (with heat sink) 80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink) Weight With heat sink:7.3g / 0.26oz Without heat sink:6.3g / 0.22oz Interface PCIe Gen4 x4 Sequential Read (Max) Up to 3,500MB/s* Sequential Write (Max) Up to 2,800MB/s* Operating temperature 0°C - 70°C Storage temperature -40°C-85°C Shock resistance 1500G/0.5ms MTBF 1,500,000 hours Terabytes Written (TBW) 1200TB** Warranty 3-year limited warranty*** Remark
* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. This product is backward compatible with PCIe 3.0. Actual performance may vary depending on the hardware and software configurations.
* Test system configuration : M/B: MSI X570 Gaming Plus Max , CPU: AMD Ryzen 7 3700X 8-Core Processor 3.6GHz, RAM: ADATA 8G DDR4-2666MHz
** The value is the minimum amount of terabyte written that could be reached.
