Detail Adaptor Switching Power Supply AC to DC 24V 10A Metal Case 240W Jaring

JUAL : Adaptor Switching Power Supply AC to DC 24V 10A Metal Case 240W Jaring

24V 10A 240W DC Switching Switch Regulator Power Supply ADAPTOR

Applications:

Powerful 24v 240w 10A max Current Draw.
Replaces with Adapters 24v 1A 2A 3A 4A 5A 10A
Power Supply For led strip,Wireless Router, ADSL Cats, HUB, Switches, Security Cameras. Audio/Video Power Supply etc
CCTV Cameras Power Supply
Mechanical and electrical equipment, security, air purifier
LCD monitor, digital products and instruments kind of light accessory products

Features :

Protections: Overload / Over Voltage / Short Circuit
Auto-Recovery After Protection
Universal AC input / Full range
100% Full Load Burn-in Test
Cooling by Free Air Convection
It's Good Quality and High Performance
Great Switching Power Supply for Home Appliances
Ideal for LED strip Power Supply with a metal body for hidden installation for LED lighting with an energy consumption of maximum 240W
Compact Size Light Weight.
High Reliability.
Power LED indicator (LED Glow when in Use)
High Efficiency & low energy consumption

Specifications :

Input Voltage: Bisa pilih 2 Input Voltase AC ( Ada Saklar Geser )
AC 100 - 120V 60Hz
AC 200 - 240V 50Hz
Output Voltage: 24V DC, 10A / 240 W
Output voltage: Adjustment Range: 20%
Category - Switch Mode Power Adaptor (SMPS)
Shell Material : Metal Case / Aluminum Base
Color: Sliver
Weight: 630 g
Dimension: 20 x 11 x 5 cm

========================

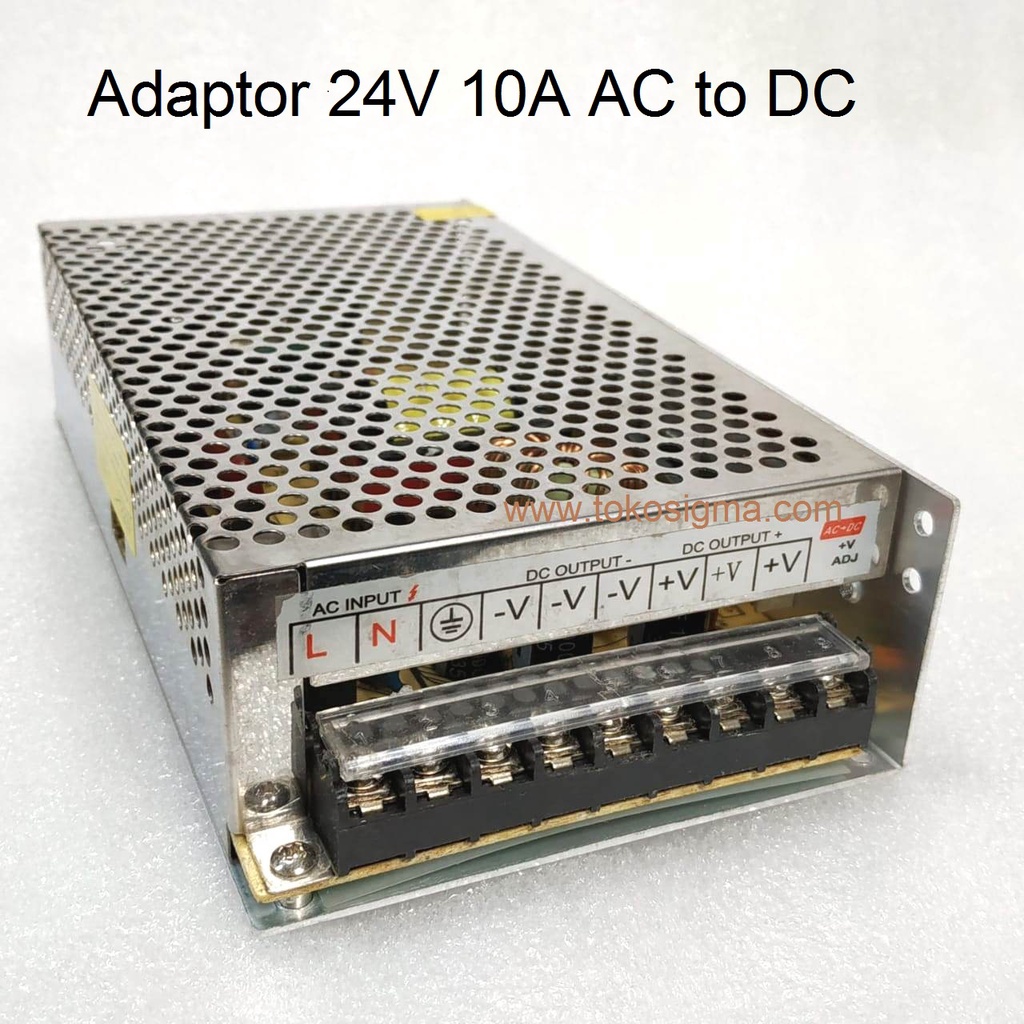

How to connect ?

L, N : AC Power Input
V+: DC Power Output "+"
V-: DC Power Output "-"
GND: DC Power Output "-"
+V / ADJ: Adjust the Output Voltage

Isi paket :

1 x Adaptor Switching Power Supply AC to DC 24V 10A (240 Watt)
