Adaptor Power Supply AC to DC 12V 5A 60W Kotak Besi Jaring Mesh CCTV

Detail Adaptor Power Supply AC to DC 12V 5A 60W Kotak Besi Jaring Mesh CCTV

JUAL : Adaptor Power Supply AC to DC 12V 5A 60w Kotak Besi Jaring Mesh CCTV

12V 5A 60W DC Switching Switch Regulator Power Supply ADAPTOR

Applications:

Powerful 12v 60w 5A max Current Draw.
Replaces with Adapters 12v 1A 2A 3A 4A 5A
Power Supply For LED, SMD, LED Strip, RGB LED Strip
CCTV Cameras Power Supply
Products applicable street light, lawn lamp, fluorescent lamp, LED lighting
Guardrail tube adornment LED lights, LED lamps, lamp, display screen, advertising article screen
Mechanical and electrical equipment, security, air purifier
LCD monitor, digital products and instruments kind of light accessory products


Features :

Protections: Overload / Over Voltage / Short Circuit
Auto-Recovery After Protection
Universal AC input / Full range
100% Full Load Burn-in Test
Cooling by Free Air Convection
It's Good Quality and High Performance
Great Switching Power Supply for Home Appliances
Ideal for LED strip Power Supply with a metal body for hidden installation for LED lighting with an energy consumption of maximum 60W
Compact Size Light Weight.
High Reliability.
Power LED indicator (LED Glow when in Use)
High Efficiency & low energy consumption


Spec :

Input Voltage: AC 85 - 265V 50 / 60Hz
Output Voltage: 12V DC, 5A, and 60 W
Output voltage: Adjustment Range: ±20%
Category - Switch Mode Power Adaptor (SMPS)
MTBF >50,000 hours
Shell Material : Metal Case / Aluminum Base
Color: Sliver
Weight: 270 g
Dimension: 111 x 78 x 38 mm (1-2mm difference)

Note :

IN-DOOR USE ONLY!
This Power Supply Unit "DOES NOT" come with installation instruction, wiring cable, on/off switch, or screws.
Professional installation of qualified electrician is highly recommended.

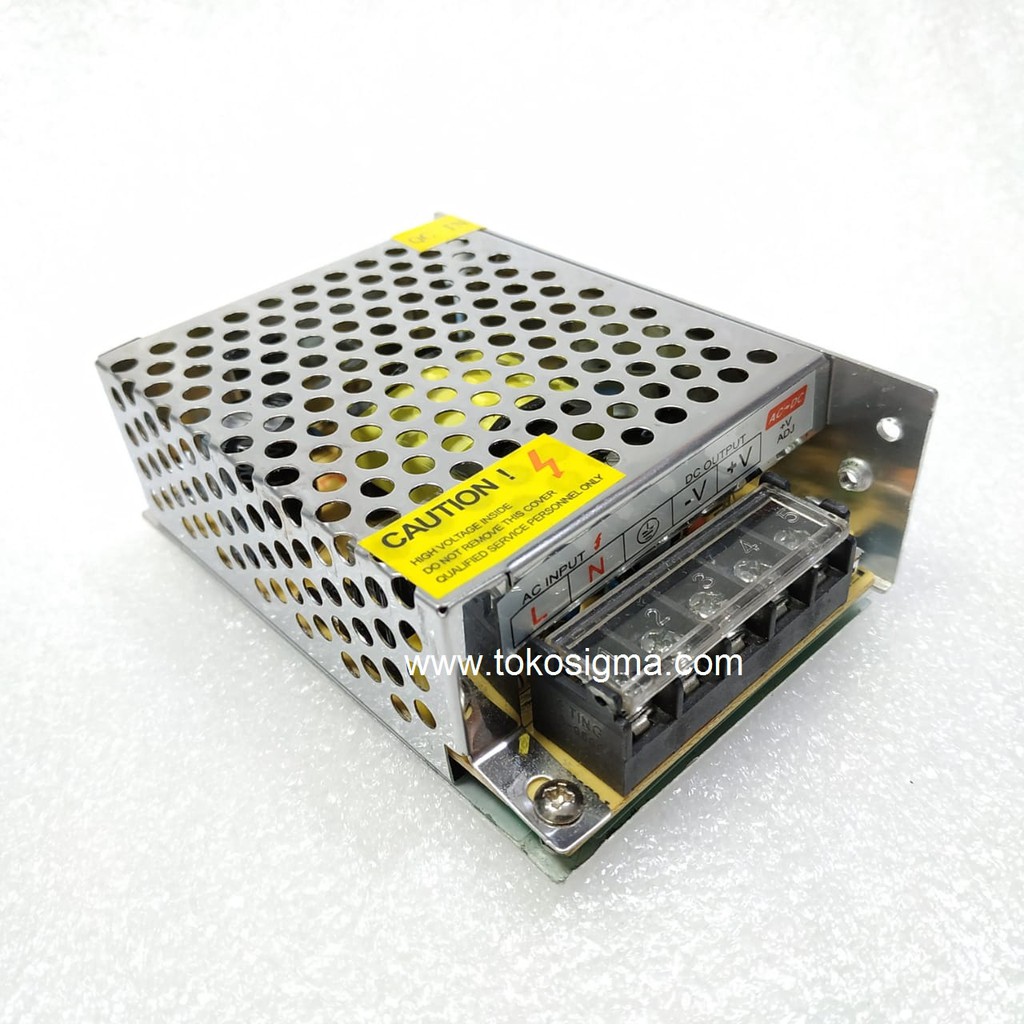

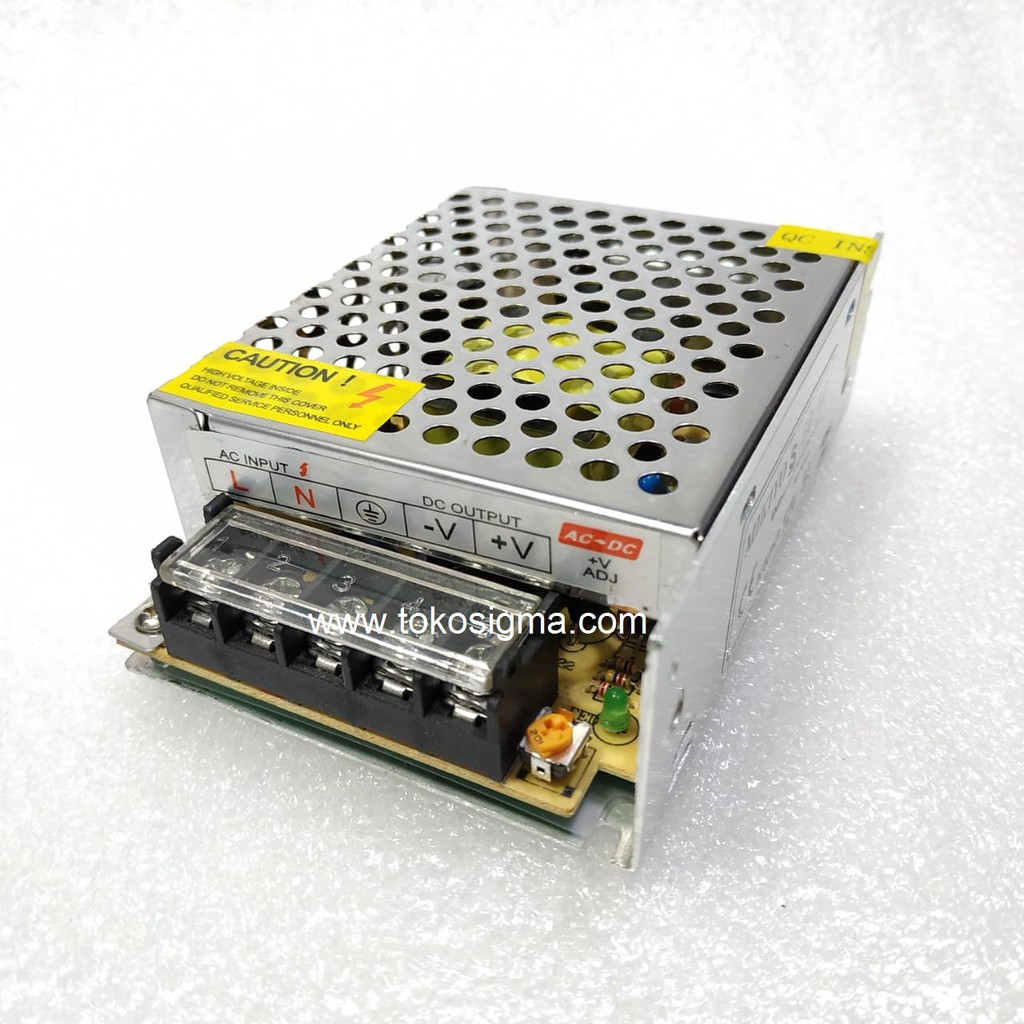

How to connect?

L, N: AC Power Input
V+: DC Power Output "+"
V-: DC Power Output "-"
GND: DC Power Output "-"
+V / ADJ: Adjust the Output Voltage

isi paket :

1 x Adaptor Power Supply DC 12V 5A (60 Watt)
