Adaptor POE ubiquiti 50V ( 60W )

Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > Adaptor POE ubiquiti 50V ( 60W )
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:ubiquitisurabaya1Lihat semua produk Komputer & Aksesoris oleh ubiquitisurabaya1
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Adaptor POE ubiquiti 50V ( 60W )

Specifications
Model POE-50-60W
Dimensions 101 x 60 x 33 mm (3.98 x 2.36 x 1.30”)
Weight 192 g (6.77 oz)
Output Voltage 50VDC @ 1.2A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability No
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 1.3A @ 120VAC, 0.75A @ 230VAC
Inrush Current <100A Peak @120VAC, <200A Peak @ 230VAC
Efficiency 85+%
Output Ripple 1% Max.
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering –
4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Noncondensing
AC Connector IEC-320 C6
Data IN / PoE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL

Gambar produk

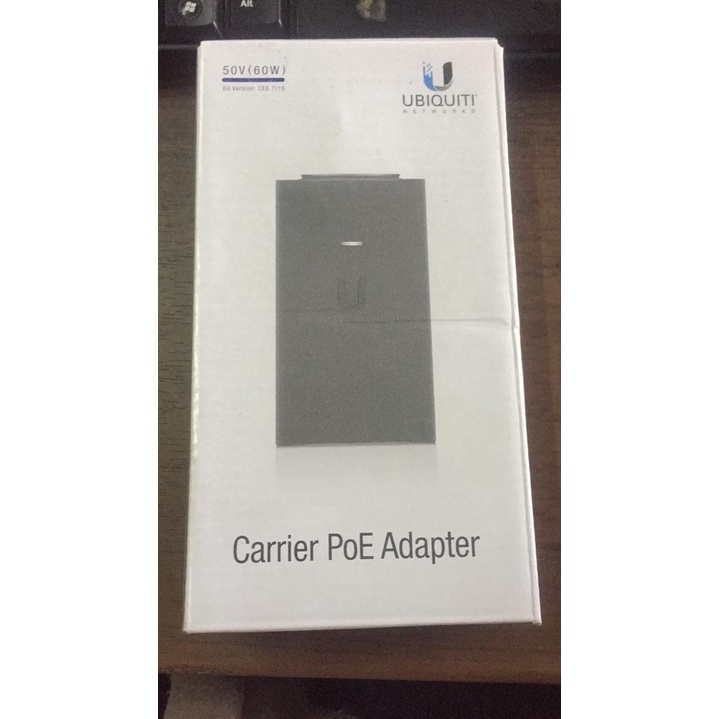

Adaptor POE ubiquiti 50V ( 60W )
Adaptor POE ubiquiti 50V ( 60W )
