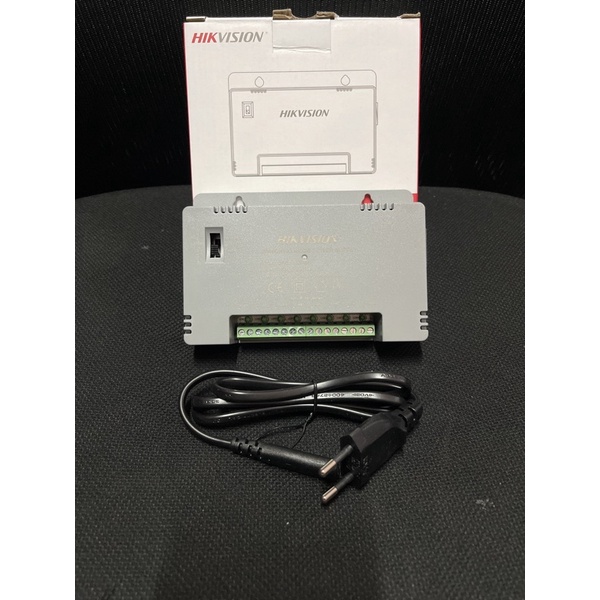

adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8

Merek: Hikvision | Lihat selengkapnya produk Kamera & Drone dari Hikvision
Elektronik > Kamera Keamanan > DVR > adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:warungcctvLihat semua produk Kamera & Drone oleh warungcctv
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8

Multi-channel SMPS
12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Complies with certification standards of information technology products; good EMC performance
Compact size; applicable to cameras


Parameters
LED Indicator
Green
Dimension
130 mm × 94 mm × 34 mm (5.11" × 3.70" × 1.34")
Operating Conditions
0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
Cable Length Compensation
Normal: 12 VDC

Long: 13.5 VDC

Ex-Long: 15 VDC

Appearance
Gray
Output
12 VDC/1 A per channel
Ripple & Noise 150 MVp-P
0.15 Vp-p (150 mV)
AC Input Connector
C8
DC Output Connector
DC Plug: grid terminal
Storage Conditions
-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Input
185 to 240 VAC, 50 Hz to 60 Hz

Gambar produk

adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8
adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8
adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8
adaptor hikvision 4ch DS-2FA1225-D4 dan 8ch DS-2FA1205-D8
