Detail Adapter Konverter Charger Qc3.0 Qc2.0 Fast Charging Dc-Dc Dengan Kabel Usb
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please clickItem information：

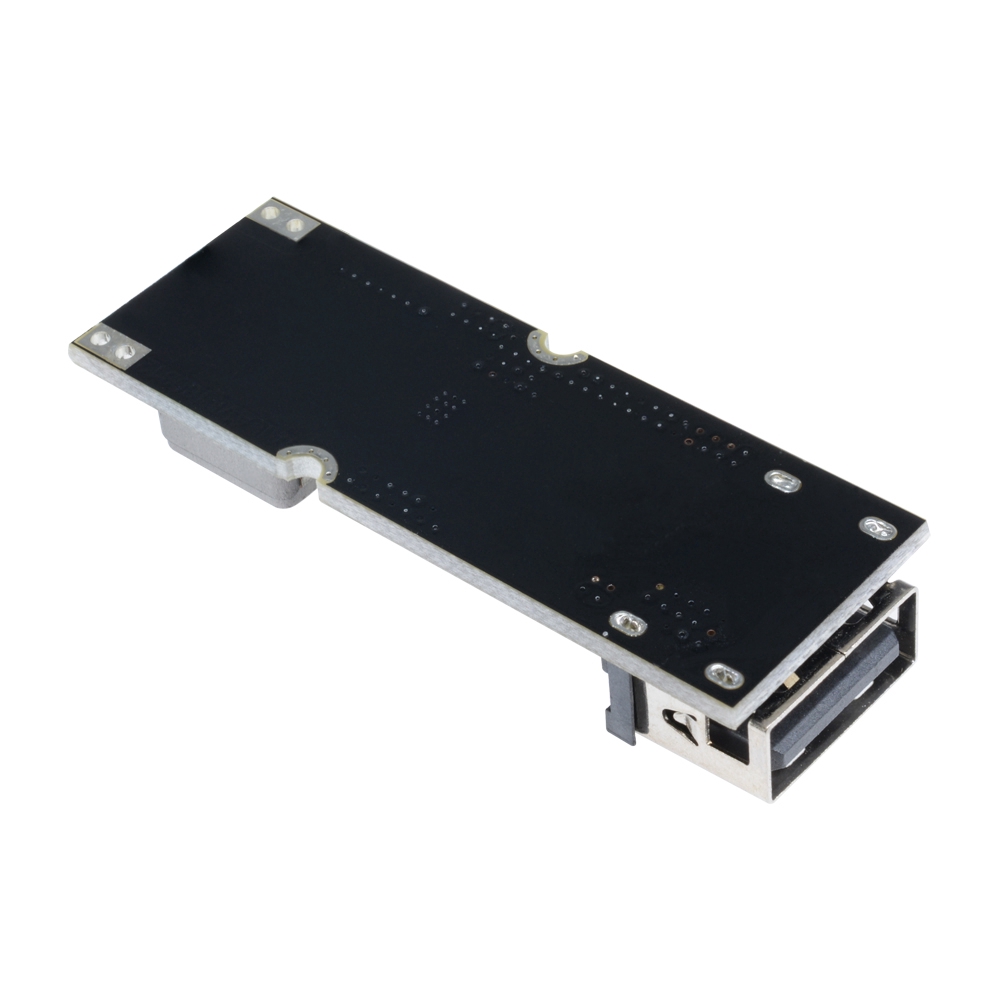

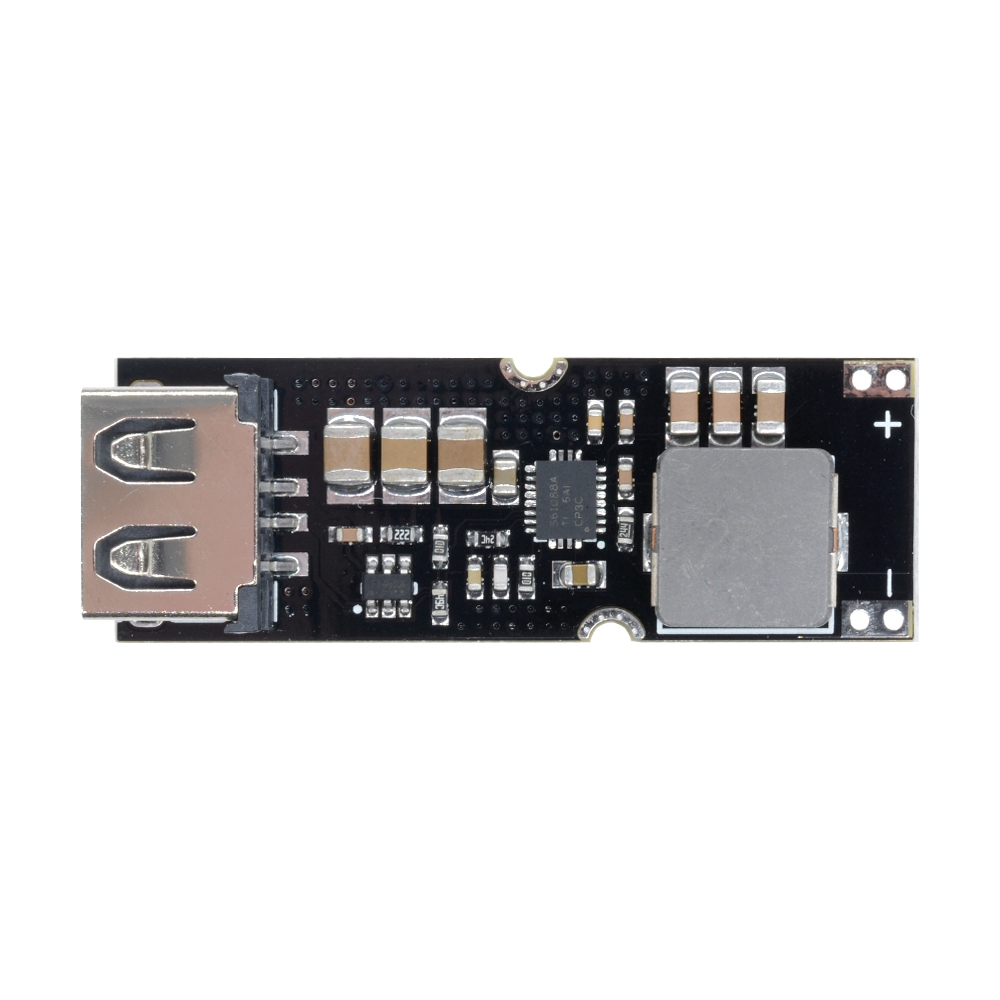

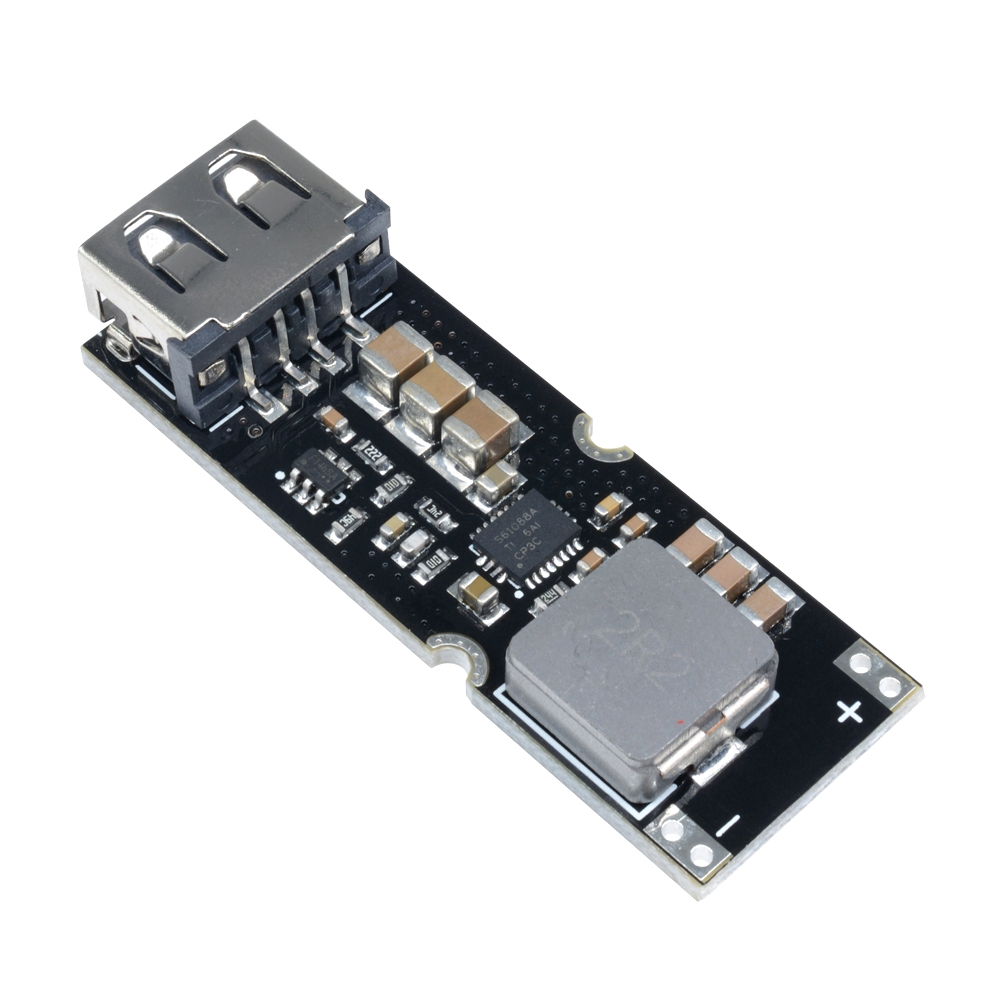

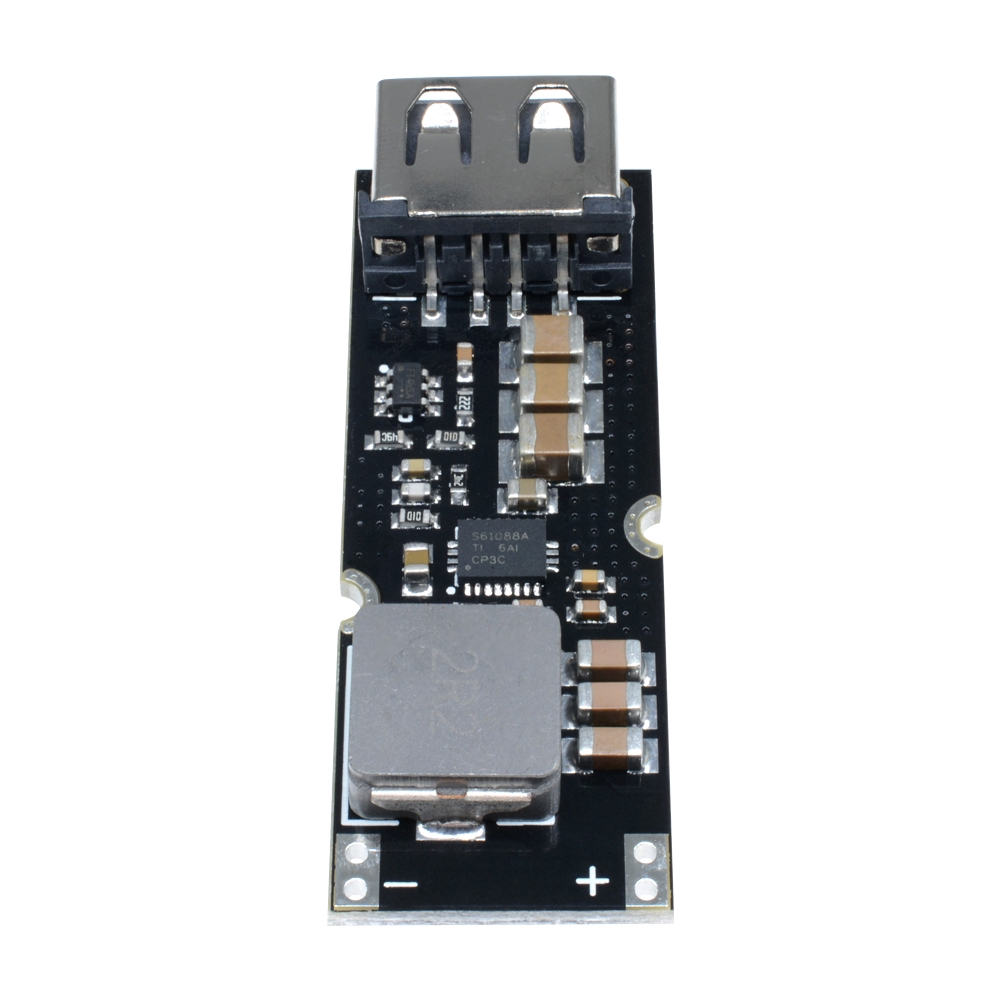

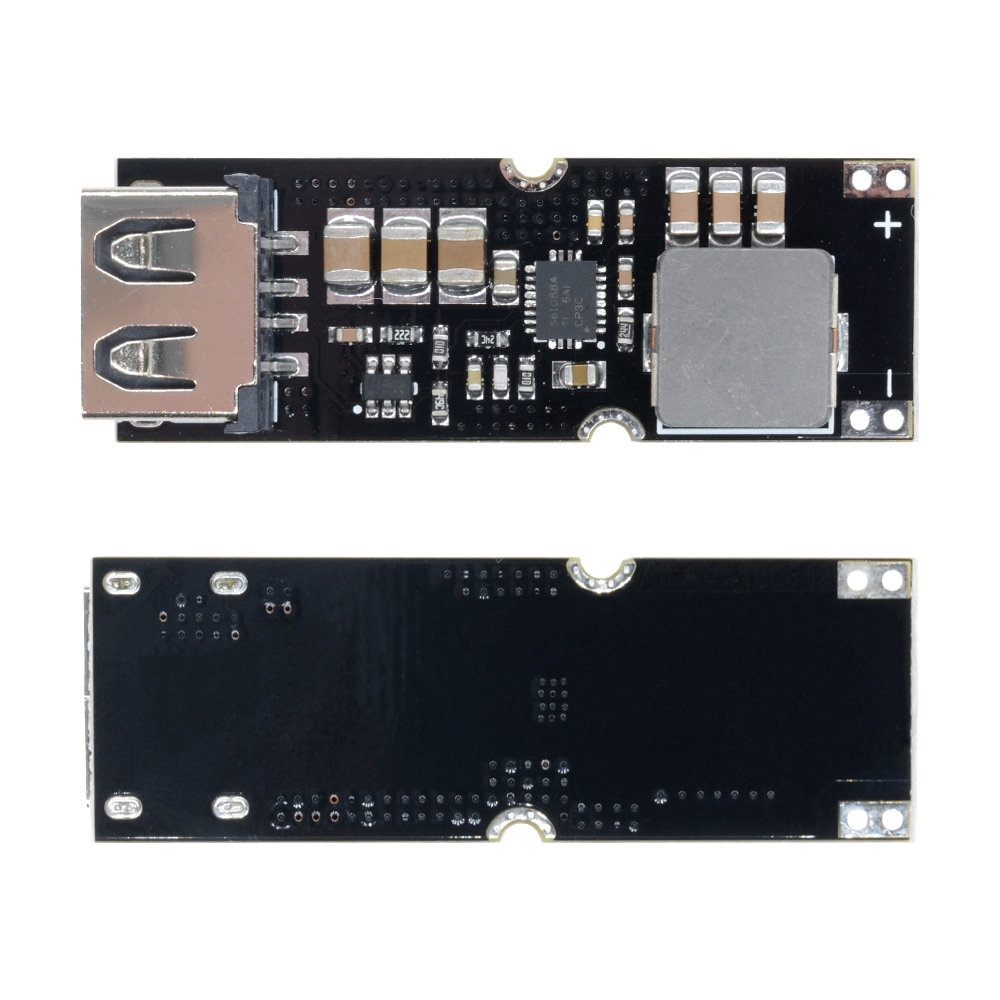

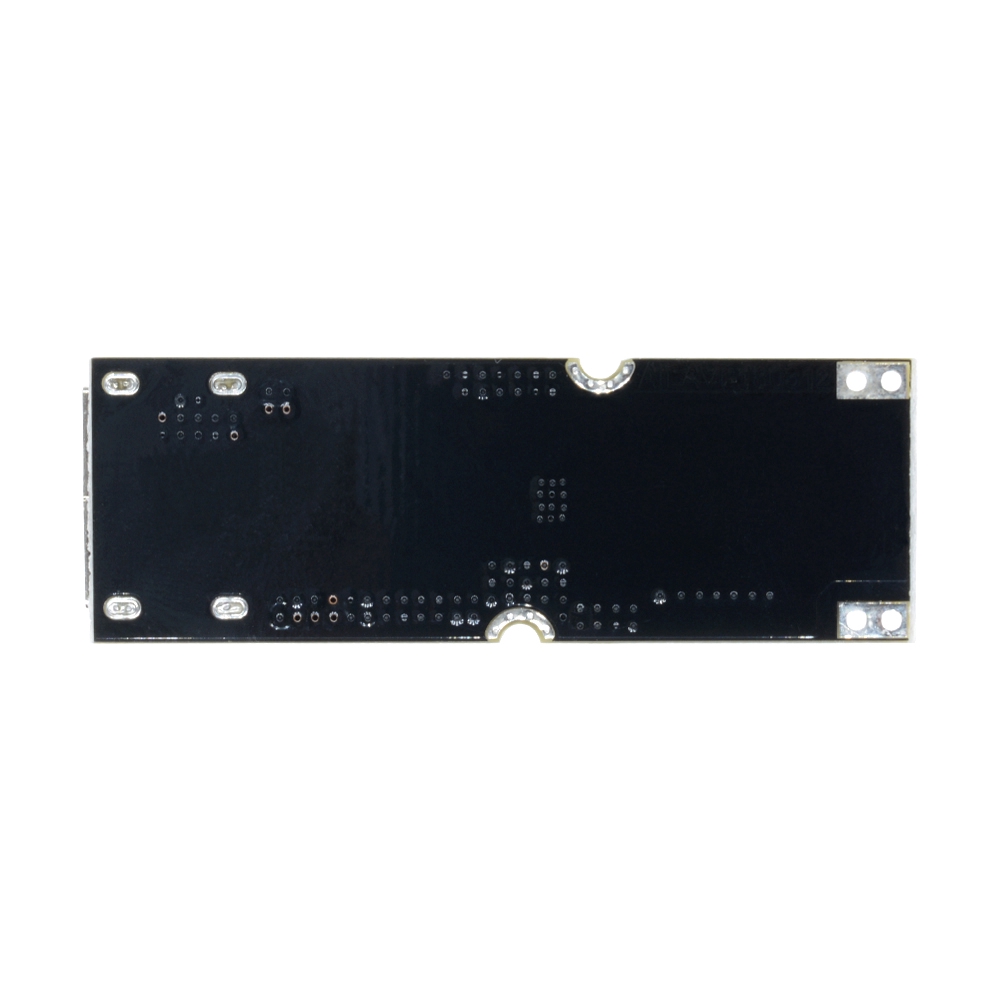

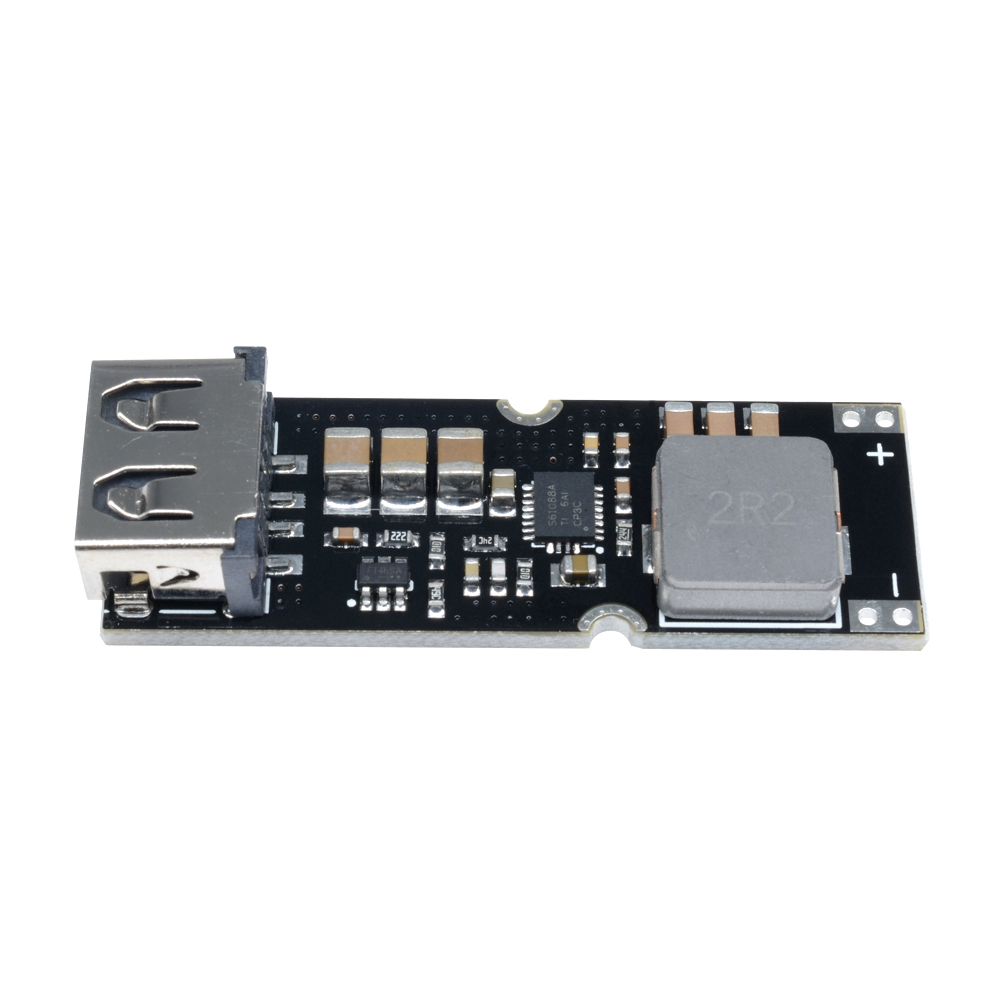

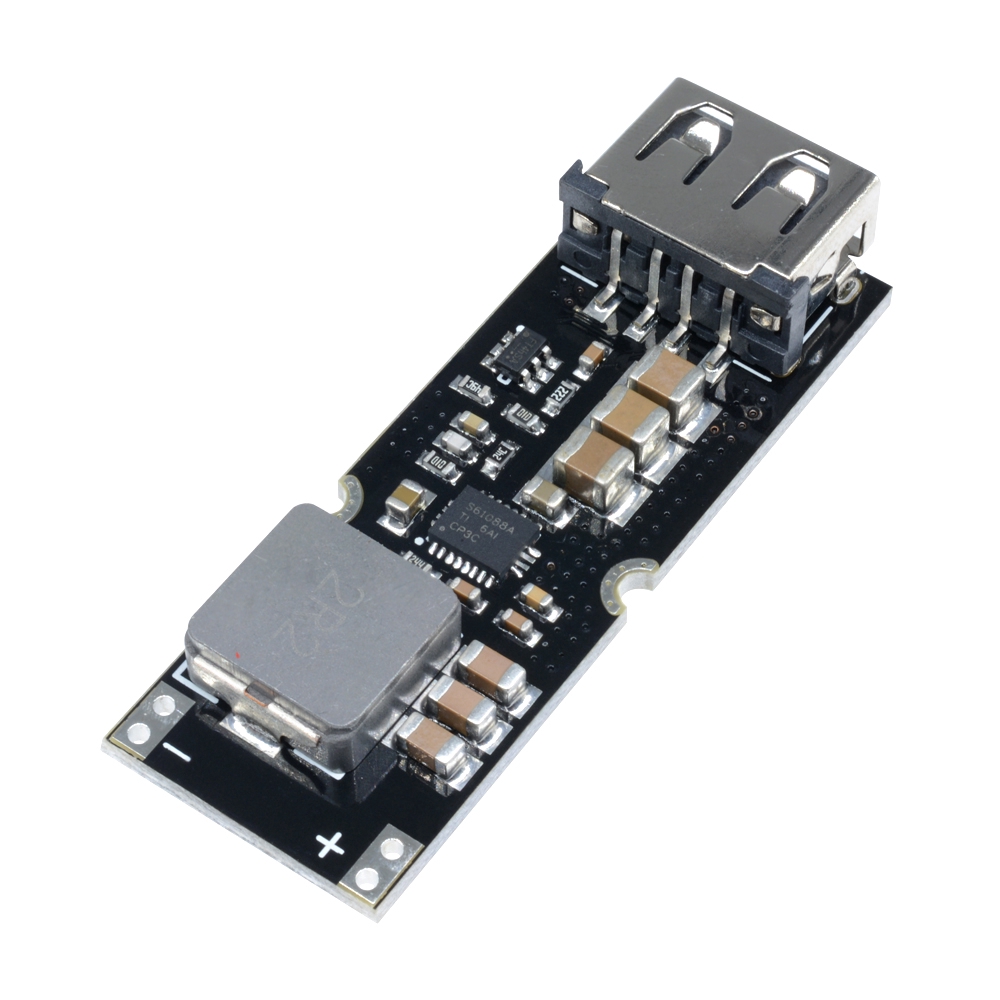

Name: Single-cell lithium battery boost fast charging source module
Main control chip: TPS61088A
Identification chip: FP6601Q
Input voltage: 2.8 ~ 4.5V, very suitable for 3.7V polymer lithium battery
Output voltage: The default is 5V, triggering fast charge after 4.5V ~ 12V according to the protocol.
Input rated current: 8A
Output current: 5V3A, 9V2A, 12V2A. Output current is adaptive.
Output power: up to 24W.
Support Agreement: QC2.0, QC3.0, Huawei FCP, DCP Agreement
Efficiency is up to 93%, with a typical value of 90%.
Module size: 47.5 (length) * 16.5 (width) * 8 (height) mm (including USB)
Module net weight: about 7 grams
feature of product:
1. Support FCP voltage and current output protocol.
2. Support Qualcomm QC2.0/3.0 classA 5V, 9V, 12V voltage output.
3. Automatically recognize FCP and QC2.0/3.0 fast charge protocol.
4. Support the protocol equipment of Chinese telecom enterprise YD/T 1591.
Product application introduction:
This module can be applied to a single-cell lithium battery to 5V-12V output for general digital product charging, such as mobile phones, Ipad, MP3, PSP and so on. It can be used as a high current output mobile power source only by connecting the battery. It is also possible to supply power to the 5-12V product by setting the output voltage.
Item included：
1PC x Charging Module
