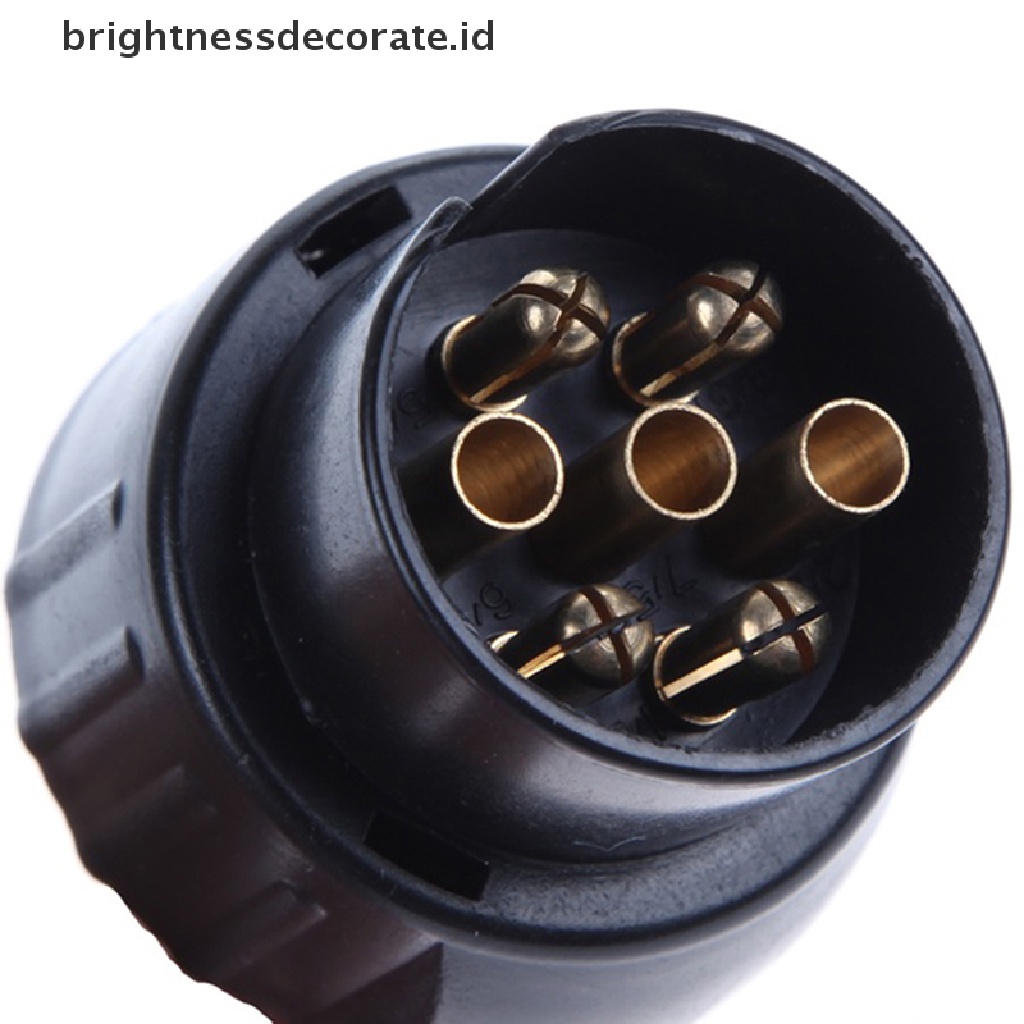

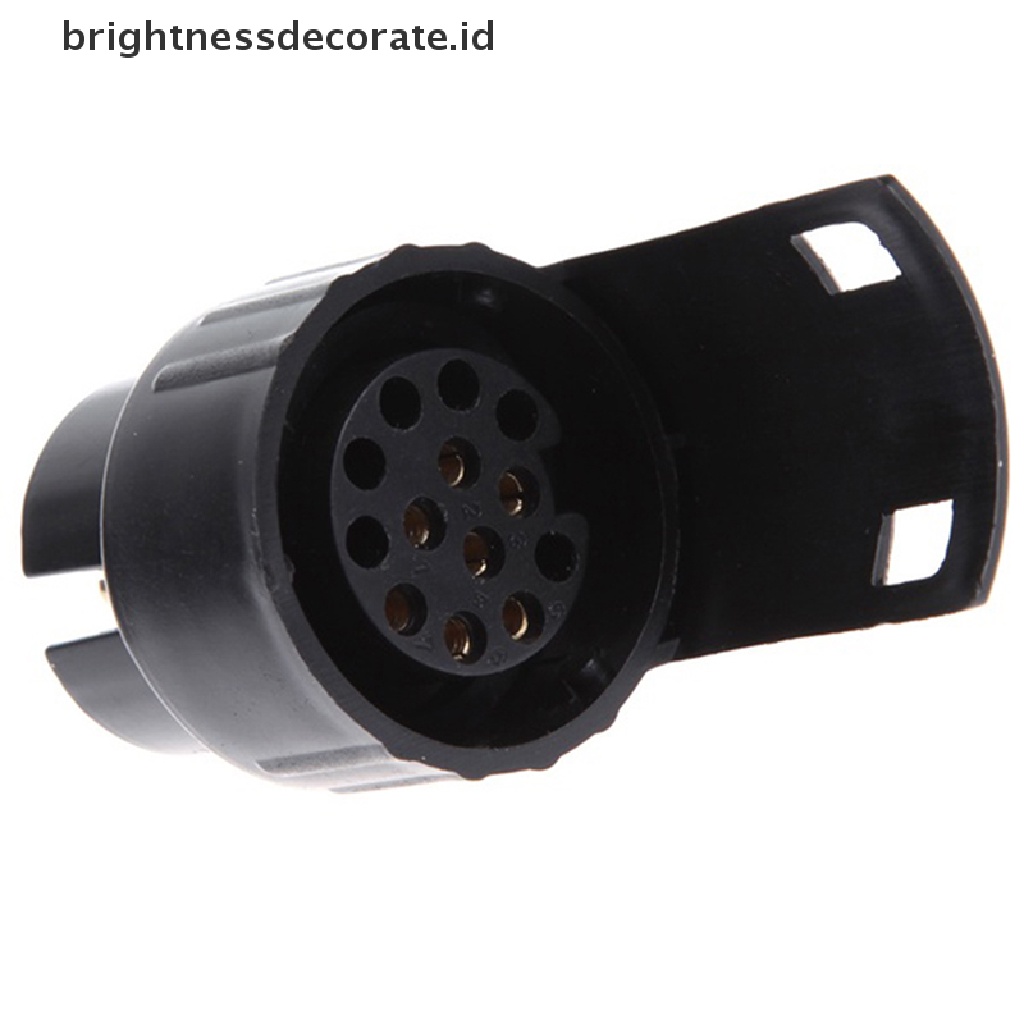

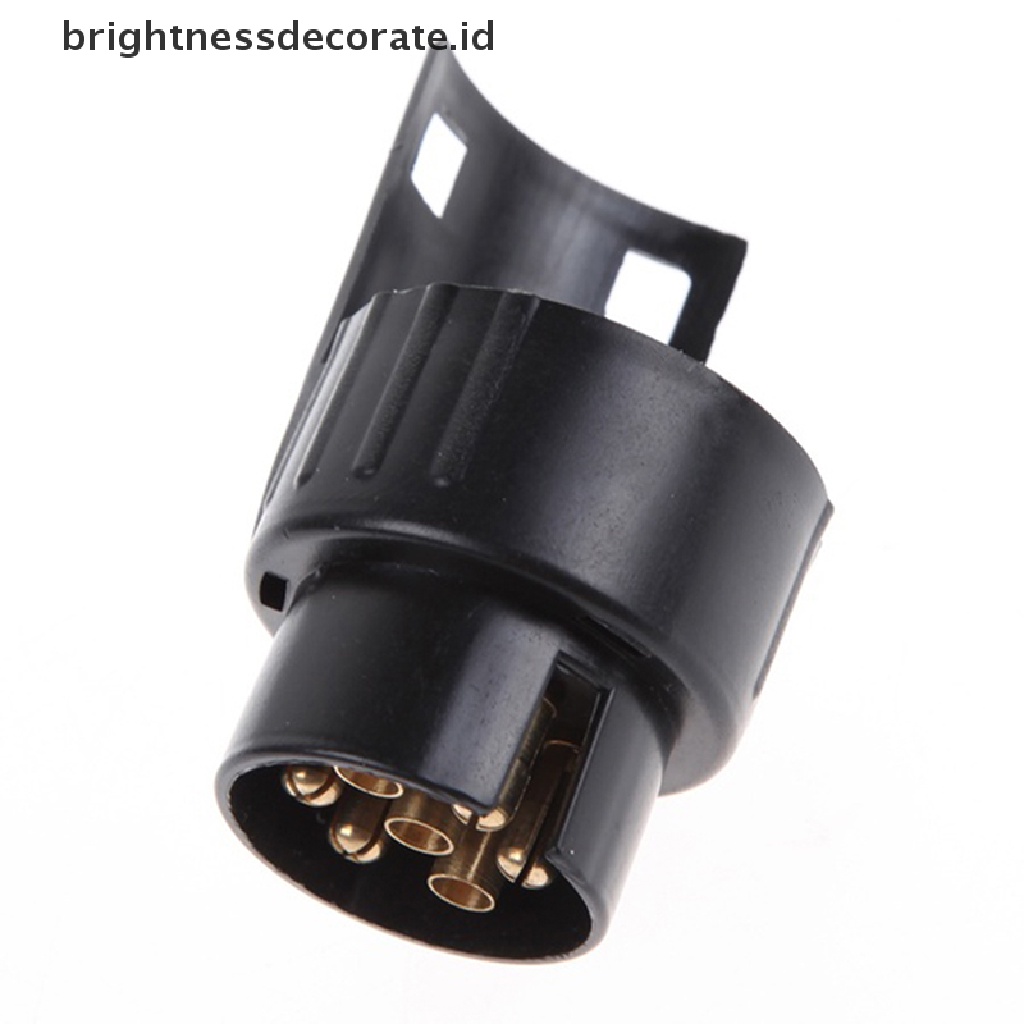

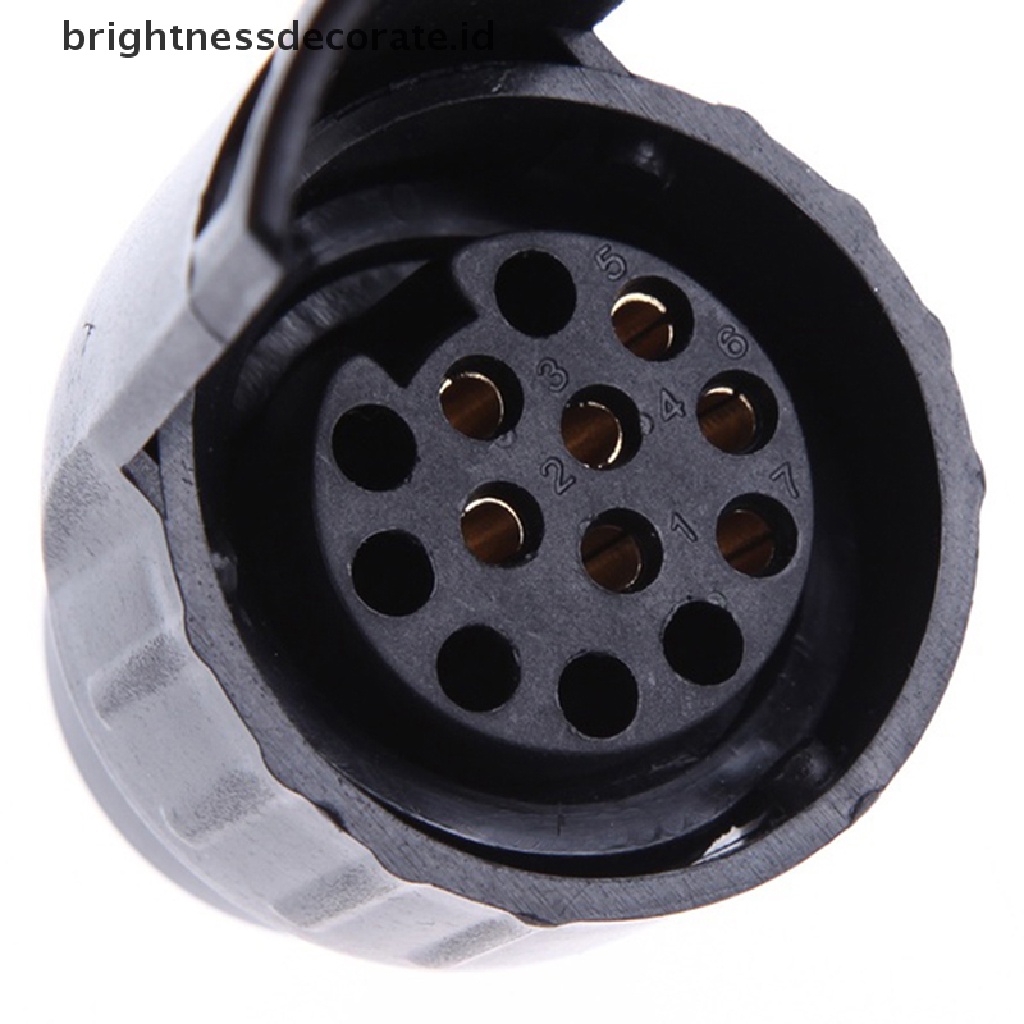

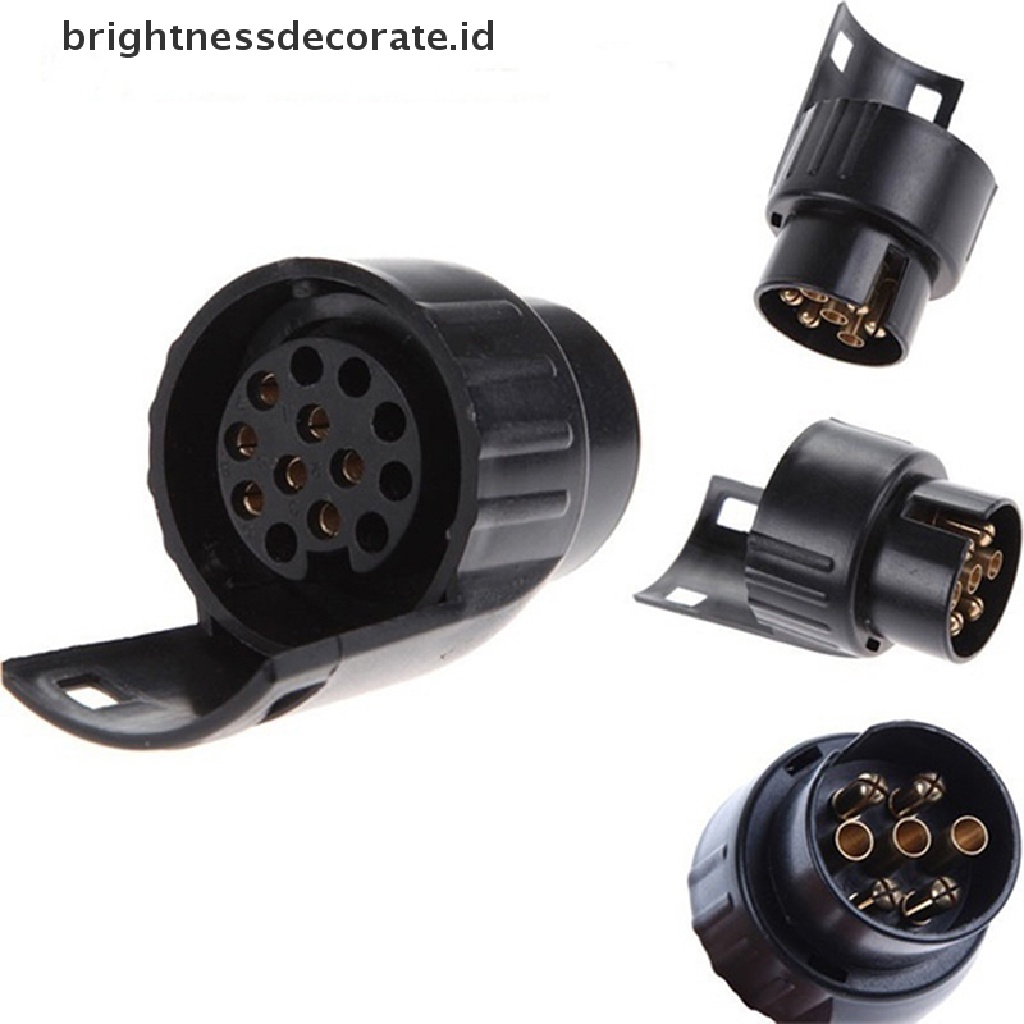

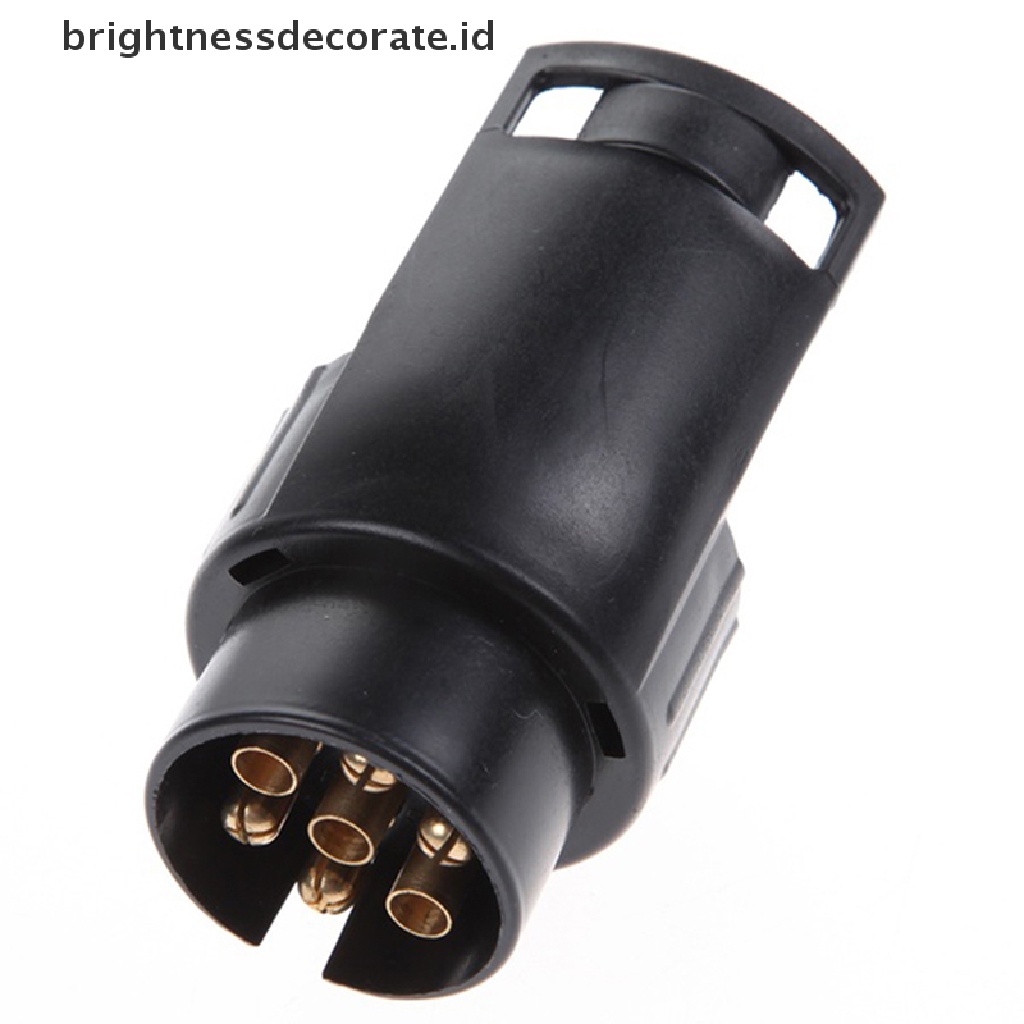

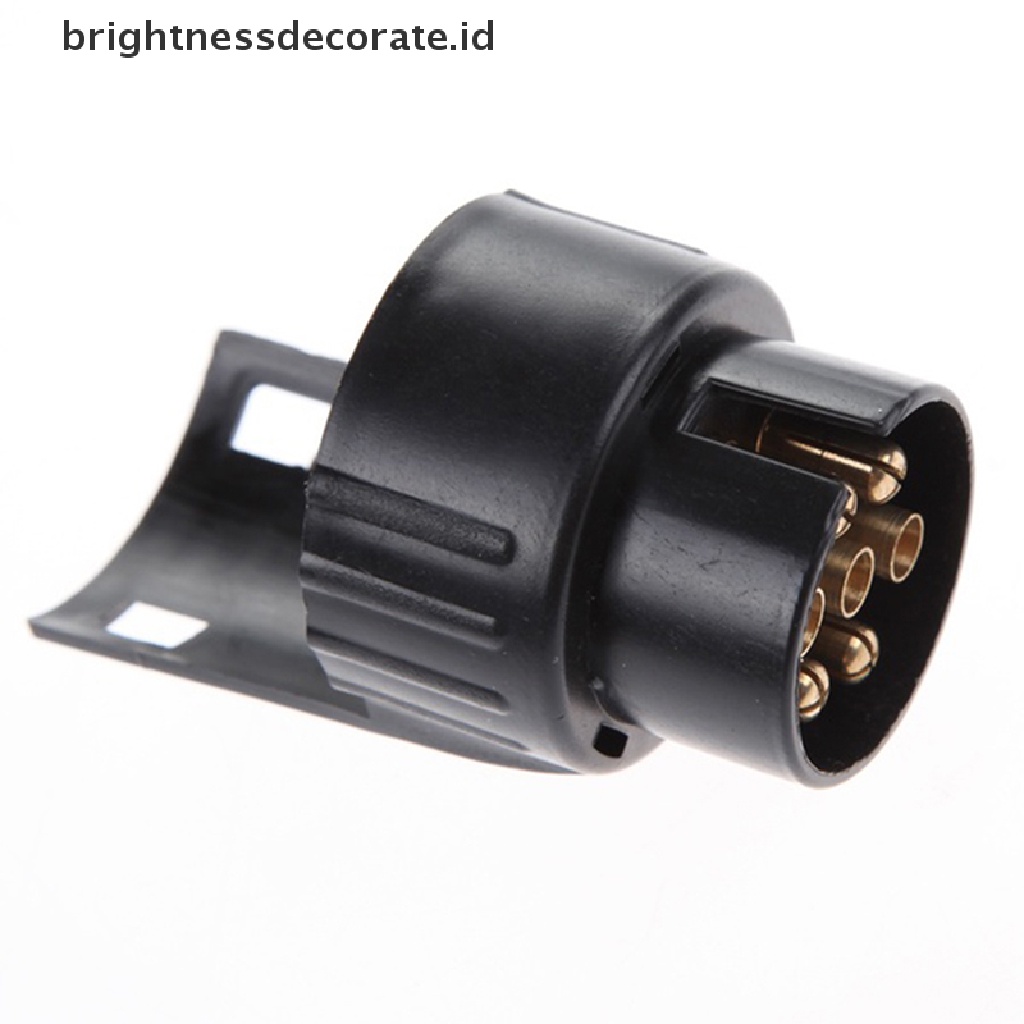

Detail Adapter Konektor Listrik 7 Pin Ke 13 Pin Untuk Mobil Truk Trailer
Description: Suitable for European standard trailer. Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer. Converts the 7-pin socket on your car to the 13-pin female socket. Supplies power to your caravan, towing and truck. Slim line design: same diameter as a normal trailer plug and just over half the length. Plastic housing prevents rusting and enhances appearance. Waterproof for all road and weather conditions.
Wiring Configuration: 7 Pin Lighting Connections - 12 N Black Cable Function L PIN 1 - Yellow Wire (Left/H Direction Indicator) L PIN 2 - Blue Wire ( Rear Fog Lamps ) L PIN 3 - White Wire ( Earth Return ) L PIN 4 - Green Wire (Right/H Direction Indicator) L PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp ) L PIN 6 - Red Wire (Brake lights) L PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp ) 13 Pin Lighting Connections – Cable Function L Pin1 - Yellow Wire ( Left Indicator ) L Pin2 - Blue Wire ( Fog Light ) L Pin3 - White Wire ( Earth Return ) L Pin4 - Green Wire ( Right Indicator ) L Pin5 - Brown Wire ( Right tail / Side Light ) L Pin6 - Red Wire ( Brake / Stop Lights ) L Pin7 - Black Wire ( Left tail / Side Light ) L Pin8 - Pink Wire ( Reversing Light ) L Pin9 - Orange Wire ( 12V Pemanent power from battery ) L Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge ) L Pin11 - White / Black Wire ( Earth for Teminal 10 ) L Pin 12 - White / Blue Wire ( NOT usually used ) L Pin 13 - White / Red Wire ( Earth for Teminal 9 )
