Adapter Fiber Optik LC UPC OPTIC FO Adapter

Detail Adapter Fiber Optik LC UPC OPTIC FO Adapter

Ready stok..

Adapter LC Duplex

LC/UPC SM DX fiber optic adapter


Features

1. Low insertional loss and back reflection loss

2. High prcision alignment

3. Nickel plated brass body

4. Use in Single-mode or Multimode applications

5 .Choice of housing material and sleeve material

6. ISO9001:2008,ROHS compliance


Application

1. CATV

2. Telecommunication networks

3. Test equipment

4. Metro

5. Local Area Networks(LANs)

6. Data processing networks

Specifications

Parameter Unit LC, SC, FC, ST
SM MM
PC UPC APC PC
Insertion Loss (Typical) dB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss dB ≥45 ≥50 ≥60 ≥30
Exchangeability dB ≤0.2
Repeatability dB ≤0.2
Durability Time >1000
Operating Temperature°C -40~75
Storage Temperature°C -45~85

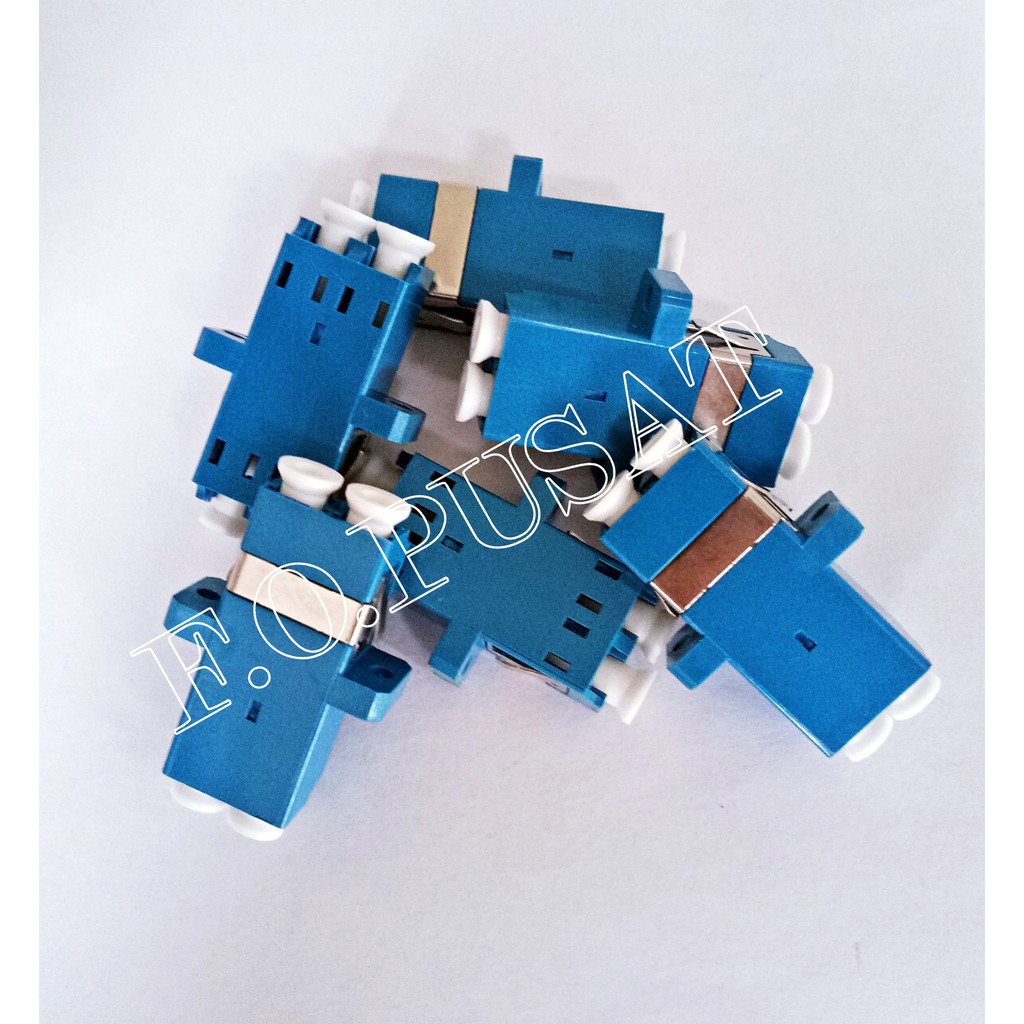

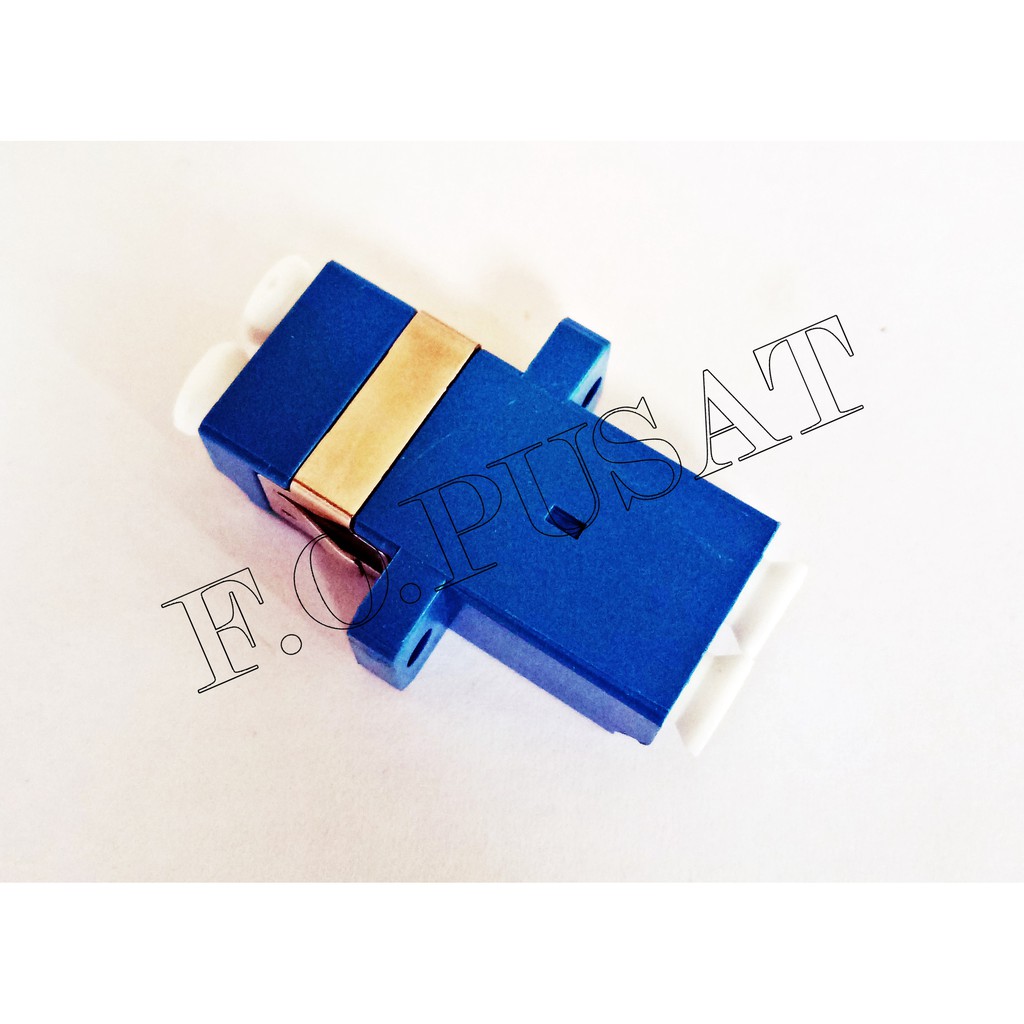

Gambar produk
