Adapter Fiber Optik Coupler SC SC Metal Connector Fiber Optic 500 PCS

Detail Adapter Fiber Optik Coupler SC SC Metal Connector Fiber Optic 500 PCS

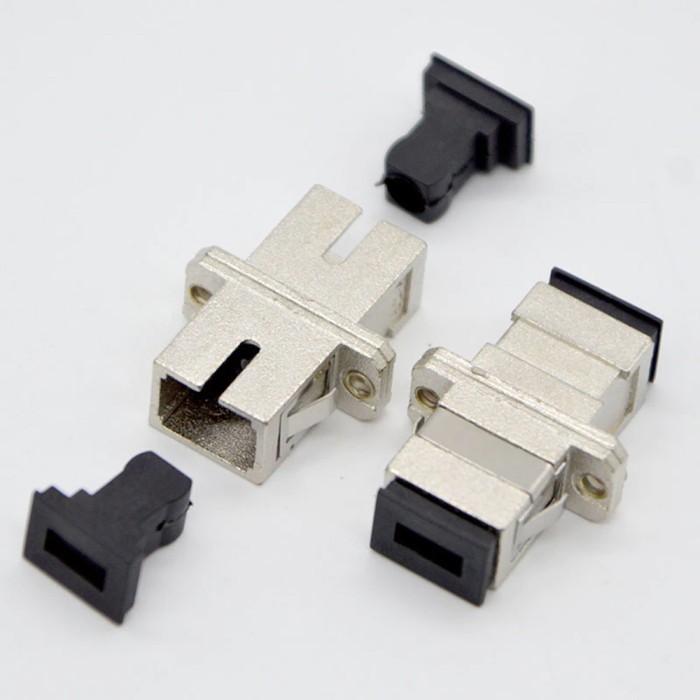

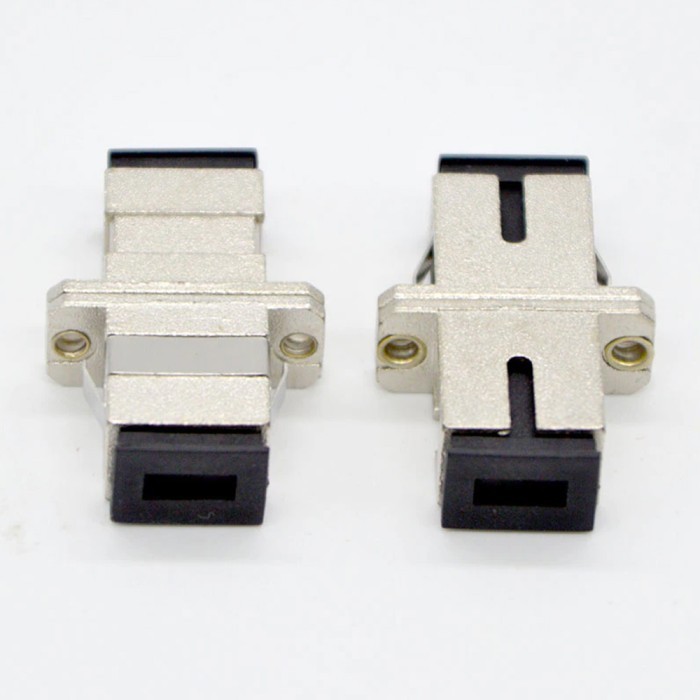

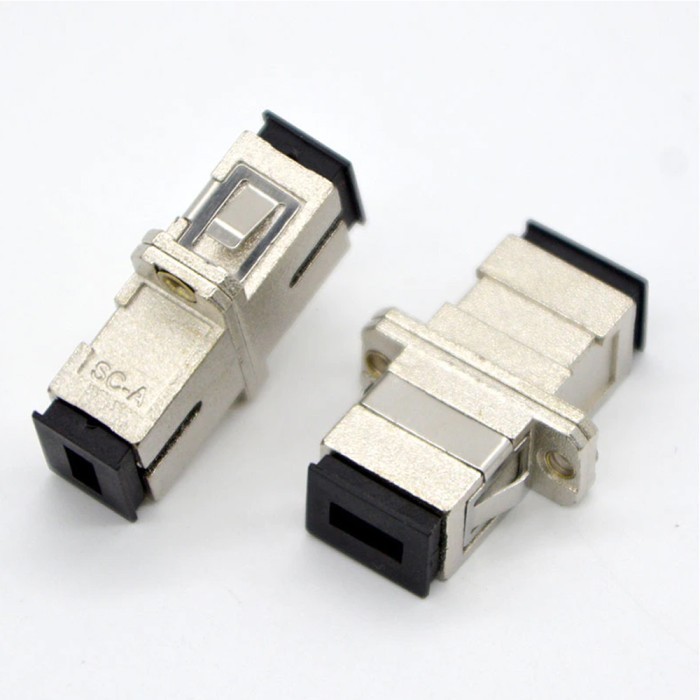

Adapter SC Metal Coupler Fiber Optik / Kopler SC Metal
Bahan : Metal Besi
Isi : 500 pcs

Feature:
1. with communication industry standards, low insertion loss, high return loss, good repeatability.
2. The conversion interface is easy to use, stable performance, and carrier-grade quality loss is less than 0.2dB.
3. The environment is stable, and the number of repetitions is greater than 1000, and it can be used for a long time.
4. The use of ceramic ferrules, flame retardant and high temperature resistance, has good mechanical stability.
5. Commonly used in optical fiber communication systems, optical fiber data transmission, optical fiber Catv, local area (LAN), test equipment, etc.

Specification:
Item Type: Fiber Flange
Insertion Loss: ≤0.2db
Repeatability: ≤0.10db
Interchangeability: ≤0.20db
Wavelength Parameters: Single mode 1310nm 1550nm
Return Loss: ≥50db
Mating Times: >1000
Ferrule Type: Ceramic
Working Temperature: -40℃-80℃
Storage Temperature: -55℃-85℃
Application: Optical fiber communication , optical fiber broadband access , optical fiber CATV, optical fiber instrumentation, optical fiber local area
How to Use: Fiber coupler is a device for detachable (movable) connection between fiber and fiber. It connects the two ends of the fiber so that the light energy output by the transmitting fiber can be coupled to the receiving fiber to a greater extent. And make it intervene in the optical link so as to reduce the impact on the system.

NOTE
- Mohon baca deskripsi dan perhatikan foto produk
-Packing tidak termasuk bubble wrap
-Harap membeli bubble wrap bila mau dibuble
- Pengiriman harian dari Senin s/d Sabtu mulai pukul 14.00 WIB - Hari Minggu dan hari dimana ekspedisi tidak beroperasi tidak ada pengiriman. Hari minggu tetap bisa order namun order akan diproses hari berikutnya.

Happy Shopping

Gambar produk
