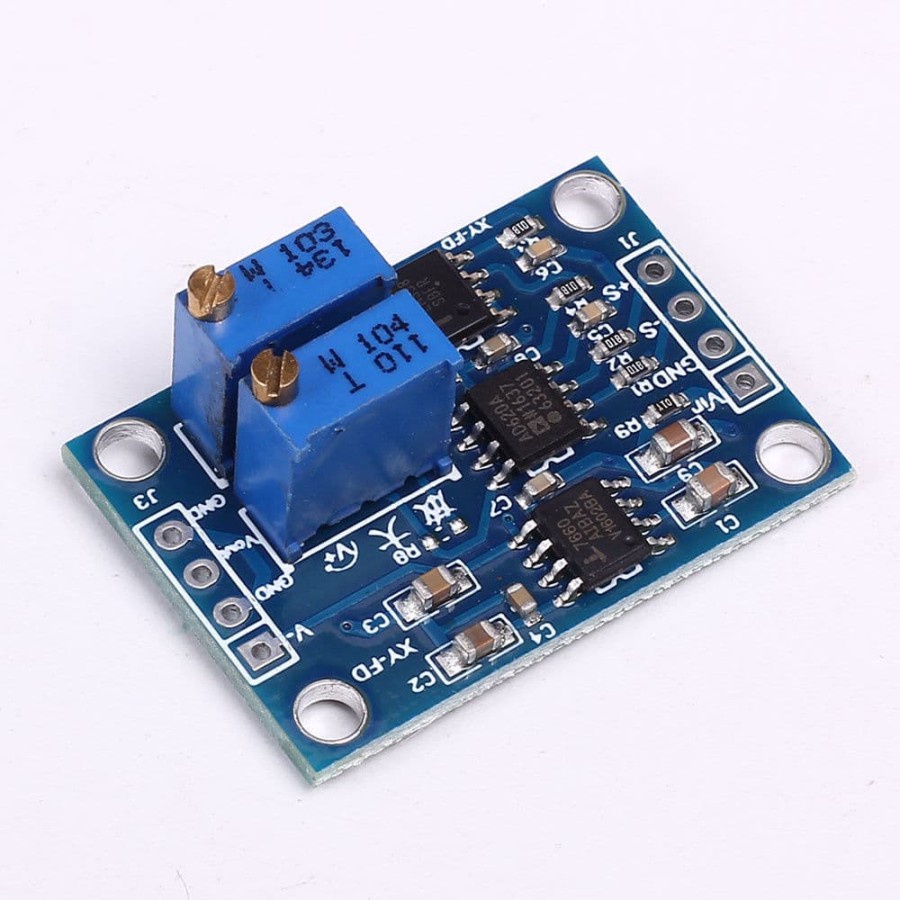

AD620 High Precision uV/mV Voltage Amplifier Signal Amplifier Module

Detail AD620 High Precision uV/mV Voltage Amplifier Signal Amplifier Module

AD620 High Precision uV/mV Voltage Amplifier Signal Amplifier Module




High Precision uV / mV Voltage Amplifier Small Signal Instrumentation Amplifier
AD620 Transmitter

Using AD620 as the main amplifier, can amplify uV, mV voltage. Magnification
1.5-10000 magnification, adjustable. High precision, low offset, better
linearity. Adjustable zero to improve accuracy. Can be used for AC, DC signal
amplification. Module use, need to have a certain electronic basis, if no basis
customers, please carefully purchase, shop to provide technical support.

Product Highlights:

1: wide supply voltage range, the AD620 amplification of this product can be
amplified microvolts, millivolt, compared to LM358 amplification accuracy,
better linearity, the maximum voltage output range of 10V.

2: magnification range, magnification up to 1000 ti2mes, only through a
potentiometer can be adjusted.

3: adjustable zero through the zero potentiometer to adjust the zero, improve
accuracy, there will be no zero drift phenomenon to meet customer needs.

4: a negative voltage output, the module uses 7660A chip output negative voltage
(-Vin), can be provided to the customer to drive other dual power load.

5: mini type, the size of 32 * 22mm, evenly distributed around the four 3mm
positioning holes, both sides of the port 2.54mm standard pitch pinhole.




product parameters:

Input voltage: 3-12VDC. (Bulk purchase can be customized)

magnification: 1.5-1000 times adjustable, zero adjustable

Signal input voltage: 100uV - 300mV
