Actuator Electric Linear Motor Controller 200mm Stroke 1500N 12V 6mm/s

Detail Actuator Electric Linear Motor Controller 200mm Stroke 1500N 12V 6mm/s

Ready warna SILVER atau HITAM (dikirim RANDOM sesuai stok yg ada)

Spesifikasi
Model : JS-TGZ-U2
Stroke : 200 mm
Drive Voltage : 12V
Speed : 6 mm/s
Maximum Thrust: 150KG/1500N
Tipe Duty : 10%

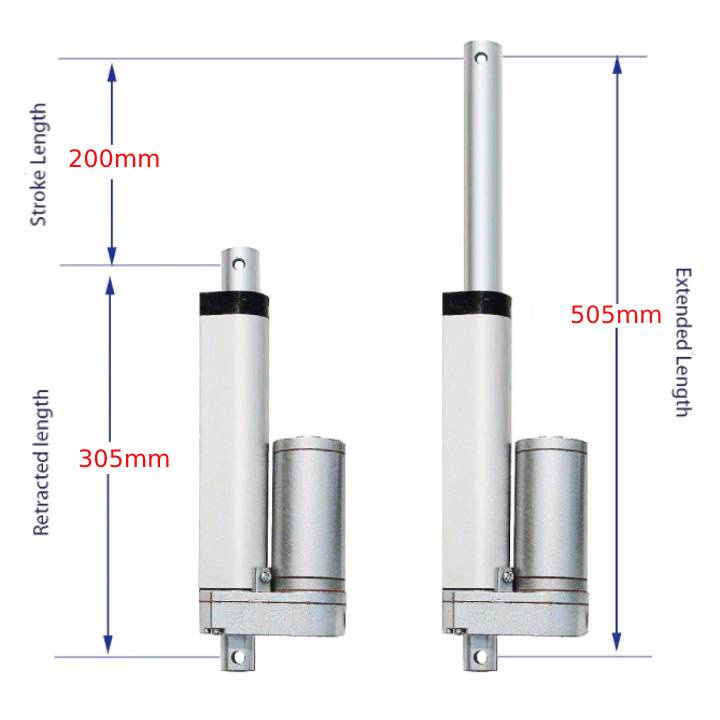

Minimum installation size (fully retracted around in the middle of the distance between the two holes): L1= Stroke+105 mm
Maximum installation size (fully extended around the middle of the distance of the two holes): L = 2xS(stroke)+105mm
Ambient temperature :-26 to +65 degree
Protection class: IP 54
Built-in limit switches(When completed stroke, linear actuator automatically stops!)
Low noise design, noise levels below 42 db
Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.

Package include:
1 x Actuator 1500N 200mm

Gambar produk
