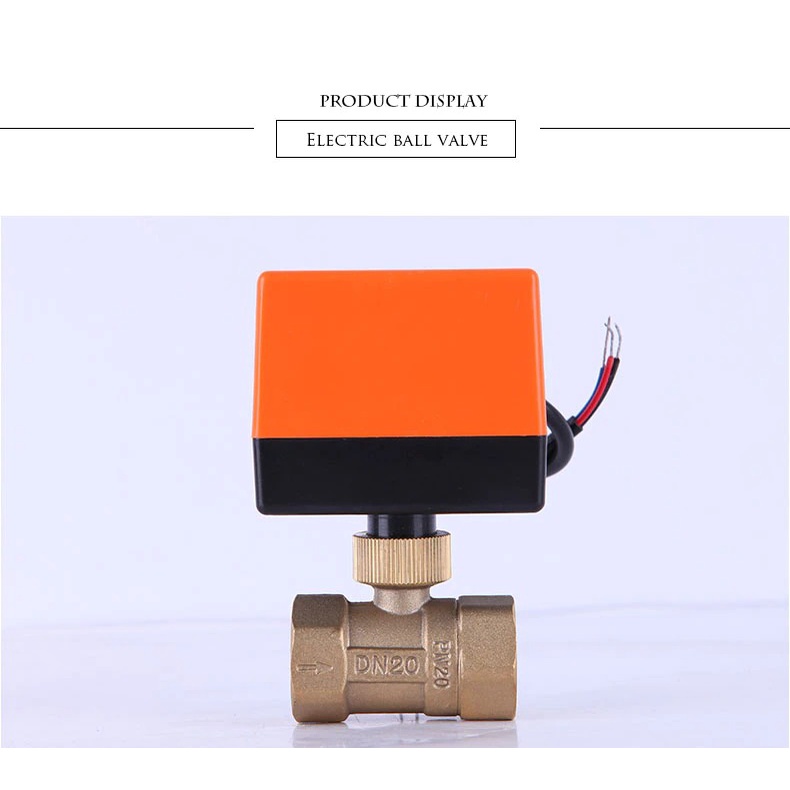

Actuator Ball Valve 3/4 inch 3/4" DN20 2Way 220V Kran Elektrik Motorized Valve

Detail Actuator Ball Valve 3/4 inch 3/4" DN20 2Way 220V Kran Elektrik Motorized Valve

Video perkenalan produk Actuator Ball Valve 3/4 inch 3/4" DN20 2Way 220V Kran Elektrik Motorized Valve. Sumber: Shopee.

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

Specification:
Brand new
Body Material: Brass Forging, Stainless Steel
Valve Ball Material: Stainless Steel
Stem Material: Brass
Seat Material: Teflon
Medium: Cold/hot water, ethylene glycol 60%

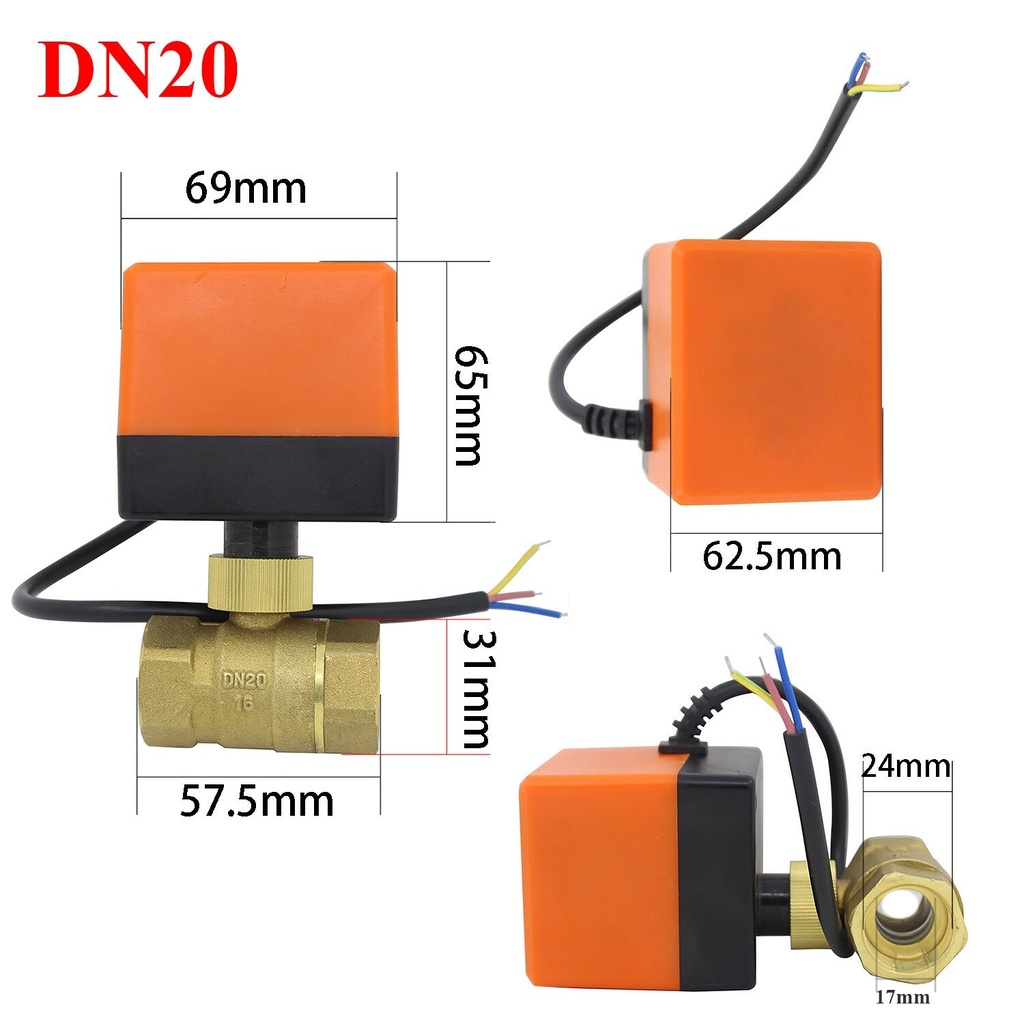

Specification: DN20, 3/4"
Structure forms: Two Ways
Power supply voltage: AC220V
Power consumption: 6W (only when the valves open and close)
Running time: 5 to 15 seconds
Nominal pressure: 1.6MPa
Medium temperature: 2~95
Level of protection: IP65
Connection mode: Pipe thread G

Feature:
DN20(G3/4") 2 way 220V motorized valve
High energy saving.
Waterproof and dirt-proof.
Used in hvac water on-off control system.
Made up of electric drive and body two parts. Drive(actuator) synchronous motor drive, the movement stability; built-in limit switch and fully open or close, the red light and green light at the same time.
Straight flow, large flow, no blocking by the slag.
Actuator is easily disassembled and assembled.
Actuator can be installed after the equipment and pipes are installed.
LED indicates when switch on/off the valve, to detect whether the valve is wholly on/off.
Closed tightly due to high pressure when closing.
Actuator can be assembled in two directions.
Fine workmanship.
High strength and hardness.
Easy to use.
Durable in use.

Package included:
1 x Motorized Valve

Note:
Please allow a little size errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

------
